American Dryer Corp. ADG-410 Parts Manual

1995 thru 1998
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

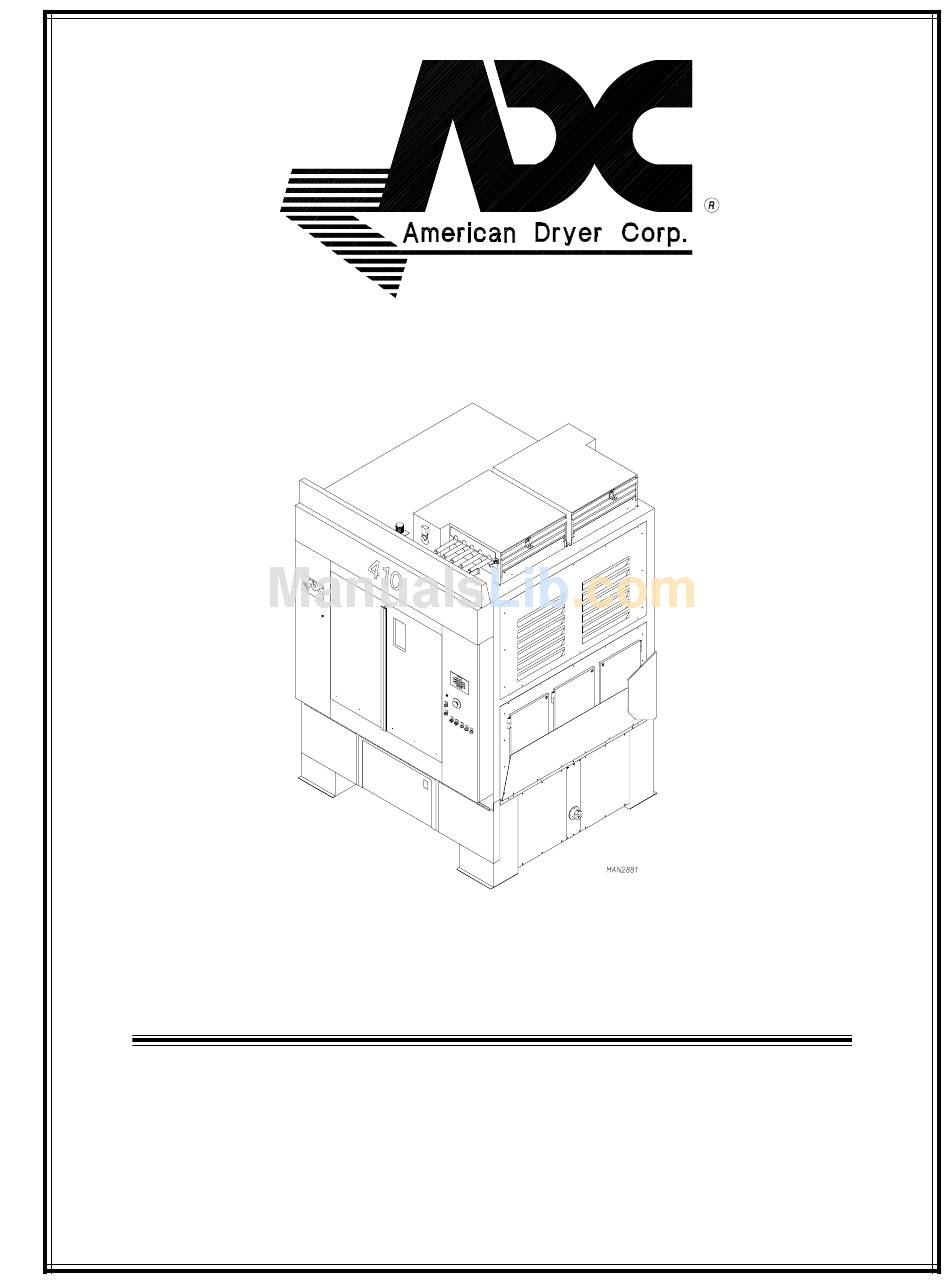

ADG-410
Parts Manual
1995 thru 1998
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9010 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
082896
ADC Part No. 450166
021898WL/tf

Advertisement

Table of Contents
loading

Related Manuals for American Dryer Corp. ADG-410

Summary of Contents for American Dryer Corp. ADG-410

  • Page 1 ADG-410 Parts Manual 1995 thru 1998 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9010 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com 082896 ADC Part No. 450166 021898WL/tf...
  • Page 2 Be sure to check the descriptions of the parts thoroughly before ordering. INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS MUST BE POSTED IN A PROMINENT LOCATION. THE INSTRUCTIONS TO BE POSTED SHALL BE OBTAINED FROM THE LOCAL GAS SUPPLIER. Important MODEL NO. ADG-410...

  • Page 3: Table Of Contents

    Front Panel Assembly, Automatic Door ... 2, 3 Solid Back Panel Assembly ... 4 Automatic Door Pneumatics Assembly ... 5 Left Automatic Load Door Assembly ... 6, 7 Right Automatic Load Door Assembly ... 8, 9 Right Front Control Door Assembly ... 10, 11 Left Control Door Assembly ...
  • Page 4 Front Panel Assembly, Automatic Door NOTE: Same assembly used as Rear Panel assembly for Two-Door Models. American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 5: Front Panel Assembly, Automatic Door

    Front Panel Assembly, Automatic Door NOTE: Same assembly used as Rear Panel assembly for Two-Door Models. Illus. No. Part No. Description 814059 Upper Guard 814058 Middle Guard 881388 Left Control Cabinet 881387 Right Control Cabinet 150510 1/4-20 x 3/4" Hex Head Machine Bolt 153007 1/4"...

  • Page 6: Solid Back Panel Assembly

    NOTE: For 1 Door Models Illus. No. Part No. Description 334615 Solid Back Panel Top Cover 150522 1/4-20 x 1/2" TEK Screw 334616 Solid Back Panel Bottom Cover 150522 1/4-20 x 1/2" TEK Screw 170344 Nylon Back Guide 150311 #10 x 3/4" Hex Head Crimptite Screw 334542 Piston Cover 150309...

  • Page 7: Automatic Door Pneumatics Assembly

    Automatic Door Pneumatics Assembly Illus. No. Part No. Description 150308 #8-32 x 2-1/2" Long Machine Screw 153000 #8 Flat Washer 100432 Cable Cylinder 128978 1/8" NPT x 1/4" Tube Flow Control 143156 1/4" Poly Tee 143154 1/4" Brass Poly Connector 143110 1/4"...
  • Page 8 Left Automatic Load Door Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 9: Left Automatic Load Door Assembly

    Left Automatic Load Door Assembly Illus. No. Part No. Description 881392 Left Automatic Load Door Assembly Complete (includes illus. nos. 1-11) 881391 Left Automatic Load Door ONLY 150112 1/4-20 x 1-1/4" Hex Head Machine Screw 153018 1/4" Flat Washer 153007 1/4"...

  • Page 10: Right Automatic Load Door Assembly

    Right Automatic Load Door Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 11 Right Automatic Load Door Assembly Illus. No. Part No. Description 881390 Right Automatic Load Door Assembly Complete (includes illus. nos. 1-12) 881389 Right Automatic Load Door ONLY 150112 1/4-20 x 1-1/4" Hex Head Machine Screw 153018 1/4" Flat Washer 153007 1/4"...

  • Page 12: Right Front Control Door Assembly

    Illus. No. Part No. Description 122351 Large "EMERGENCY STOP" (Mushroom Head) Button 122419 "EMERGENCY STOP" Nameplate 122360 2-Position Selector Switch 122413 "TILT OFF - TILT ON" Nameplate 123201 Green "CONTROL VOLTAGE ON" Button 122410 Power "ON" Nameplate 123212 Incandescent Bulb - 24 VAC 123204 Red "CONTROL VOLTAGE OFF"...
  • Page 13 Right Front Control Door Assembly (continued) Illus. No. Part No. Description ---------- Selector Switch (refer to Selector Switch, Nameplate, and Mounting Base Chart on page 71) ---------- Nameplate (refer to Selector Switch, Nameplate, and Mounting Base Chart on page 71) 123202 White "Push Button"...

  • Page 14: Left Control Door Assembly

    Illus. No. Part No. Description 160140 Key ONLY for Control Door Lock (#XX4451) 160050 Control Door Lock Less Key (Keyed to #XX4451) 160014 112360 ADC Logo 821334 Left Hand Control Door ONLY * Specify color when ordering American Dryer Corporation Left Control Door Assembly 88 Currant Road / Fall River, MA 02720-4781...

  • Page 15: Lint Basket Assembly

    Lint Basket Assembly Illus. No. Part No. Description 881393 Lint Drawer Assembly Complete (includes illus nos. 1 and 2) 117602 Noise Suppressor Tape (sold by the foot) 814036 Lint Screen 122116 Lint Drawer Switch ONLY 122605 4-Pin Socket Connector ONLY 122701 Socket Terminal ONLY 122801...
  • Page 16 Base Solenoid Junction Box Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 17: Base Solenoid Junction Box Assembly

    Base Solenoid Junction Box Assembly Illus. No. Part No. Description 120651 1/2" N.P.T. 90º Cord Grip (Blue) 120650 1/2" N.P.T. 90º Cord Grip (White) 120914 1/2" N.P.T. Metal Clad Sealing Washer 120915 1/2" N.P.T. Lock Nut 120650 1/2" N.P.T. 90º Cord Grip (White) 120651 1/2"...
  • Page 18 Sprinkler Option Control Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 19: Sprinkler Option Control Panel Assembly

    Sprinkler Option Control Panel Assembly Illus. No. Part No. Description 120750 Ground Terminal Block 136050 1 Amp Slo-Blo Fuse (for 208/240 volt models) 136057 1/2 Amp Slo-Blo Fuse (for 380-460 volt models) 120999 Blank Marking Tag 120756 1/4" Fuse Terminal Block with L.E.D. 136050 1 Amp Slo-Blo Fuse (for 208/240 volt models) 136057...
  • Page 20 Right Hand Electrical Panel Wireway Channels American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 21: Right Hand Electrical Panel Wireway Channels

    Right Hand Electrical Panel Wireway Channels Illus. No. Part No. Description 334611 Right Hand Electrical Panel ONLY 121429 2" Deep x 1" Wide Wireway* 121422 1" Wireway Cover* 121429 2" Deep x 1" Wide Wireway* 121422 1" Wireway Cover* 121429 2"...

  • Page 23: Top Of Right Hand Electrical Panel

    Top of Right Hand Electrical Panel For models mfd. as of August 26, 1997 Illus. No. Part No. Description 132444 3HP 110V Control Relay 120721 Fused Disconnect Terminal Block (for 380, 460, 575V ONLY) Fused Disconnect Terminal Block (for 2808, 240V ONLY) 120997 20 Amp Fused Disconnect Terminal Block 120999...

  • Page 24: For Models Mfd. Prior To August 26, 1997

    Illus. No. Part No. Description 120765 End Stop 120721 Fused Disconnect Terminal Block (for 380, 460, 575 volts ONLY) Fused Disconnect Terminal Block (for 208, 240 volts ONLY) 120999 Blank Marking Tag (for 380, 460, 575 volts ONLY) 120999 Blank Marking Tag (for 208, 240 volts ONLY) --------- Fuse (for 208, 240 volts ONLY) ---------...
  • Page 25 Top of Right Hand Electrical Panel For models mfd. prior to August 26, 1997 Illus. No. Part No. Description --------- Fuse (for 380 volts ONLY) Fuse (for 480 volts ONLY) Fuse (for 575 volts ONLY) --------- Fuse (for 380 volts ONLY) Fuse (for 480 volts ONLY) Fuse (for 575 volts ONLY) ---------...

  • Page 27: Bottom Of Right Hand Electrical Panel

    Bottom of Right Hand Electrical Panel Illus. No. Part No. Description 120768 DIN Mounting Rail (Sold by the inch) 120765 End Stop 150309 10-16 x 1/2" Hex Head Crimptite Screw 137913 Micro One Expansion Computer 137914 Computer Interface Cable 881029 Micro One Computer (Programmed) 120765 End Stop...
  • Page 28 All Door, All Tilt, Base Electrical Junction Box Control Panel Assembly Illus. No. Part No. Description 153004 3/8" Flat Washer 153005 3/8" Lock Washer 152005 3/8-16 Hex Nut 120768 Din Mounting Rail (Sold by the inch) 131956 56-80 Amp Manual Starter (Blower Motor) (for 208/230 volt models) 131957 25-40 Amp Manual Starter (Blower Motor)

  • Page 29: All Door, All Tilt, Base Electrical Junction Box Control Panel Assembly

    All Door, All Tilt, Base Electrical Junction Box Control Panel Assembly Illus. No. Part No. Description 132384 Auxiliary Contact Block 150300 #10 x 1/2" Hex Washer TEK Screw 120765 End Stop 131957 25-40 Amp Manual Starter (Drive Motor) (for 208 volt models) 131969 20-25 Amp Manual Starter (Drive Motor) (for 230 volt models)

  • Page 30: Drive Motor Assembly

    Illus. No. Part No. Description 101152 SH x 1-3/8" Bushing 101187 2B x 3.6 Sheave (60 Hz Models) 101195 2B x 4.4 Sheave (50 Hz Models) 100143 A 29 Belt 100704 1/4" x 1/4" x 1-3/4" Key 181023 7-1/2 HP 50/60 Hz Drive Motor 153004 3/8"...

  • Page 31: Drive Motor Assembly

    Drive Motor Assembly For models mfd. prior to November 14, 1997 Illus. No. Part No. Description 814066 Motor Adjustment Plate ONLY 334595 Motor Threaded Block 150609 1/2-13 x 4-1/2" Long Hex Head Bolt 814065 Motor Adjustment Bracket 153026 1/2" Lock Washer 152011 1/2-13 Hex Nut 153005...

  • Page 32: Drive Shaft Assembly

    Illus. No. Part No. Description 820600 Drive Wheel Assembly 101191 RI x 2" Taper Lock Bushing 100234 2" Pillow Block Bearing 153016 5/8" Flat Washer 150627 5/8-11 x 5" Hex Head Bolt 101022 2" Taper Bushing for Speed Reducer 153016 5/8"...

  • Page 33: Drive Shaft Assembly For Models Mfd. Prior To November 14, 1997

    Drive Shaft Assembly For models mfd. prior to November 14, 1997 Illus. No. Part No. Description 101191 Wheel Taper Lock Bushing 820600 Drive Wheel Assembly with Hub 100712 1/2" x 1/2" x 3" Long Key 100234 Pillow Block Bearing 150627 5/8-11 x 5"...
  • Page 34 Speed Reducing Idler Shaft Assembly For models mfd. prior to November 14, 1997 American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 35: Speed Reducing Idler Shaft Assembly For Models Mfd. Prior To November 14, 1997

    Speed Reducing Idler Shaft Assembly For models mfd. prior to November 14, 1997 Illus. No. Part No. Description 152011 1/2-13 Hex Nut 153026 1/2" Lock Washer 153011 1/2" Flat Washer 150606 1/2-13 x 2" Long Hex Head Bolt 153026 1/2" Lock Washer 153011 1/2"...

  • Page 36: Tumbler And Idler Shaft Assembly

    Illus. No. Part No. Description 881399 Tumbler 820600 Drive Wheel Assembly 101191 Wheel Taper Lock Bushing 170511 1/8-27 N.P.T. Grease Fitting 150627 5/8-11 x 5" Long Bolt 153016 5/8" Flat Washer 880882 " Pillow Block Bearing 152011 1/2-13 Hex Nut 153026 1/2"...

  • Page 37: Rotational Sensor Assembly Diagram

    Rotational Sensor Assembly Diagram Illus. No. Part No. Description 102102 Tumbler Sensor Magnet 154200 5/32" Pop Rivet 332750 Rotational Sensor Mounting Bracket 881383 Rotational Sensor Assembly 881384 Rotational Sensor Harness Telephone: (508) 678-9010 Fax: (508) 678-9447...

  • Page 38: Fan Motor Assembly

    Fan Motor Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 39 Fan Motor Assembly Illus. No. Part No. Description 152053 3/4-16 Left Hand Jam Nut 153071 2-3/4" O.D. Fan Washer 100661 22-1/4" Dia. Blower Wheel 100710 3/8" x 3/8" x 3" Long Key 334445 Shaft 814005 Motor Mount ONLY 153004 3/8" Flat Washer 153005 3/8"...

  • Page 40: Temperature Sensor Bracket

    Illus. No. Part No. Description 814008 Sensor Bracket Assembly 814009 Sensor Bracket Assembly Complete (includes illus. nos. 1 through 10) 150000 #6-32 x 1/4" Slotted Round Head Machine Screw 153010 #6 Star Washer 130112 L-225 Thermostat 152000 #6-32 Hex Nut 121028 1/4"...

  • Page 41: Dsi Module Assembly

    DSI Module Assembly Illus. No. Part No. Description 880815 DSI Module 50/60 Hz 820100 DSI Module Mount Assembly ONLY 121400 Universal Bushing 150522 1/4-20 x 1/2" Self Tapping Hex Head Machine Screw 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 153010 #6 Star Washer 152000...
  • Page 42 Front Burner Box Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 43: Front Burner Box Assembly

    Front Burner Box Assembly Illus. No. Part No. Description 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 334086 Manifold Rest 141110 Burner Tube 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 334083 Front Burner Tube Rest 150301...
  • Page 44 Rear Burner Box Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 45: Rear Burner Box Assembly

    Rear Burner Box Assembly Illus. No. Part No. Description 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 334086 Manifold Rest 141110 Burner Tube 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 150301 #8-18 x 7/16" Phillips Pan Head TEK Screw 334084 Rear Burner Tube Rest 150301...

  • Page 46: Sail Switch Assembly

    Illus. No. Part No. Description 105500 Sail Switch Actuator Rod 332689 Sail Switch Damper 154002 1/8" Push On Fastener 802800 Sail Switch Box with Cover and Bracket ONLY (items 4, 8, and 9) 881376 Sail Switch Box Assembly Complete (includes illus. nos. 1 through 4 and 6 through 10) 150300 #10 x 1/2"...

  • Page 47: Air Jet Assembly

    Air Jet Assembly Illus. No. Part No. Description 332531 Air Jet Mounting Plate 153007 1/4" Lock Washer 152002 1/4-20 Hex Nut 143277 1/4" Comp. x 1/8" M.P.T. Connector 143100 1/4" Aluminum Tubing (Sold by the foot) 143271 1/4" Comp. Union Tee 143259 Bulkhead Fitting, 1/4"...

  • Page 48: Gas Piping Assembly

    Gas Piping Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 49 Gas Piping Assembly Illus. No. Part No. Description 142931 2" x 1-1/2" Double Tapped Bushing 150504 5/16-18 x 1" Long Hex Nut 142514 2" Floor Flange 153002 5/16" Lock Washer 152004 5/16-18 Hex Nut 142569 1-1/2" x 18" Long Nipple 142611 1-1/2"...
  • Page 50 Rear Manifold, 5 Port 141241 Front Manifold, 5 Port 140840 #1 Burner Orifice (natural gas) ONLY 140821 #28 Burner Orifice (liquid propane gas) ONLY 881425 ADG-410 L.P. Conversion Kit American Dryer Corporation Gas Piping Assembly 88 Currant Road / Fall River, MA 02720-4781...

  • Page 51: Tilt Switch Assembly

    Tilt Switch Assembly Illus. No. Part No. Description 881252 Tilt Switch Assembly Complete (includes illus. nos. 1, 2, and 4) 122365 Limit Switch Rotary Head ONLY 122369 Tilt Switch Arm 150211 10-32 x 2" Phillips Pan Head Machine Screw 122367 Tilt Switch Body 153009 #10 Star Washer...

  • Page 52: Tilt Piston Mount Assembly

    Illus. No. Part No. Description 100562 Piston (5" Bore, 15" Stroke) 143283 3/8" Poly x 3/8" M.P.T. Straight Connector 143221 3/8" Poly Tee, Brass 143120 3/8" Poly Tubing (Sold by the foot) 143213 3/8" Poly x 3/8" M.P.T. Elbow, Brass 334309 Cylinder Pin Nylon Bumper 150435...

  • Page 53: Post Assembly

    Post Assembly Illus. No. Part No. Description 100487 3/4" Diameter Pin with Cotter Pin 881529 Post Assembly 100553 Rod Eye 154315 1/4-20 x 1" Socket Head Set Screw 334309 Nylon Bumper 150435 3/8-16 x 3" Socket Head Cap Screw 331543 1"...

  • Page 54: Pneumatic Assembly

    Illus. No. Part No. Description 152000 #6-32 Hex Nut 153010 #6 Star Washer 330987 Valve Mounting Bracket 150522 1/4-20 x 1/2" Hex Head TEK Screw 143289 1/4" Poly x 1/8" M.P.T. Connector 100498 3 Way Valve 150002 #6-32 x 1" Phillips Round Head Machine Screw 100520 1/8"...

  • Page 55: For 2 Automatic Doors

    Pneumatic Assembly For 2 Automatic Doors Illus. No. Part No. Description 143115 1/4" Poly Flow Tubing (Sold by the foot) 143289 1/4" Poly x 1/8" MPT Connector 100468 4-Way Value 24 Volt 100520 1/8" Muffler 143268 1/8" Brass Street Elbow 143238 1/8"...

  • Page 56: Pneumatic Panel Assembly

    Pneumatic Panel Assembly For One-Way Tilt Models American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 57 Pneumatic Panel Assembly For One-Way Tilt Models Illus. No. Part No. Description 814011 Pneumatic Plate ONLY 100479 3/8" Filter/Regulator Gauge (for models mfd. as of July 14, 1997) 100516 Filter/Regulator/Lubricator Gauge (for models mfd. prior to July 14, 1997) 150512 1/4-20 x 1/2"...

  • Page 58: For Two-Way Tilt Models

    Pneumatic Panel Assembly For Two-Way Tilt Models American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 59 Pneumatic Panel Assembly For Two-Way Tilt Models Illus. No. Part No. Description 814011 Pneumatic Plate ONLY 100479 3/8" Filter/Regulator Gauge (for models mfd. as of July 14, 1997) 100516 Filter/Regulator/Lubricator Gauge (for models mfd. prior to July 14, 1997) 150512 1/4-20 x 1/2"...
  • Page 60 Optional Sprinkler Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 61: Optional Sprinkler Assembly

    Optional Sprinkler Assembly Illus. No. Part No. Description 881426 1/4" Hex Plug (1/4" Dia. Hole Drilled Through Center) 142926 1" x 1/4" Reducing Bushing 142548 1" x 90º Elbow 142579 1" x 6" Long Nipple 142508 1" Tee 142724 1" x 2" Long Nipple 142548 1"...
  • Page 62 Sprinkler Temperature Probe Junction Box Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 63: Sprinkler Temperature Probe Junction Box Assembly

    Sprinkler Temperature Probe Junction Box Assembly Illus. No. Part No. Description 331877 Temperature Sensor Mounting Plate 150523 1/4-20 x 3/4" Hex Head TEK Screw 881227 RTD Temperature Probe Assembly (includes illus. nos. 3, 4, and 8) 143296 1/4" Compression Fitting 120652 1/2"...

  • Page 64: Steam Coil Assembly

    Steam Coil Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 65 Steam Coil Assembly Illus. No. Part No. Description 165034 Steam Coil Assembly 150523 1/4-20 x 3/4" Hex Head TEK Screw 153007 1/4" Lock Washer 152002 1/4-20 Hex Nut 820321 Steam Damper Hinge Assembly 115995 Steam Damper Gasket (sold by the inch) 881661 Steam Damper Assembly (includes illus.

  • Page 66: Sprinkler Solenoid Assembly

    Illus. No. Part No. Description 100556 Sprinkler Solenoid 120 Volt 153018 1/4" Flat Washer 100462 3/8" Valve Muffler 143283 3/8" Poly x 3/8" MPT Brass Connector 143120 3/8" Poly Flow Tubing (sold by the foot) 143151 1/4" Compression to 3/8" MPT Brass Elbow 153007 1/4"...

  • Page 67: Tumbler Retaining Wheel Mount Assembly

    Tumbler Retaining Wheel Mount Assembly Illus. No. Part No. Description 152005 3/8-16 Hex Nut 153005 3/8" Lock Washer 820566 Retaining Wheel Assembly 153062 Spherical Washer 153004 3/8" Flat Washer 150438 3/8-16 x 3-1/4" Long Bolt Telephone: (508) 678-9010 Fax: (508) 678-9447...

  • Page 68: Guard Assemblies

    Guard Assemblies For Two-Way Tilt Models American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 69 Guard Assemblies For Two-Way Tilt Models Illus. No. Part No. Description 881396 Front Guard Door ONLY 150300 #10 x 1/2" Hex Head TEK Screw 170607 Door Magnet 881397 Front Guard Assembly Complete (includes illus. nos. 1 through 6) 170348 Front Tilt Guard Glide 150412 3/4"...
  • Page 70 Side Panel Assemblies American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 71: Side Panel Assemblies

    Side Panel Assemblies Illus. No. Part No. Description 150522 1/4-20 x 1/2" TEK Screw 814032 Top Left Panel 814033 Bottom Hinged Door Assembly 150522 1/4-20 x 1/2" TEK Screw 334538 Side Shield Assembly 150512 1/4-20 x 1/2" Long Hex Head Bolt 153007 1/4"...

  • Page 72: Front Base & Front Top Panel Assemblies

    Illus. No. Part No. Description 334542 Piston Cover 150415 Crimptite Sheet Metal Screw 334671 Right Front Base Panel 150522 1/4-20 x 1/2" TEK Screw 332681 Right Gusset for Top Front Panel 150522 1/4-20 x 1/2" TEK Screw 334546 Top Front Panel 332680 Left Gusset for Top Front Panel 150522...

  • Page 73: End Of Cycle Light Assembly

    End of Cycle Light Assembly Illus. No. Part No. Description 151001 #8-32 Pal Nut 150309 #10-16 x 1/2" Hex Head Crimptite Screw 150108 #8-32 x 1/2" Phillips Head Machine Screw 821480 Cycle Light Bracket (for Steam Models ONLY) 152001 #8-32 Hex Nut 153012 #8 Star Washer 332850...
  • Page 74 t l i “ ” t l i “ ” 1 “ t l i ” “ t l i ”...
  • Page 75 ADC 450166 1- 09/05/96-50 2* 03/05/98-50...
