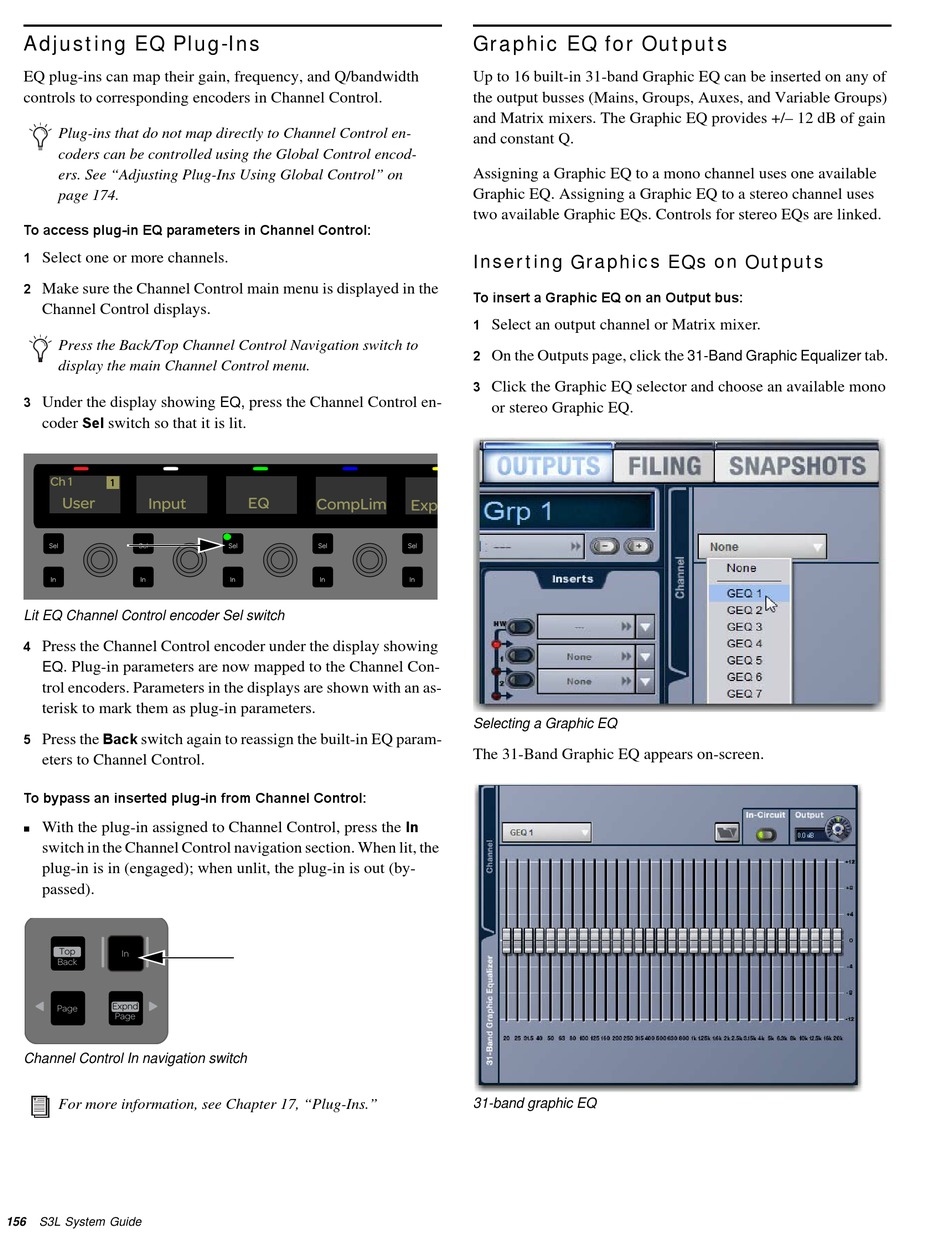

Adjusting EQ Plug-Ins

EQ plug-ins can map their gain, frequency, and Q/bandwidth
controls to corresponding encoders in Channel Control.
Plug-ins that do not map directly to Channel Control en-
coders can be controlled using the Global Control encod-
ers. See "Adjusting Plug-Ins Using Global Control" on
page 174.
To access plug-in EQ parameters in Channel Control:
1
Select one or more channels.
2
Make sure the Channel Control main menu is displayed in the
Channel Control displays.
Press the Back/Top Channel Control Navigation switch to
display the main Channel Control menu.
3
Under the display showing
Sel
coder switch so that it is lit
Ch 1
1
User Input
Lit EQ Channel Control encoder Sel switch
4
Press the Channel Control encoder under the display showing
EQ . Plug-in parameters are now mapped to the Channel Con-
trol encoders. Parameters in the displays are shown with an as-
terisk to mark them as plug-in parameters.
Back
5
Press the switch again to reassign the built-in EQ param-
eters to Channel Control.
To bypass an inserted plug-in from Channel Control:
With the plug-in assigned to Channel Control, press the

switch in the Channel Control navigation section. When lit, the
plug-in is in (engaged); when unlit, the plug-in is out (by-
passed).
Top
In
Back
Expnd
Page
Page
Channel Control In navigation switch
For more information, see Chapter 17, "Plug-Ins."
156 S3L System Guide
EQ, press the Channel Control en-
.
EQ
CompLim

Graphic EQ for Outputs

Up to 16 built-in 31-band Graphic EQ can be inserted on any of
the output busses (Mains, Groups, Auxes, and Variable Groups)
and Matrix mixers. The Graphic EQ provides +/– 12 dB of gain
and constant Q.
Assigning a Graphic EQ to a mono channel uses one available
Graphic EQ. Assigning a Graphic EQ to a stereo channel uses
two available Graphic EQs. Controls for stereo EQs are linked.
Inserting Graphics EQs on Outputs
To insert a Graphic EQ on an Output bus:
1
Select an output channel or Matrix mixer.
2
On the Outputs page, click the
3 Click the Graphic EQ selector and choose an available mono
or stereo Graphic EQ.
Exp
Selecting a Graphic EQ
The 31-Band Graphic EQ appears on-screen.
In
31-band graphic EQ
tab.
31-Band Graphic Equalizer
