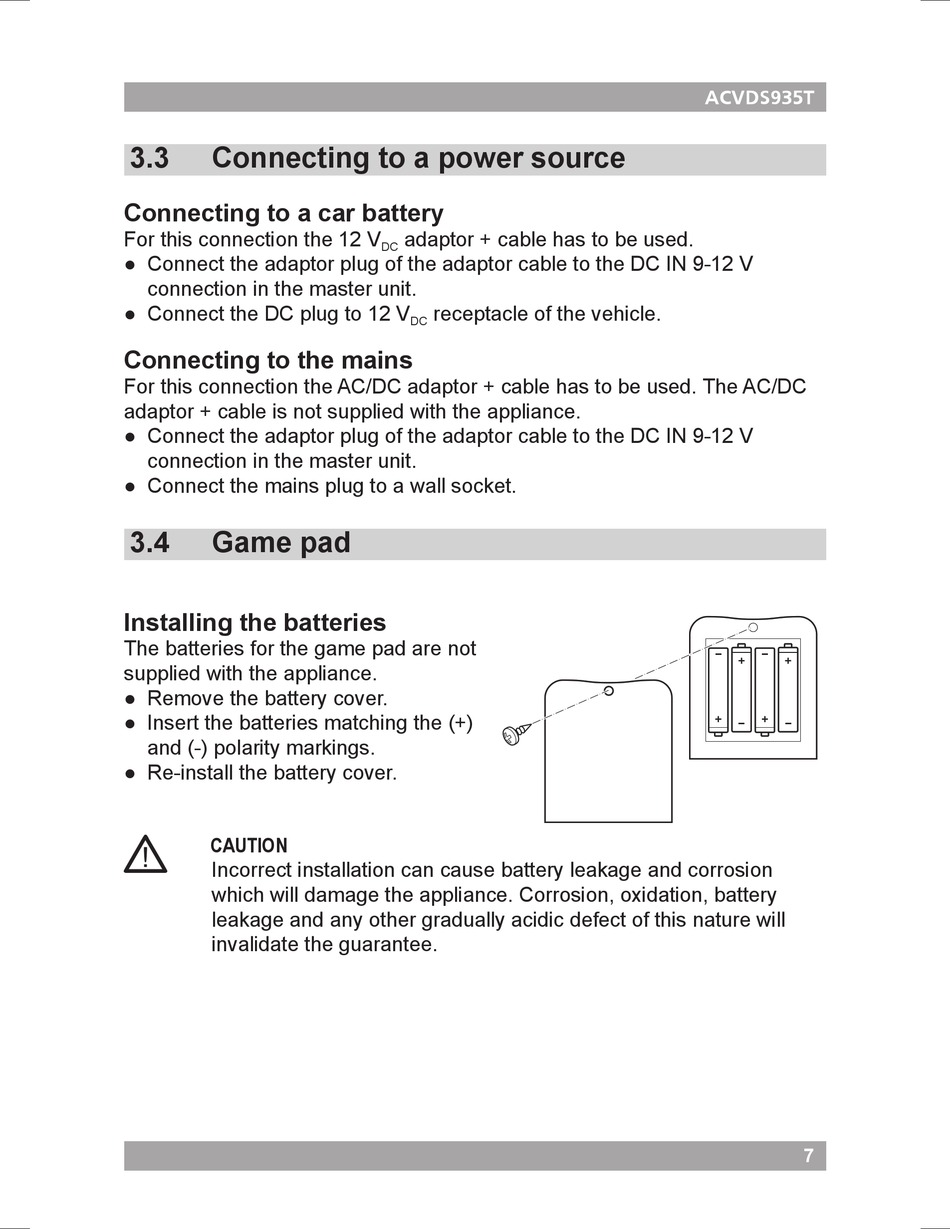

3.3

Connecting to a power source

Connecting to a car battery
For this connection the 12 V
● Connect the adaptor plug of the adaptor cable to the DC IN 9-12 V
connection in the master unit.
● Connect the DC plug to 12 V
Connecting to the mains
For this connection the AC/DC adaptor + cable has to be used. The AC/DC
adaptor + cable is not supplied with the appliance.
● Connect the adaptor plug of the adaptor cable to the DC IN 9-12 V
connection in the master unit.
● Connect the mains plug to a wall socket.
3.4

Game pad

Installing the batteries
The batteries for the game pad are not
supplied with the appliance.
● Remove the battery cover.
● Insert the batteries matching the (+)
and (-) polarity markings.
● Re-install the battery cover.
CAUTION
!
Incorrect installation can cause battery leakage and corrosion
which will damage the appliance. Corrosion, oxidation, battery
leakage and any other gradually acidic defect of this nature will
invalidate the guarantee.
adaptor + cable has to be used.
DC
receptacle of the vehicle.
DC
ACVDS935T ACVDS935T
7 7
