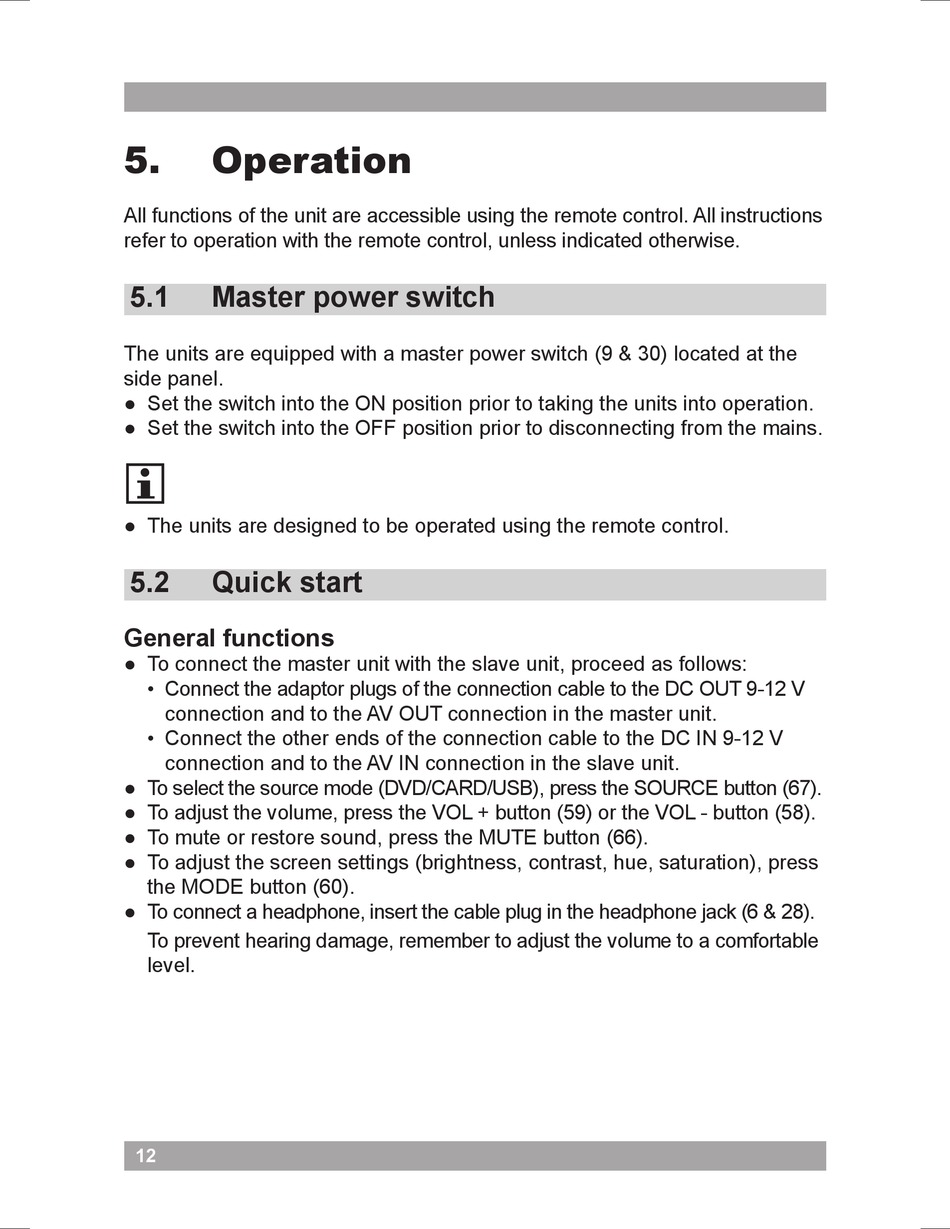

5.

Operation

All functions of the unit are accessible using the remote control. All instructions
refer to operation with the remote control, unless indicated otherwise.
5.1

Master power switch

The units are equipped with a master power switch (9 & 30) located at the
side panel.
● Set the switch into the ON position prior to taking the units into operation.
● Set the switch into the OFF position prior to disconnecting from the mains.
i
● The units are designed to be operated using the remote control.
5.2

Quick start

General functions
● To connect the master unit with the slave unit, proceed as follows:
• Connect the adaptor plugs of the connection cable to the DC OUT 9-12 V
connection and to the AV OUT connection in the master unit.
• Connect the other ends of the connection cable to the DC IN 9-12 V
connection and to the AV IN connection in the slave unit.
● To select the source mode (DVD/CARD/USB), press the SOURCE button (67).
● To adjust the volume, press the VOL + button (59) or the VOL - button (58).
● To mute or restore sound, press the MUTE button (66).
● To adjust the screen settings (brightness, contrast, hue, saturation), press
the MODE button (60).
● To connect a headphone, insert the cable plug in the headphone jack (6 & 28).
To prevent hearing damage, remember to adjust the volume to a comfortable
level.
12
