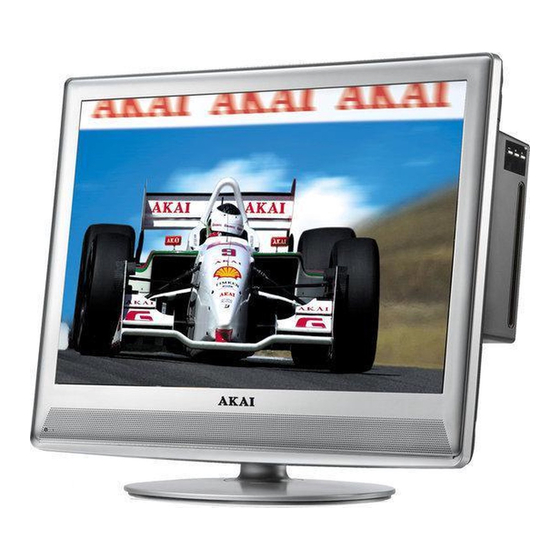

Akai ALD1915H User Manual
Lcd tv/dvd combi
Hide thumbs
Also See for ALD1915H:
- User manual (26 pages) ,
- User manual (17 pages) ,
- User manual (25 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Akai ALD1915H
Summary of Contents for Akai ALD1915H

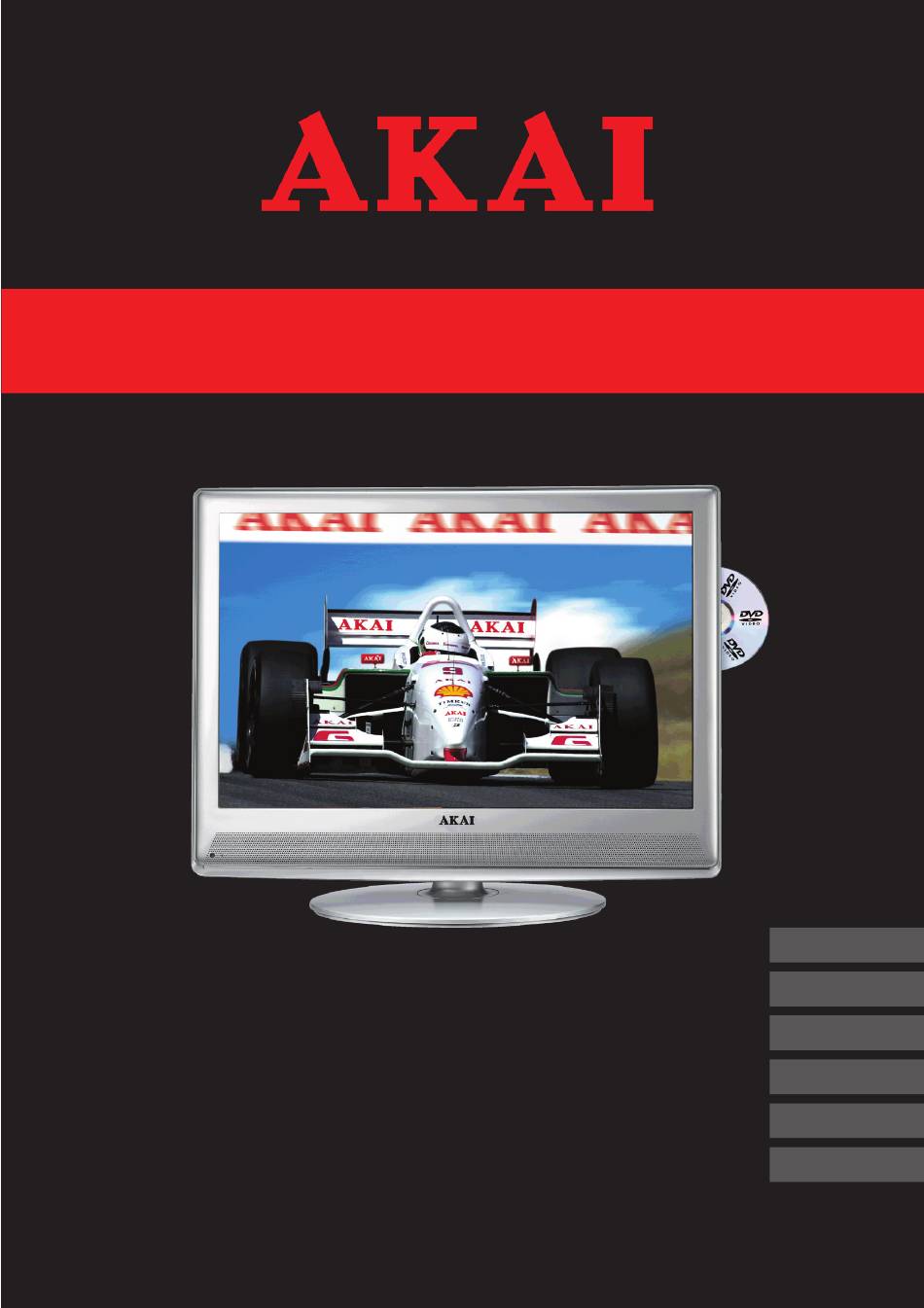

- Page 1 LCD TV/DVD Combi ALD1915H/ALD2215H User manual NL 24 Gebruiksaanwijzing FR 47 Manuel de l’utilisateur ES 70 Manual de instrucciones DE 93 Gebrauchsanleitung Οδηγίες χρήσεως EL 118...
-
Page 2: Table Of Contents
Table of contents Safety ................3 Intended use ..............3 Labels in this manual ............3 General safety instructions ..........3 Preparations for use ........... 4 Unpacking ................4 Package contents ............5 Installation ..............5 Mounting the foot .............6 Wall mounting ..............6 Connecting random equipment ........7 Connecting to the mains ..........8 Remote control..............8 Functions .............. -
Page 3: Safety
15-series Safety Intended use The LCD TV/DVD Combi plays film and photos from DVD. The appliance also plays music from CD. The appliance can also be used as a monitor for a personal computer. Read the manual carefully before the first use. DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system that the appliance will operate only with corresponding disc of the same regional code. -
Page 4: Preparations For Use
CAUTION Do not spill any liquid on the appliance. WARNING Do not insert any objects in the ventilation holes. CAUTION Do not block the ventilation holes. This appliance is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. -
Page 5: Package Contents
15-series Package contents The following items are included in the received package: LCD TV/DVD Combi Foot Set of screws AC/DC adaptor + cable Remote control Batteries (AAA) Operator manual If any item is missing, please contact your reseller. Installation ● Install the appliance in the configuration or your choice. - If the appliance is to be placed on its foot, read the paragraph "Mounting the foot". -
Page 6: Mounting The Foot
This appliance is equipped with rubber feet to prevent it from moving. The feet are made from non-migrating material specially formulated to avoid leaving any marks or stains on furniture. However, certain types of furniture polishes, wood preservatives or cleaning sprays cause the rubber to soften and leave marks or a residue on the furniture, and potentially risk the surface to become damaged. -
Page 7: Connecting Random Equipment
15-series Connecting random equipment The appliance includes various options for permanent connection of random equipment. Suitable cables can be purchased at your reseller. Audio connections (input) ● L/R AUDIO: Connect a suitable cable to the L/R channels of the AUDIO connection. Video connections The appliance has the following video outputs (in order of preference):... -
Page 8: Connecting To The Mains
Connecting to the mains ● Connect the adaptor plug on the adaptor cable to the DC-12V connection. ● Connect the mains plug to a wall socket. Remote control Install batteries ● Remove the battery cover. ● Insert the batteries matching the (+) and (-) polarity markings. -
Page 9: Functions
15-series Functions LCD TV/DVD Combi 13121110 9 8 7 MENU SOURCE STANDBY Back panel Remote sensor LED indicator lamp 14 Headphone jack DVD slot Open/close (DVD) button Stop button Play/pause button Top panel STANDBY button Source button Menu button 10 PROG + button 11 PROG - button 12 VOL + button 13 VOL - button... -
Page 10: Remote Control
Remote control General functions 15 Digit buttons (0-10+) 16 Q.VIEW button 17 MUTE button 18 VOL - button 19 ASPECT button 20 PROG - button 21 SM button 22 VOL + button 23 MENU button 24 PROG + button 25 SOURCE button 26 SWAP button 27 SLEEP button 28 DISPLAY button... - Page 11 15-series 15-series Teletext functions 31 Coloured buttons 32 SIZE button 33 REVEAL button 34 INDEX button 35 TEXT button 36 SUB PAGE button 37 STOP button 38 MIX button DVD functions 39 OPEN/CLOSE button 40 NEXT button 41 PREV button 42 REPEAT button 43 SLOW button 44 ANGLE button...
-
Page 12: Operation
Operation All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. Quick start General functions ● To switch on the appliance, press the POWER button (30). To switch back to the standby mode, press the POWER button (30) again. -
Page 13: Tv Setup Menu Operation
15-series - Press VOL +/- to start the search program that sets the available channels automatically. - Press the MENU button to store the settings and exit. ● To select a channel, press in the number with the digit buttons (39). Alternatively, use the PROG +/- buttons (20/24) to zap through the channel list. - Page 14 ● PICTURE MODE: to set the picture mode (NORMAL/DYNAMIC/SOFT/ CUSTOM) Sound menu ● SOUND MODE: to set the sound mode (NORMAL/NEWS/MUSIC/CUSTOM) ● BASS: to adjust the bass. ● TREBLE: to adjust the treble. ● BALANCE: to adjust the balance. Tune menu The TUNE menu only works in TV mode.
-
Page 15: Tv-Functions
15-series TV-functions Using the SWAP function This function is used to adjust the channel list order. ● Press the SWAP button (26). A content menu will display on the TV screen. ● Press the volume buttons to select a desired channel, and use the program button down to highlight the next entry. - Page 16 ● To pause playback, press the PLAY/PAUSE button (56) once; to resume playback, press the button again. ● To stop playback temporarily, press the STOP button (57) once. Press the button again to stop playback permanently, or press the PLAY/PAUSE button (56) to resume playback.
-
Page 17: Dvd Setup Menu Operation
15-series The possible entries for DVD are: - Disc time - Chapter - Title - Chapter time - Title time The possible entries for CD are: - Track time - Specific track ● Press the digit buttons to set a selection. Using the PROGRAM function ●... - Page 18 General setup page ● In the TV DISPLAY section, press the arrow buttons to choose pan and scan display (Normal/Ps), letterbox display (Normal/Lb) or widescreen display (Wide). ● In the ANGLE MARK section, press the arrow buttons to switch this function ON or OFF.
-
Page 19: Pc Monitor Settings
15-series LANGUAGES ● In the AUDIO section, choose the audio language. ● In the SUBTITLE section, choose the subtitle language. ● In the DISC MENU section, choose the language for the disc menu. PARENTAL ● Set a rating for movies played by the appliance. Movies rated higher than the level set for the parental lock can not be viewed. -
Page 20: Cleaning And Maintenance
Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. ● Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. Handle and care of a disc ●... - Page 21 15-series DVD/CD Trouble Action No playback There is no disc inserted. Load a disc in the appliance. Disc is loaded label facing forward. Place the disc with the label facing backward. Rating level of the disc is higher than the rating level setting of the appliance.
-
Page 22: Technical Data
Technical data ALD 1915H ALD2215H Parameter Value Value Voltage 100 ~ 240V / 50 ~ 60 Hz 100 ~ 240V / 50 ~ 60 Hz Power consumption 40 W 50 W Standby power consumption 0,8 W 0,9 W Max power output 2 x 3 W (RMS) 2 x 3 W (RMS) Headphones output impedance 32 Ω... -
Page 23: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu...
