Carrier 24ANB1 Infinity Product Data

Infinity 21 2-stage air conditioner with puron refrigerant 2 to 5 nominal tons infinity series
Hide thumbs Also See for 24ANB1 Infinity:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Wiring Diagram

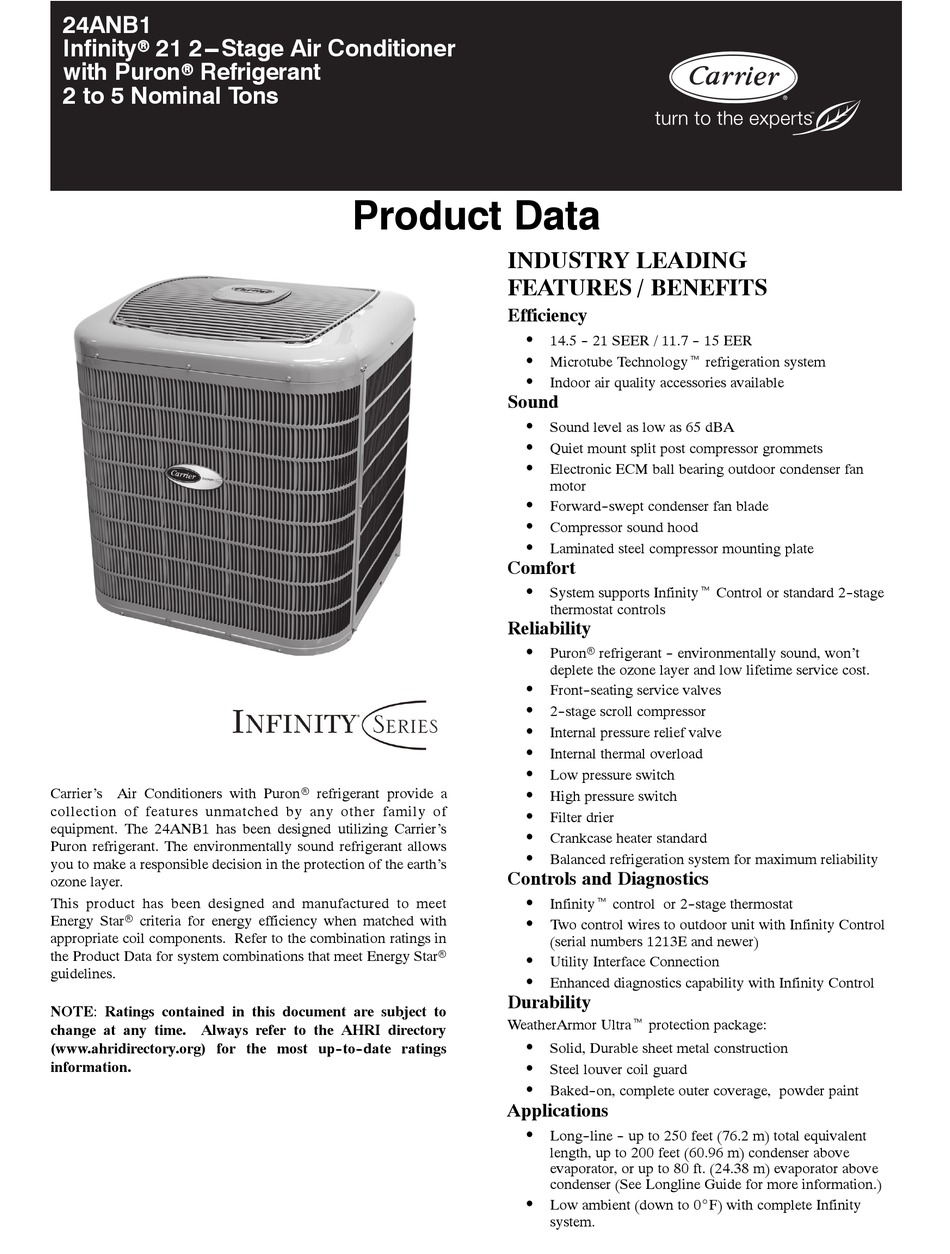

24ANB1
Infinityr 21 2---Stage Air Conditioner
with Puronr Refrigerant
2 to 5 Nominal Tons
Carrier's Air Conditioners with Puronr refrigerant provide a
collection of features unmatched by any other family of
equipment. The 24ANB1 has been designed utilizing Carrier's
Puron refrigerant. The environmentally sound refrigerant allows
you to make a responsible decision in the protection of the earth's
ozone layer.
This product has been designed and manufactured to meet
Energy Starr criteria for energy efficiency when matched with
appropriate coil components. Refer to the combination ratings in
the Product Data for system combinations that meet Energy Starr
guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
S
S
S
S
S
Comfort
S
Reliability
S
S
S
S
S
S
S
S
S
S
Controls and Diagnostics
S
S
S
S
Durability
WeatherArmor Ultrat protection package:
S
S
S
Applications
S
S
14.5 - - 21 SEER / 11.7 - - 15 EER
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 65 dBA
Quiet mount split post compressor grommets
Electronic ECM ball bearing outdoor condenser fan
motor
Forward- -swept condenser fan blade
Compressor sound hood
Laminated steel compressor mounting plate
System supports Infinityt Control or standard 2- -stage
thermostat controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime service cost.
Front- -seating service valves
2- -stage scroll compressor
Internal pressure relief valve
Internal thermal overload
Low pressure switch
High pressure switch
Filter drier
Crankcase heater standard
Balanced refrigeration system for maximum reliability
Infinityt control or 2- -stage thermostat
Two control wires to outdoor unit with Infinity Control
(serial numbers 1213E and newer)
Utility Interface Connection
Enhanced diagnostics capability with Infinity Control
Solid, Durable sheet metal construction
Steel louver coil guard
Baked- -on, complete outer coverage, powder paint
Long- -line - - up to 250 feet (76.2 m) total equivalent
length, up to 200 feet (60.96 m) condenser above
evaporator, or up to 80 ft. (24.38 m) evaporator above
condenser (See Longline Guide for more information.)
Low ambient (down to 0_F) with complete Infinity
system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24ANB1 Infinity and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carrier 24ANB1 Infinity

Summary of Contents for Carrier 24ANB1 Infinity

  • Page 1: Product Data

    2- -stage scroll compressor Internal pressure relief valve Internal thermal overload Low pressure switch Carrier’s Air Conditioners with Puronr refrigerant provide a High pressure switch collection of features unmatched by any other family of Filter drier equipment. The 24ANB1 has been designed utilizing Carrier’s Crankcase heater standard Puron refrigerant.

  • Page 2: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE Product Product Tier Major SEER Cooling Variations Open Open Voltage Minor Series Family Series Capacity Series 0, 1, 2... 24=AC A=RES AC B=Puron 1=21 A=Standard 0=Not 0=Not 3=208--- 230--- 1 Infinity SEER Defined Defined Nominal the environmentally sound refrigerant Use of the AHRI Certified TM Mark indicates a manufacturer’s...
  • Page 3 REFRIGERANT PIPING LENGTH LIMITATIONS Liquid Line Sizing and Maximum Total Equivalent Lengths for Cooling Only Systems with Puronr Refrigerant The maximum allowable length of a residential split system depends on the liquid line diameter and vertical separation between indoor and outdoor units.

  • Page 4: Physical Data

    LONG LINE APPLICATIONS An application is considered Long Line, when the refrigerant level in the system requires the use of accessories to maintain acceptable refrigerant management for systems reliability. See Accessory Usage Guideline table for required accessories. Defining a system as long line depends on the liquid line diameter, actual length of the tubing, and vertical separation between the indoor and outdoor units.

  • Page 5: Electrical Data

    ELECTRICAL DATA Unit Size --- LENGTH LENGTH OPER VOLTS* COMPR WIRE WIRE FUSE** or V/PH Voltage, ft. (m)} ft. (m)} SIZE{ SIZE{ CKT BRK Series AMPS 60 C 75 C 60 C 75 C 24--- 31 58.3 11.1 15.7 50 (15.2) 48 (14.6) 36--- 31 83.0...
  • Page 6 ACCESSORIES ORDER NUMBER DESCRIPTION 24--- 31 36--- 31 48--- 31 60--- 31 KAALS0201LLS LIQUID LINE SOLENOID VALVE KIT KSAHS2501AAA* HARD START KIT KSAHS2801AAA* HARD START KIT KSASF0101AAA SUPPORT FEET x = Accessory * Not backward compatible to previous series ACCESSORY USAGE GUIDELINE REQUIRED FOR REQUIRED FOR SEA COAST LOW --- AMBIENT COOLING...
  • Page 9 Wall...
  • Page 10 — Time---Delay Relay. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use either the accessory Time---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with TDR.
  • Page 15 CONDENSER ONLY RATINGS* CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 24ANB124A**31 --- High 19.70 19.10 18.40 17.60 16.60 15.50 14.40 13.10 64.30...
  • Page 16 CONDENSER ONLY RATINGS* CONTINUED CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 24ANB136A**31 --- Low 20.80 20.30 19.80 19.10 18.30 17.30 16.00 14.50...
  • Page 17 CONDENSER ONLY RATINGS* CONTINUED CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 24ANB160A**31 --- High 48.60 46.60 44.60 42.70 40.60 38.20 35.50 32.50...
  • Page 18 GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM AIR CONDITIONER 24ANB1 GENERAL 2 TO 5 NOMINAL TONS System Description — Condenser fan motors will be totally enclosed, 1- -phase type with class B insulation and permanently lubricated Outdoor- -mounted, air- -cooled, split- -system air conditioner unit bearings.
  • Page 19 SYSTEM DESIGN SUMMARY 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01- -in. wc. 2. Minimum outdoor operating air temperature without low- -ambient operation accessory is 55_F (12.8_C). 3.
  • Page 20 Catalog No. 24ANB1---5PD Copyright 2013 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Edition Date: 03/13 Replaces: 24ANB1--- 4PD Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
