- Page 1 AVS 3010 Owner’s manual...
-
Page 2: Remote Controls

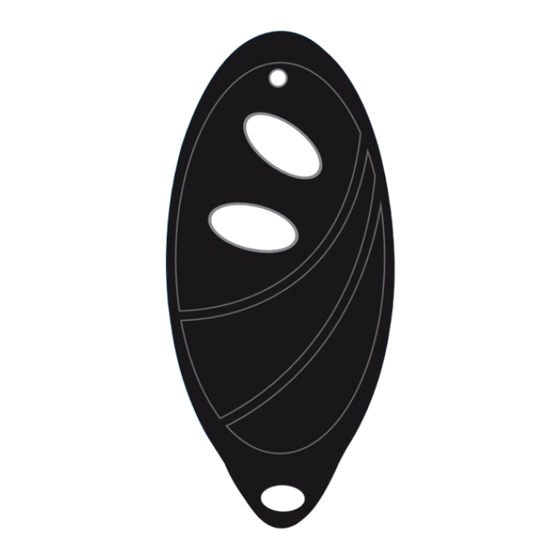

Thank you for choosing the AVS 3010 car alarm. It has been designed to provide security and convenience for you and your vehicle. Please read this guide carefully and keep it in a safe place for future reference. Remote controls Two remotes are supplied and are used to control the system’s functions. -
Page 3: Normal Operation
Normal operation ARMING 1. Press the top button (nearest the LED light). 2. The indicators will flash once and the siren will chirp once. 3. The doors will lock (if optional central locking installed). 4. The LED light on the dash will light solid for 20 seconds. 5. - Page 4 Disarming 1. Press the bottom button. 2. The indicators will flash and the siren will chirp three times. 3. The doors will unlock (if optional central locking installed). 4. The LED light on the dash will go out. The system is now disarmed. Alarm trigger zone If the alarm is triggered while you are away from the vehicle the LED light on the dash will tell you which zone has been triggered.
-
Page 5: Panic/Car Finder
Panic/car finder 1. Make sure the car ignition is turned off. 2. Press the top button on the remote for two seconds. 3. The indicators will flash and the siren will sound for 30 seconds. 4. To cancel panic, press the top button again. Valet mode This mode will stop the alarm arming. -
Page 6: Shock Sensor
Shock sensor The AVS 3010 comes with a dual stage shock sensor. If the sensor detects a light impact to the vehicle the alarm will chirp the siren and flash the indicators three times. If the sensor detects a heavy impact the system will enter full alarm mode. -
Page 7: Optional Features
Features are subject to change and not all features are available on all vehicles. Check with your AVS installer. CENTRAL dOOR LOCkING The alarm can lock/unlock the doors when the alarm is armed/disarmed. -
Page 8: Door Lock On Ignition
2. Press the bottom button on the remote for two seconds. 3. The indicators will flash five times and the boot will unlock. SILENT ARM/dISARM The AVS 3010 can be programmed to silently arm and disarm. The indicators will still flash. AuTO RE-ARM ANd RE-LOCk... - Page 9 Accessories The AVS 3010 can be fitted with additional accessories. A charge will apply. Glass break sensor Detects the sound frequency of breaking glass. ultrasonic sensor Measures air pressure and movement within the car and will trigger if the pressure changes. Gives superior protection for the interior of the vehicle.
-
Page 10: Frequently Asked Questions
The remote batteries are going flat. Replacement batteries are avail- able from your AVS dealer or electrical retailer (CR1616 x 2 per remote). I have lost/damaged my remote. How do I start the car? You can disarm the system by using the emergency disarm/PIN code override. -
Page 11: Installation Details
3-year warranty Complete the information below and keep with your original receipt for the three year warranty period. Installation details: Date of Installation: Installer: Installer NZSA #: Product: Additional accessories: Your details: Surname: Initials: Address: Vehicle Make: Rego #: Vehicle Model: Terms and conditions: Manta Electronics Ltd warrants the original misuse, abuse, neglect, accident, incorrect... - Page 12 AVS and the AVS logo are registered trademarks of Manta Electronics Ltd PO Box 302 396 North Harbour North Shore 0751 New Zealand 00 64 9 476 8052 www.avs.net.nz...
