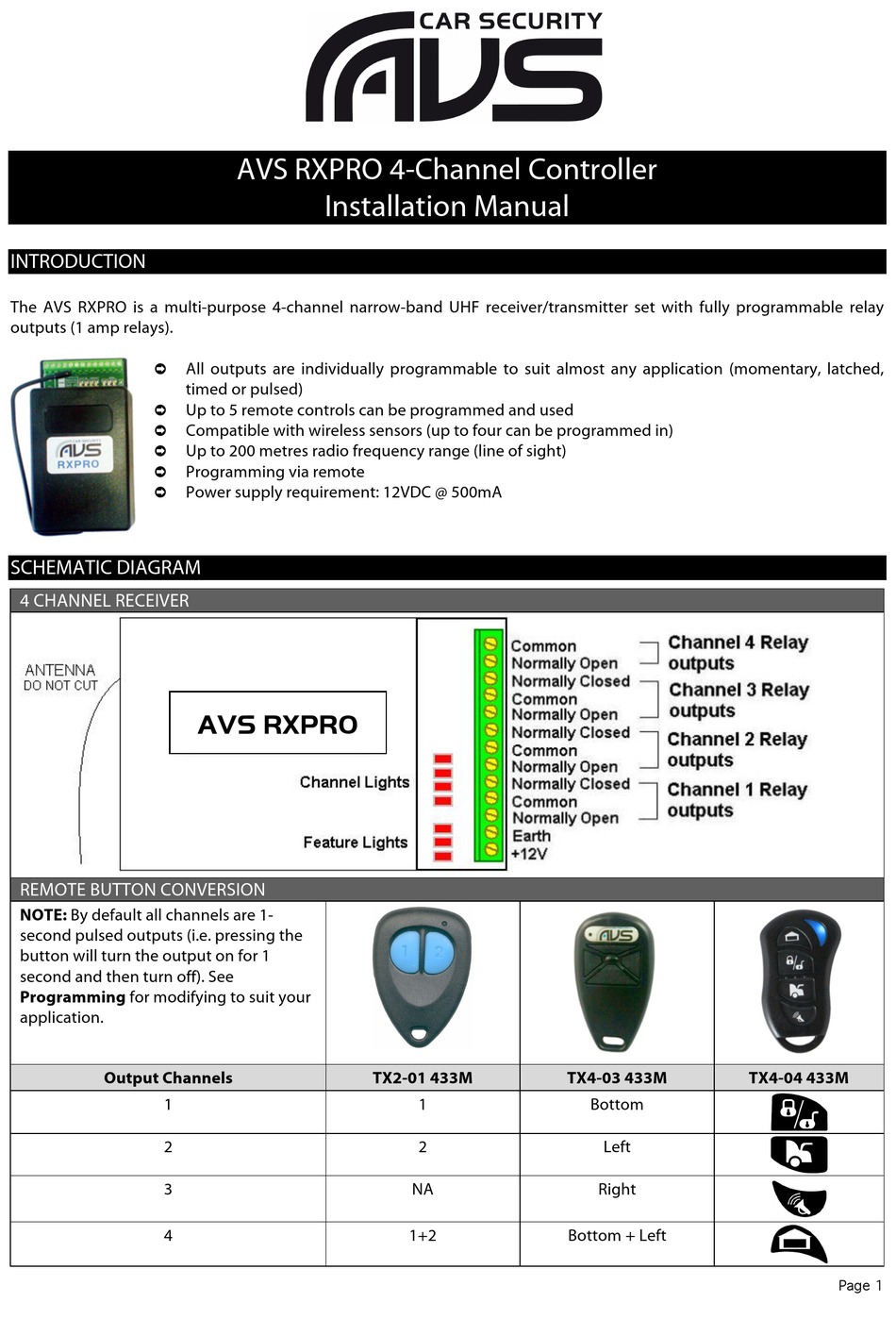

AVS RXPRO Installation Manual

4-channel controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INTRODUCTION
The AVS RXPRO is a multi-purpose 4-channel narrow-band UHF receiver/transmitter set with fully programmable relay
outputs (1 amp relays).
SCHEMATIC DIAGRAM
4 CHANNEL RECEIVER
REMOTE BUTTON CONVERSION
NOTE: By default all channels are 1-
second pulsed outputs (i.e. pressing the
button will turn the output on for 1
second and then turn off). See
Programming for modifying to suit your
application.
Output Channels
1
2
3
4
AVS RXPRO 4-Channel Controller
Installation Manual
All outputs are individually programmable to suit almost any application (momentary, latched,
timed or pulsed)
Up to 5 remote controls can be programmed and used
Compatible with wireless sensors (up to four can be programmed in)
Up to 200 metres radio frequency range (line of sight)
Programming via remote
Power supply requirement: 12VDC @ 500mA
AVS RXPRO
TX2-01 433M
1
2
NA
1+2
TX4-03 433M
Bottom
Left
Right
Bottom + Left
TX4-04 433M
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXPRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVS RXPRO

Summary of Contents for AVS RXPRO

  • Page 1 AVS RXPRO 4-Channel Controller Installation Manual INTRODUCTION The AVS RXPRO is a multi-purpose 4-channel narrow-band UHF receiver/transmitter set with fully programmable relay outputs (1 amp relays).  All outputs are individually programmable to suit almost any application (momentary, latched, timed or pulsed) Up to 5 remote controls can be programmed and used ...

  • Page 2: Antenna Mounting

    The RX-Pro will need to be reset and a remote coded in to program and use the unit. RE-SETTING THE AVS RXPRO Re-setting erases all remotes and detectors and returns the programming settings to the factory defaults .i.e. 1 second pulse outputs for all channels.

  • Page 3: Features Overview

    Re-setting erases all remotes and detectors and returns programming settings to the factory default. AVS remote conversion Using other AVS remotes with the AVS RXPRO ENTERING PROGRAMMING MODE Disconnect 12VDC power from the unit. Press and hold button 2 on the remote control.

  • Page 4: Deleting Remote Controls

    ADDING NEW REMOTES (Up to a maximum of 5 remotes) Enter programming mode (see above). Press button 3 repeatedly until the channel lights indicate one of the output channels you wish to program. Select a channel that you wish to operate with a remote control i.e. not a channel that you wish to operate with a wireless detector.
  • Page 5 LATCHED OR PULSED OUTPUT Enter programming mode (see page 3) Press button 3 repeatedly until the channel lights indicate one of the output channels you wish to program. Press button 2 until the feature lights are on as shown. Press button 1 to swap the feature light(s) between flashing and not flashing.
  • Page 6 TIMED OUTPUT Enter programming mode (see page 3) Press button 3 repeatedly until the channel lights indicate one of the output channels you wish to program. Press button 2 repeatedly until the feature lights are on as shown. Press button 1 to swap the feature light(s) between flashing and not flashing.
  • Page 7 Note: For momentary output you must turn off TIMED OUTPUT first (see page 5) and also turn on PULSED OUTPUT (see page 4) MOMENTARY OUTPUT Enter programming mode (see page 3) Press button 3 repeatedly until the channels lights are all on as shown.

  • Page 8: Adding Wireless Devices

    ADDING WIRELESS DEVICES (wireless PIR, reed switch, smoke detector, emergency pendant) Enter programming mode (see page 3) Press button 3 repeatedly until the channels lights indicate the output channel you wish to program. Select the channel that you wish to be activated by the detector.
  • Page 9 REED SWITCH MODE ENABLE If using wireless reed switches enable this mode. When the wireless reed switch sends “open” i.e. when your door or window is opened, then the channel output will be latched on. When the door is closed the output turns off. Enter programming mode (see page 3) Press button 3 repeatedly until the channels lights are on as shown.

  • Page 10: Optional Extras

     Additional remotes: up to 5 remote controls can be used Your AVS RXPRO remote can be used to control AVS car alarms and immobilisers as well as many other common  remote control devices including garage doors. Talk to your AVS dealer for more information.
