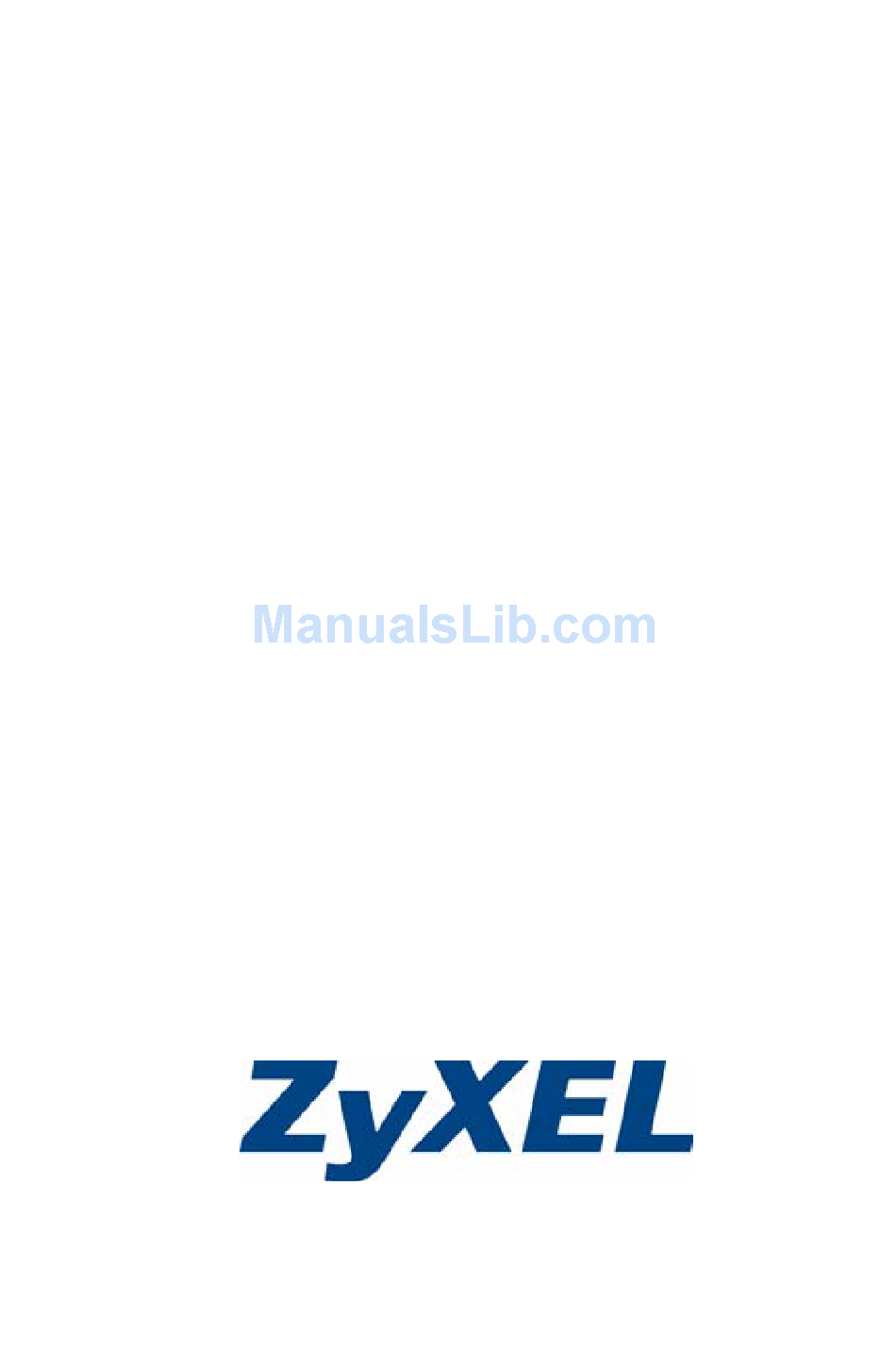

- Page 1 P-870M-Ix v2 Series VDSL2 Modem User’s Guide Version 1 Edition 2 11/2009...
- Page 2 P-870M-Ix v2 Series User’s Guide Overview The P-870M-Ix v2 Series (“P-870M-Ix v2”) is a VDSL2 (Very- high-speed Digital Subscriber Line 2) modem that provides high-speed Internet access up to 100 Mbps (each way) through a telephone line and supports Triple Play services. The P-870M-Ix v2 Series consists of the following models: •...
-
Page 3: Hardware Connections
P-870M-Ix v2 Series User’s Guide 1 Hardware Connections Take the following steps to connect your P-870M-Ix v2. 1 Use the gray telephone wire to connect the P-870M-Ix v2 DSL port to the DSL port to a telephone jack (or a splitter, if one is already installed.) 2 Use the Ethernet cable to connect the P-870M-Ix v2 ETHERNET port to the computer for Internet access. - Page 4 P-870M-Ix v2 Series User’s Guide If the POWER, ETHERNET, and DSL lights are on (or blinking), you have set up the P-870M-Ix v2 correctly. Test your Internet connection by visiting http://www.zyxel.com another web site). If the lights behave differently or if you cannot connect to the Web site, make sure the connections are correct.
-
Page 5: Wall Mounting Instructions
P-870M-Ix v2 Series User’s Guide Light Status Description Green The P-870M-Ix v2 has a DSL connection. Blinking The P-870M-Ix v2 is trying to establish a DSL connection. The DSL line is down. 3 Wall-mounting Instructions Complete the following steps to hang the P-870M-Ix v2 on a wall. -
Page 6: Specifications
P-870M-Ix v2 Series User’s Guide 4 Specifications The following values are accurate at the time of writing. Table 1 Device Specifications Feature Specification Dimensions (W x D x H) 132 mm x 189 mm x 40 mm Weight 265 g DSL Port (P-870M-I1 v2) RJ11 connector for POTS (P-870M-I3 v2) RJ-45 connector for ISDN... - Page 7 P-870M-Ix v2 Series User’s Guide other risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information. • Use ONLY the dedicated power supply for your device. Con- nect the power cord or power adaptor to the right supply volt- age (110V AC in North America or 230V AC in Europe).
-
Page 8: Related Documentation
P-870M-Ix v2 Series User’s Guide 6 Related Documentation Please go to http://www.zyxel.com for product news, firmware, documentation, and other support materials. Need More Help? More help is available at www.zyxel.com. • Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. -
Page 9: Customer Support
Documentation Feedback Send your comments, questions or suggestions to: techwriters@zyxel.com.tw Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. - Page 10 ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.
