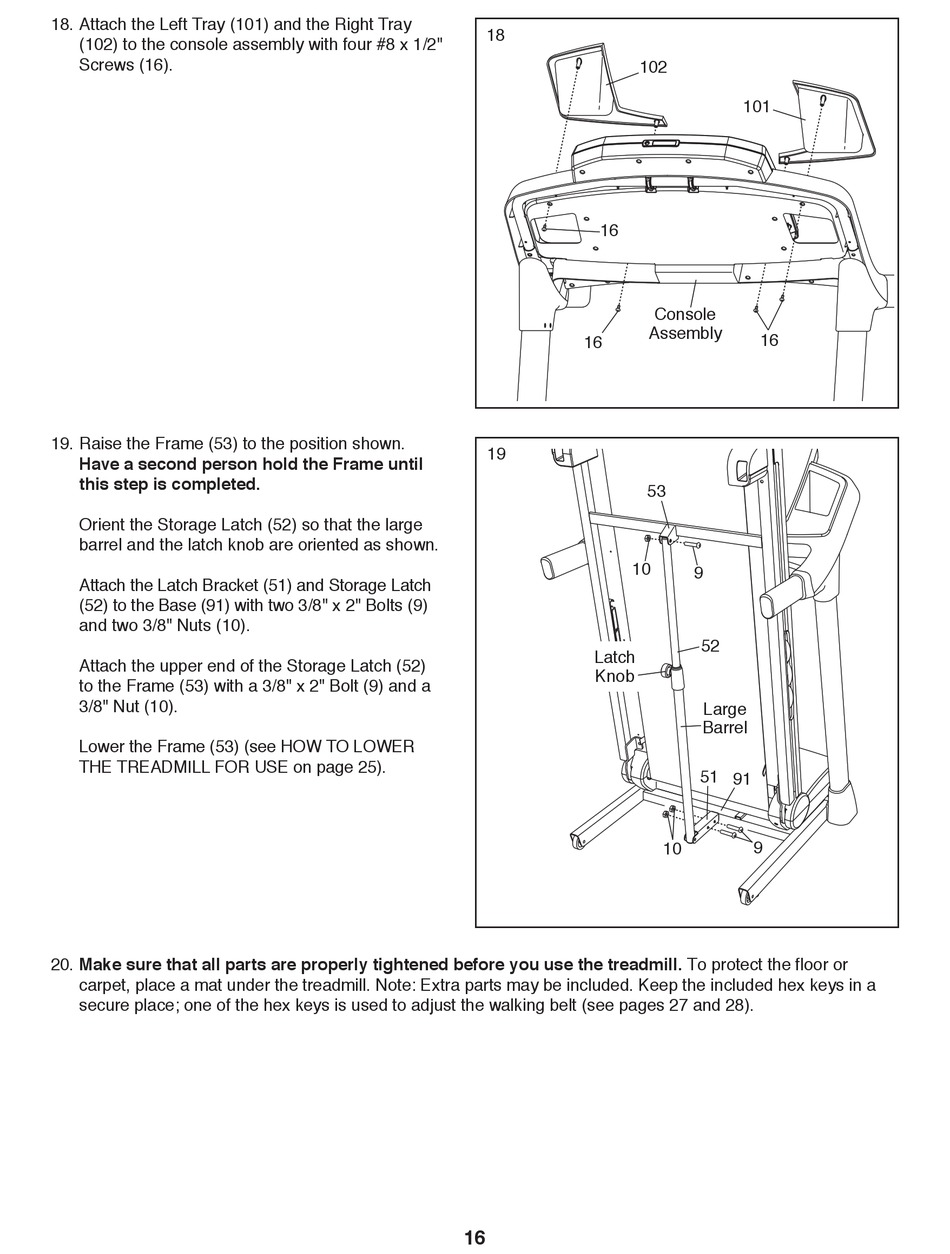

18. Attach the Left Tray (101) and the Right Tray
(102) to the console assembly with four #8 x 1/2"
Screws (16).
19. Raise the Frame (53) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (52) so that the large
barrel and the latch knob are oriented as shown.
Attach the Latch Bracket (51) and Storage Latch
(52) to the Base (91) with two 3/8" x 2" Bolts (9)
and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (52)
to the Frame (53) with a 3/8" x 2" Bolt (9) and a
3/8" Nut (10).
Lower the Frame (53) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
20. Make sure that all parts are properly tightened before you use the treadmill. To protect the  oor or
carpet, place a mat under the treadmill. Note: Extra parts may be included. Keep the included hex keys in a
secure place; one of the hex keys is used to adjust the walking belt (see pages 27 and 28).
18
102
16
16
19
10
Latch
Knob
16
101
Console
Assembly
16
53
9
52
Large
Barrel
51
91
9
10
