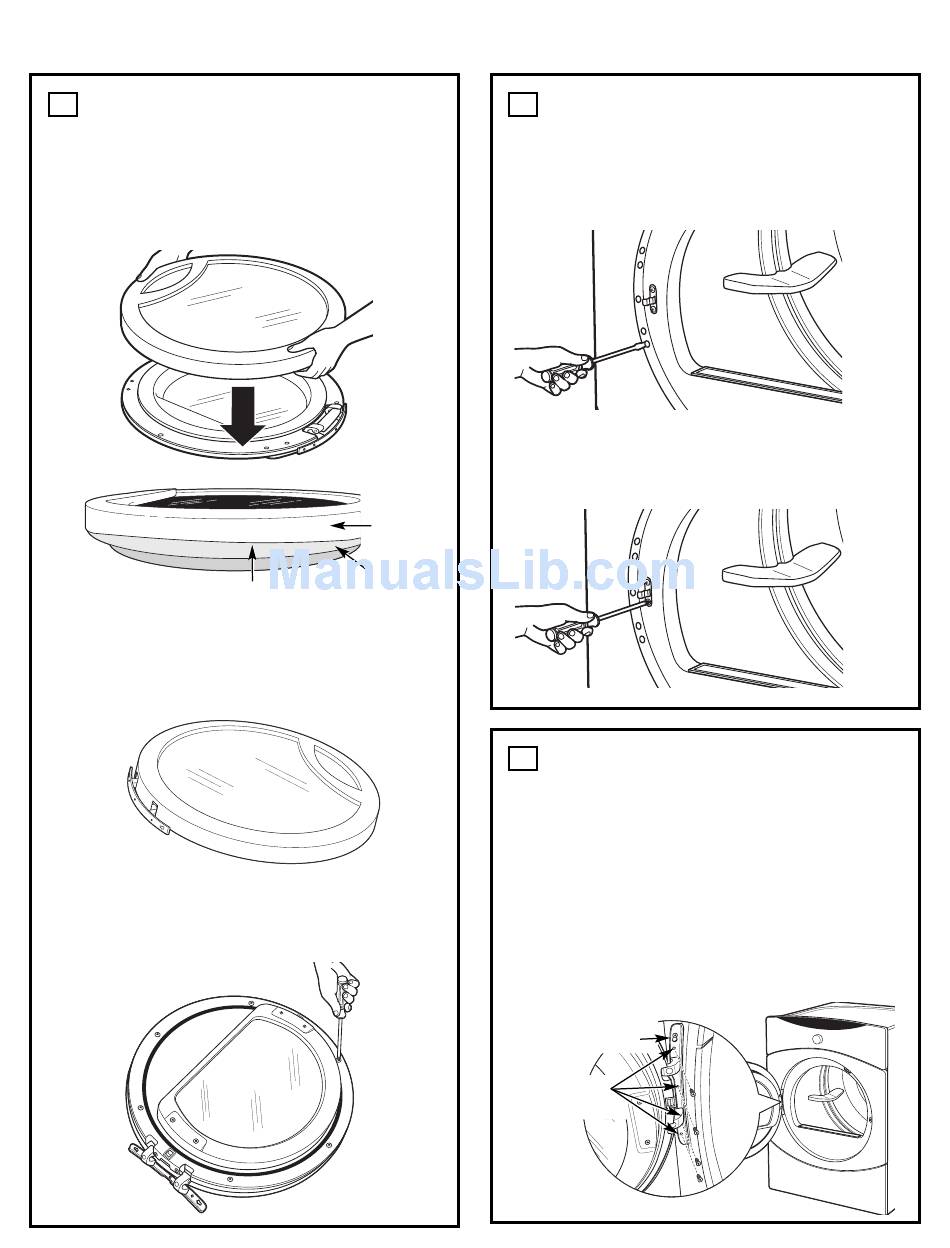

REASSEMBLE DOOR
6
ASSEMBLY
IMPORTANT: Make sure there is no dirt or
any other foreign material in between the
window panes.
Place the outer door onto the inner door.
Top of Door
After reversing door, there will be a mismatch
between the outer door and the inner door.
Make sure that the handle part of the outer
door is opposite the hinge as shown.
Turn the door over and fasten the outer door
to the inner door using the 6 large tapping
screws (#10).
MOVE STRIKE BRACKET
7
Using a putty knife or any other flat tool,
remove the 5 plastic screw caps located on
the dryer where the door will be installed and
install them on the opposite side.
Switch the strike bracket and its cover on
the opposite side by removing the screws.
Reinstall both on the opposite side.
Outer
Door
Inner
Door
8
REINSTALL DOOR ASSEMBLY
The door is now ready to be installed on
the dryer. To ease this step, the hinge has
keyholes that allow a partially fastened screw
to be used as a hook.
Partially fasten a screw to the uppermost
screw hole. Hook the door on the partially
fastened screw.
Fasten the hinge by installing the other
4 screws and tightening the partially fastened
screw above.
Partially
Inserted Screw
Tighten All
Screws
15
