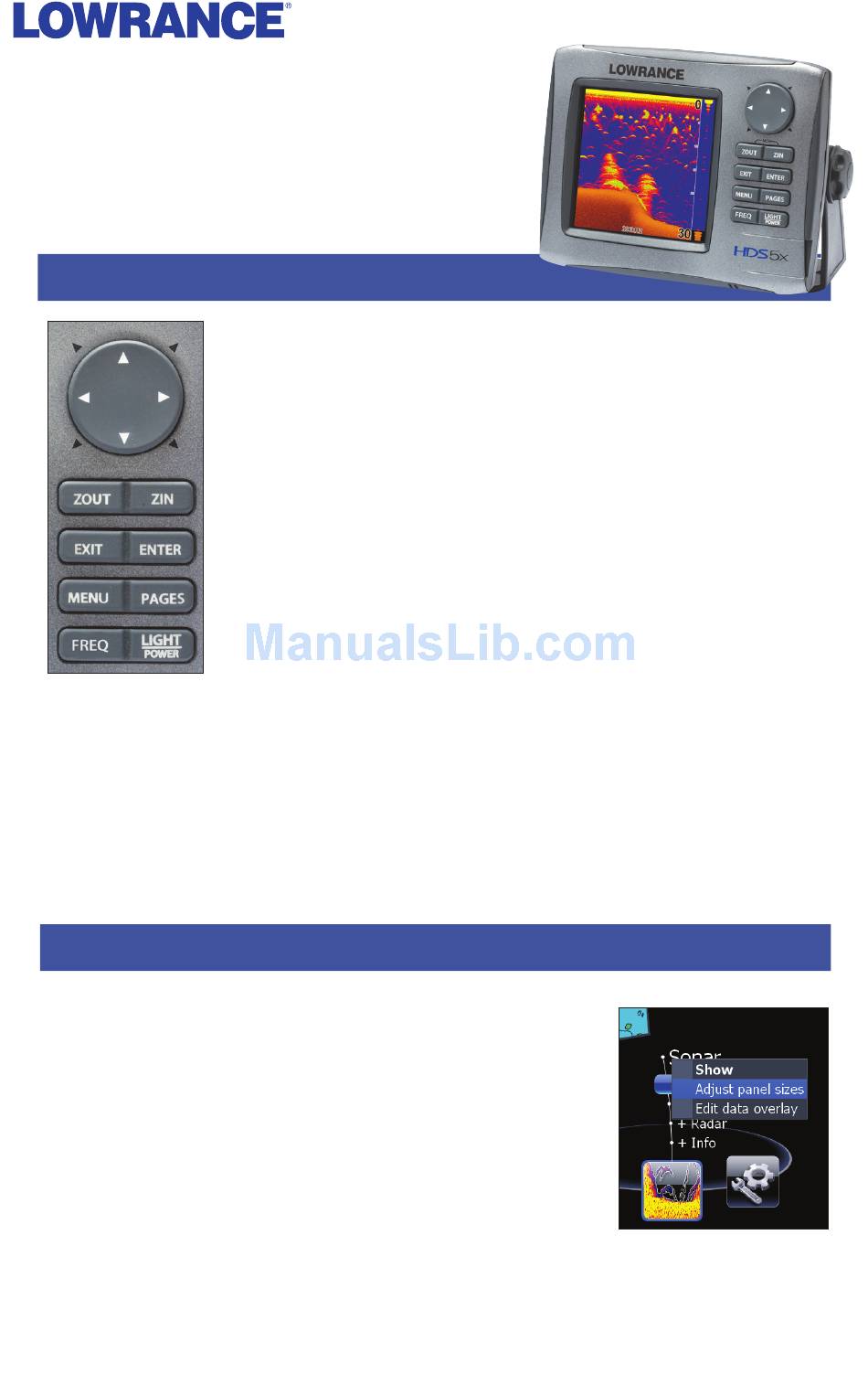

HDS-5x
Quick Start Guide

Function keys

Press to bring up the Pages screen, also press and hold to switch control
PAGES
between the panels and combo (split screen) pages.
Selects sonar frequency displayed on Sonar page.
FREQ
Press to turn the unit on, adjust the backlight or place the unit in low
LIGHT
POWER
power (standby) mode. Press and hold to turn the unit off.

Pages screen

To view a page:
1.
P
ress PAGES to access the Pages screen.
2.
Press the keypad left/right to select a page
display.
3.
Press
Activates cursor on Sonar page. Press up, down, left
Arrow
or right to move the cursor.
Keypad
Zooms out the Sonar page.
ZOUT
Zooms in the Sonar page.
ZIN
Press to return to a previous screen, clear data and
EXIT
close menus.
Press to save data, change values and accept menu
ENTER
commands.
Accesses the features available on each page.
MENU
ENTER to display the selected page.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS-5x and is the answer not in the manual?

Questions and answers

Related Manuals for Lowrance HDS-5x

Summary of Contents for Lowrance HDS-5x

  • Page 1: Pages Screen

    HDS-5x Quick Start Guide Function keys Activates cursor on Sonar page. Press up, down, left Arrow or right to move the cursor. Keypad Zooms out the Sonar page. ZOUT Zooms in the Sonar page. Press to return to a previous screen, clear data and EXIT close menus.
  • Page 2 To add a Data overlay to a page: 1. To add/edit data overlay, select the desired page from the pages screen and press MENU. Edit data overlay and press Select ENTER. ENTER When the page appears press to select data or MENU to access the edit overlay menu.

  • Page 3: Transducer Type

    Transducer Type Selecting the proper transducer type from the sonar installation menu helps optimize HDS performance by enabling settings (temperature and frequency) and menu options specific to your transducer. To select a Transducer Type: Press MENU twice. Sonar and press ENTER. Select Installation and press ENTER.
  • Page 4 Sonar display settings/options To adjust Sensitivity and Colorline: From the Sonar page press the MENU key. Adjust and press ENTER. Select Sensitivity or Colorline. Press Press the keypad up/down to select the keypad left/right to make adjustments. To select a Sonar page Palette: From the Sonar page press the MENU key.
