ProForm 1050 Sts Elliptical User Manual page 9

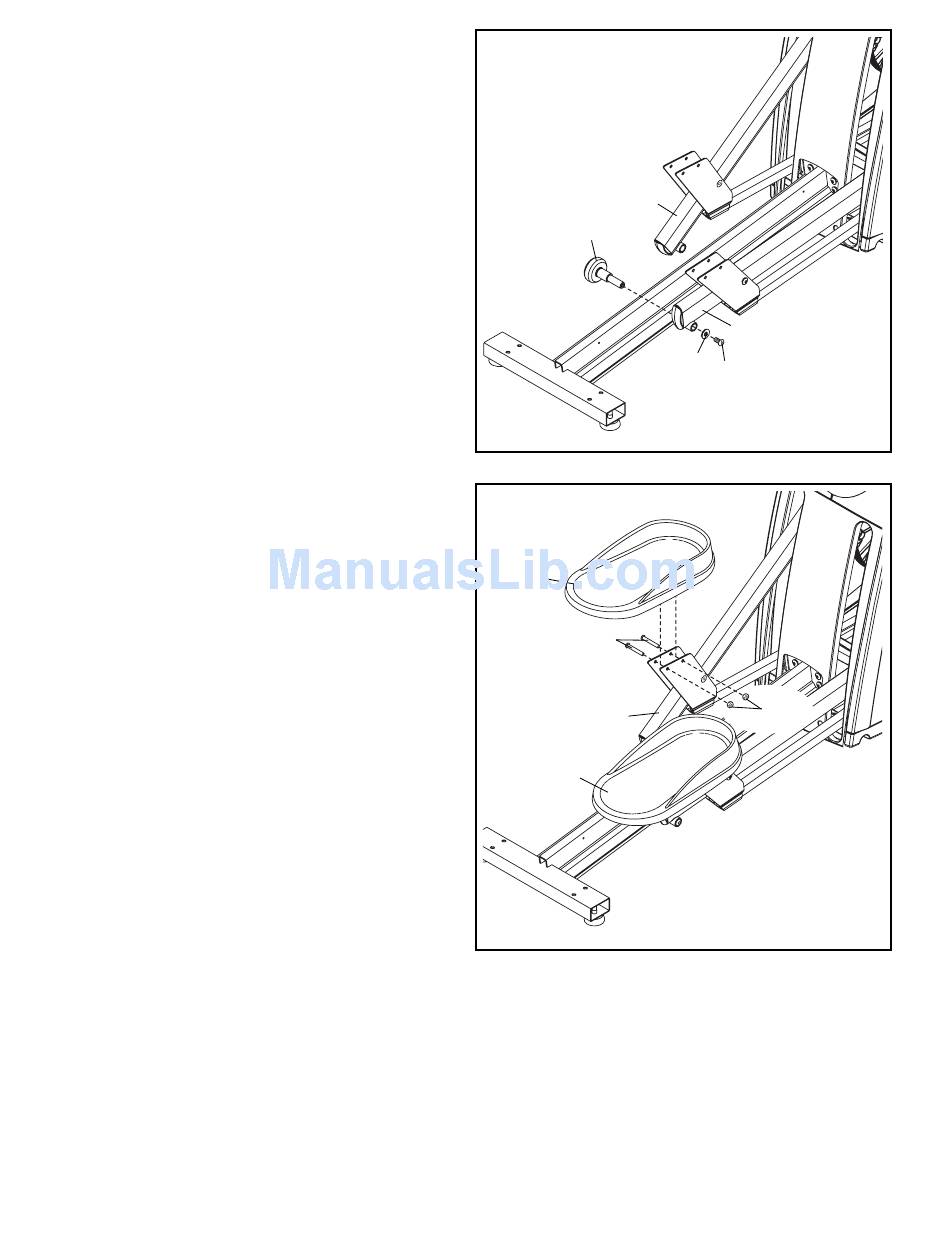

7. Insert the axle of the Roller (27) through the
right Link Arm (25); make sure that the Roller
is on the inner side of the Link Arm. Attach
the Roller with an M10 x 15mm Patch Screw
(71) and an M10 x 22mm x 1.5mm Washer (63).
Tip: Use a wrench to hold the axle of the
Roller firmly in place while you tighten the
Patch Screw into the axle.
Repeat this step to attach the other Roller
(27) to the left Link Arm (25).
8. Identify the left Pedal (26), which is marked with
an "L" sticker, and orient it as shown. Attach the
left Pedal to the bracket on the Left Pedal Leg
(24) with two M8 x 55mm Patch Bolts (61) and
two M8 Hex Nylon Locknuts (77).
Repeat this step to attach the right Pedal
(86).
7
25
27
8
26
61
24
26
9
25
63
71
77
