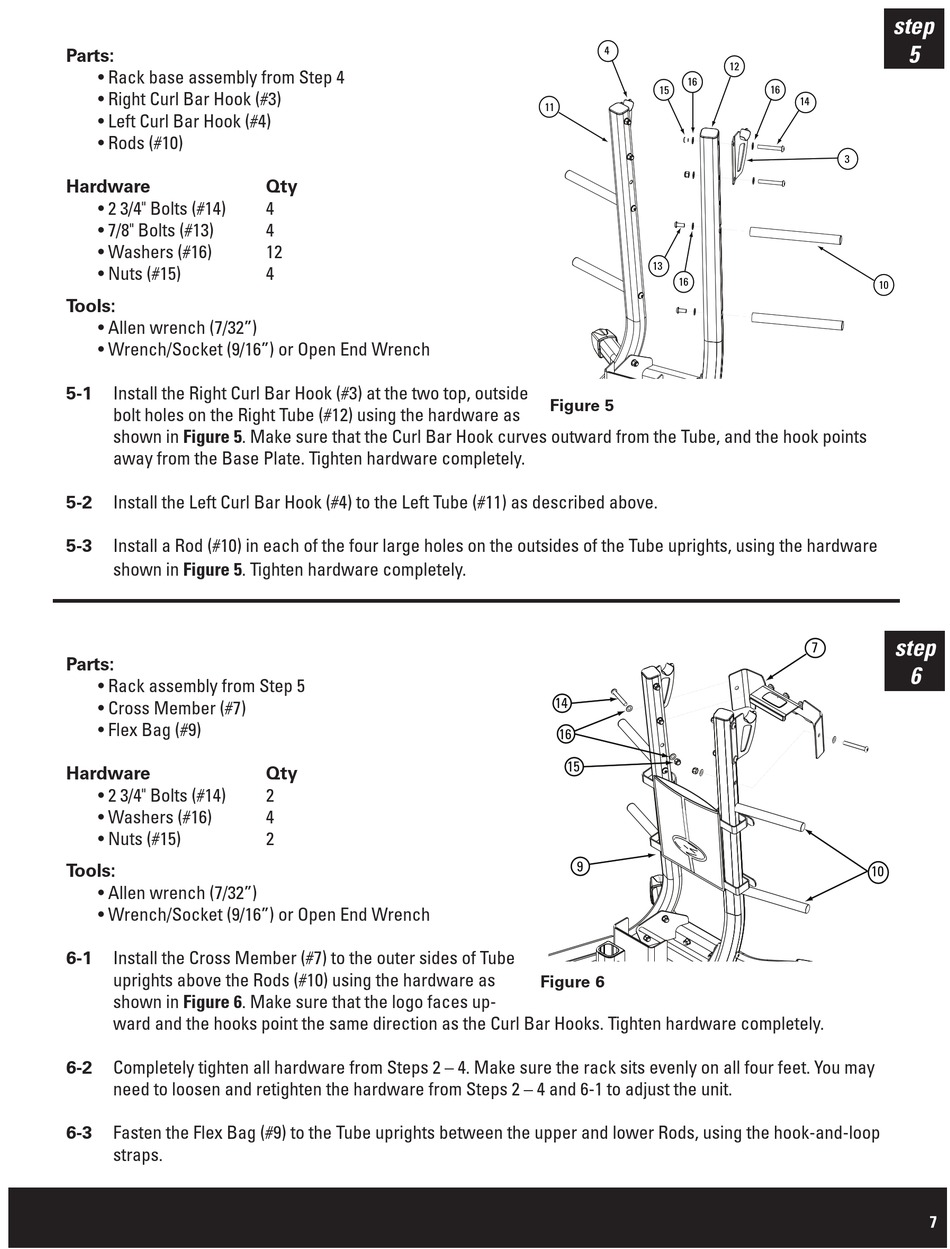

Parts:
• Rack base assembly from Step 4
• Right Curl Bar Hook (#3)
• Left Curl Bar Hook (#4)
• Rods (#10)
Hardware
• 2 3/4" Bolts (#14)
• 7/8" Bolts (#13)
• Washers (#16)
• Nuts (#15)
Tools:
• Allen wrench (7/32")
• Wrench/Socket (9/16") or Open End Wrench
Install the Right Curl Bar Hook (#3) at the two top, outside
5-1
bolt holes on the Right Tube (#12) using the hardware as
shown in Figure 5. Make sure that the Curl Bar Hook curves outward from the Tube, and the hook points
away from the Base Plate. Tighten hardware completely.
Install the Left Curl Bar Hook (#4) to the Left Tube (#11) as described above.
5-2
Install a Rod (#10) in each of the four large holes on the outsides of the Tube uprights, using the hardware
5-3
shown in Figure 5. Tighten hardware completely.
Parts:
• Rack assembly from Step 5
• Cross Member (#7)
• Flex Bag (#9)
Hardware
• 2 3/4" Bolts (#14)
• Washers (#16)
• Nuts (#15)
Tools:
• Allen wrench (7/32")
• Wrench/Socket (9/16") or Open End Wrench
Install the Cross Member (#7) to the outer sides of Tube
6-1
uprights above the Rods (#10) using the hardware as
shown in Figure 6. Make sure that the logo faces up-
ward and the hooks point the same direction as the Curl Bar Hooks. Tighten hardware completely.
6-2
Completely tighten all hardware from Steps 2 – 4. Make sure the rack sits evenly on all four feet. You may
need to loosen and retighten the hardware from Steps 2 – 4 and 6-1 to adjust the unit.
Fasten the Flex Bag (#9) to the Tube uprights between the upper and lower Rods, using the hook-and-loop
6-3
straps.
Qty
4
4
12
4
Qty
2
4
2
�
��
��
��
��
��
Figure 5
��
��
��
�
Figure 6
step
5
��
��
��
�
��
step
�
6
��
7
