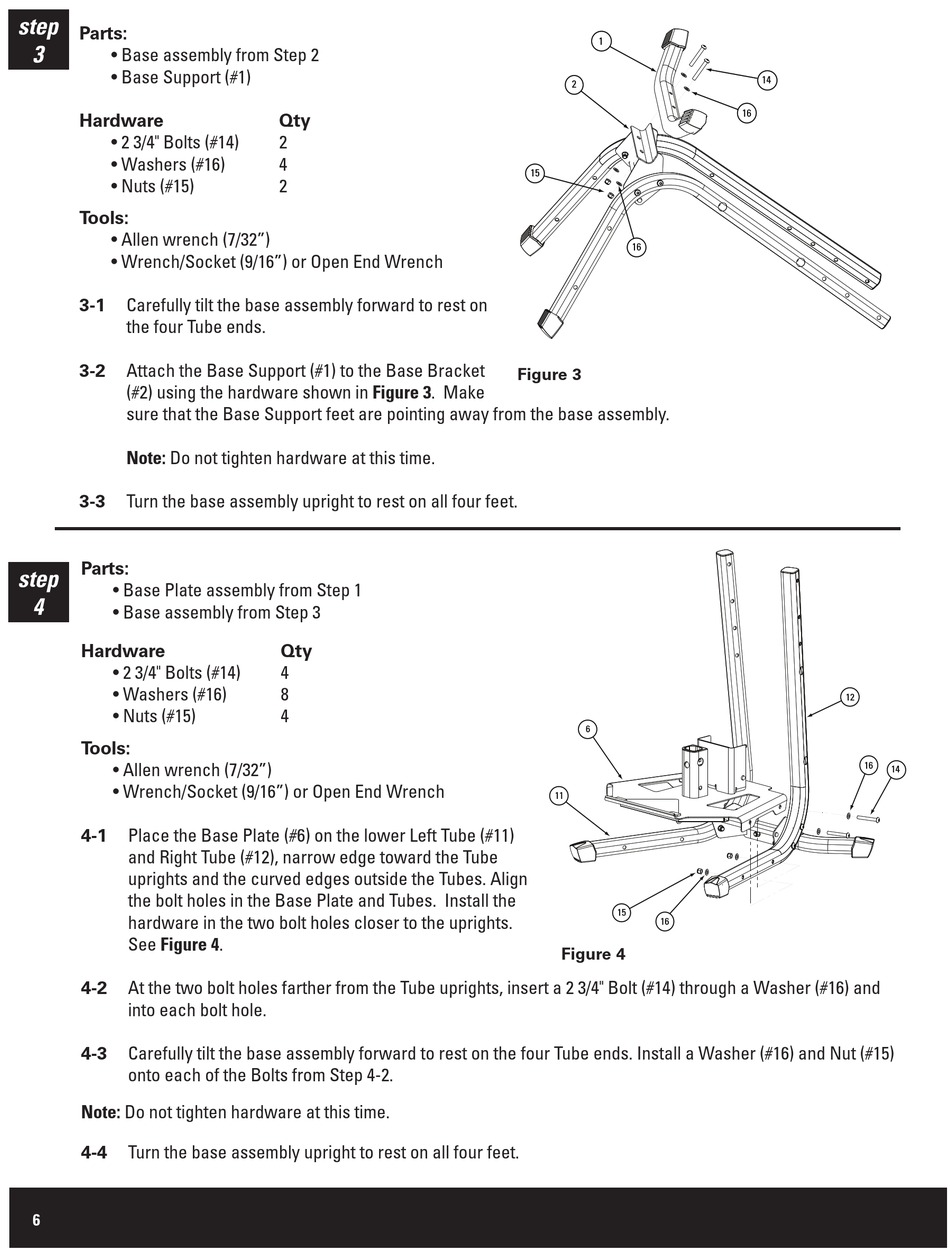

Bowflex Revolution Accessory Rack Assembly Instructions Manual page 6

step
Parts:
3
• Base assembly from Step 2
• Base Support (#1)
Hardware
• 2 3/4" Bolts (#14)
• Washers (#16)
• Nuts (#15)
Tools:
• Allen wrench (7/32")
• Wrench/Socket (9/16") or Open End Wrench
Carefully tilt the base assembly forward to rest on
3-1
the four Tube ends.
Attach the Base Support (#1) to the Base Bracket
3-2
(#2) using the hardware shown in Figure 3. Make
sure that the Base Support feet are pointing away from the base assembly.
Note: Do not tighten hardware at this time.
Turn the base assembly upright to rest on all four feet.
3-3
Parts:
step
• Base Plate assembly from Step 1
4
• Base assembly from Step 3
Hardware
• 2 3/4" Bolts (#14)
• Washers (#16)
• Nuts (#15)
Tools:
• Allen wrench (7/32")
• Wrench/Socket (9/16") or Open End Wrench
Place the Base Plate (#6) on the lower Left Tube (#11)
4-1
and Right Tube (#12), narrow edge toward the Tube
uprights and the curved edges outside the Tubes. Align
the bolt holes in the Base Plate and Tubes. Install the
hardware in the two bolt holes closer to the uprights.
See Figure 4.
At the two bolt holes farther from the Tube uprights, insert a 2 3/4" Bolt (#14) through a Washer (#16) and
4-2
into each bolt hole.
Carefully tilt the base assembly forward to rest on the four Tube ends. Install a Washer (#16) and Nut (#15)
4-3
onto each of the Bolts from Step 4-2.
Note: Do not tighten hardware at this time.
Turn the base assembly upright to rest on all four feet.
4-4
6
Qty
2
4
2
Qty
4
8
4
�
�
��
��
Figure 3
�
��
��
��
Figure 4
��
��
��
��
��
