Fluke 1550C Technical Data

Optimum Energy Products Ltd.
1.877.766.5412
info@myflukestore.com
www.MyFlukeStore.com

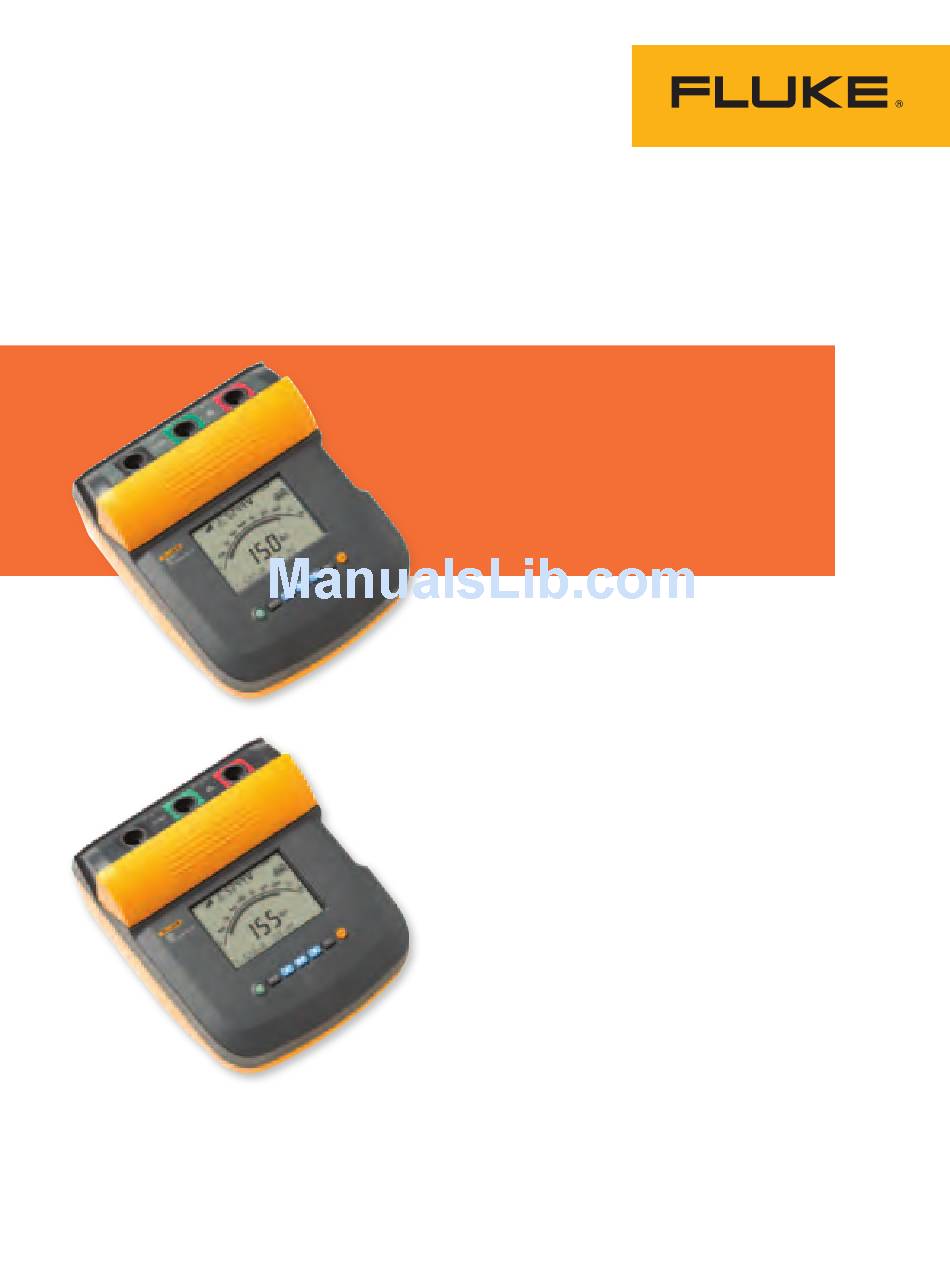

Fluke 1555 and
1550C Insulation
Resistance Testers
Digital insulation testing
up to 10 kV

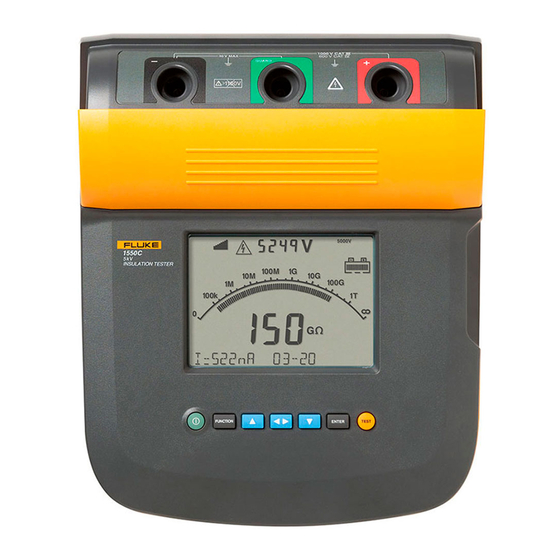

The new Fluke 1555 and redesigned Fluke
1550C insulation resistance testers, offer digital
insulation testing up to 10 kV, making them
ideal for testing a wide range of high voltage
equipment including switchgear, motors,
generators and cables.
Fluke insulation testers can now conduct the entire range of test
voltages specified in IEEE 43-2000 with a best in class, 3 year
warranty and CAT IV 600 V safety rating. With measurement storage
and PC interface, the 1555 and 1550C are perfect tools for pre-
ventative or predictive maintenance programs designed to identify
potential equipment failures before they occur.
Features include:
•
Test voltages to up 10 kV provides solutions for all applications
•
CAT III 1000 V, CAT IV 600 V safety rating
•
Warning function alerts the user that line voltage is present and
gives the voltage reading up to 600 V ac or dc for increased user
safety
•
Selectable test voltages in 50 V steps from 250 V to 1000 V, and
100 V steps above 1000 V
•
Measurements can be stored in up to 99 memory locations, with
each location assigned a unique, user defined, label for easy
recall
•
Long battery life gives the user over 750 tests between charges
•
Automatic calculation of Dielectric Absorption (DAR) and
Polarization Index (PI) with no additional setup
•
Guard system eliminates the effect of surface leakage current
on high-resistance measurements
•
Large digital/analog LCD for easy viewing
•
Capacitance and leakage current measurement
•
Ramp function for breakdown testing
•
Resistance measurements up to 2TΩ
•
Timer settings up to 99 minutes for timed tests
•
3-year warranty

Technical Data
