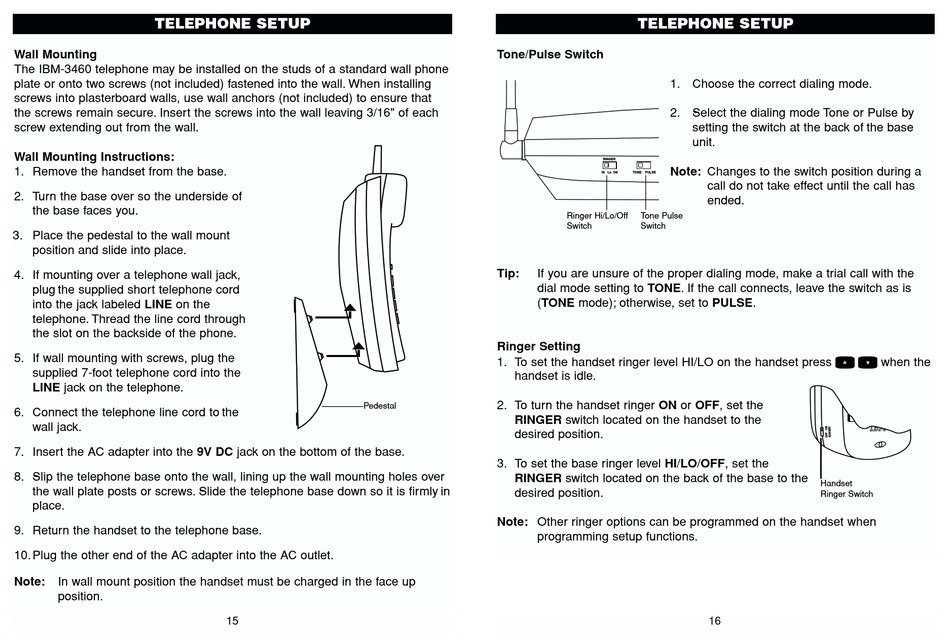

TELEPHONE SETUP

Wall Mounting

The IBM-3460 telephone may be installed on the studs of a standard wall phone
plate or onto two screws (not included) fastened into the wall. When installing
screws into plasterboard walls, use wall anchors (not included) to ensure that
the screws remain secure. Insert the screws into the wall leaving 3/16" of each
screw extending out from the wall.
Wall Mounting Instructions:
1. Remove the handset from the base.
2. Turn the base over so the underside of
the base faces you.
3. Place the pedestal to the wall mount
position and slide into place.
4. If mounting over a telephone wall jack,
plug the supplied short telephone cord
into the jack labeled LINE on the
telephone. Thread the line cord through
the slot on the backside of the phone.
5. If wall mounting with screws, plug the
supplied 7-foot telephone cord into the
LINE jack on the telephone.
6. Connect the telephone line cord to the
wall jack.
7. Insert the AC adapter into the 9V DC jack on the bottom of the base.
8. Slip the telephone base onto the wall, lining up the wall mounting holes over
the wall plate posts or screws. Slide the telephone base down so it is firmly in
place.
9. Return the handset to the telephone base.
10. Plug the other end of the AC adapter into the AC outlet.
Note: In wall mount position the handset must be charged in the face up
position.
Pedestal
15
TELEPHONE SETUP

Tone/Pulse Switch

1. Choose the correct dialing mode.
2. Select the dialing mode Tone or Pulse by
RINGER
Note: Changes to the switch position during a
Hi Lo Off TONE PULSE
Ringer Hi/Lo/Off Tone Pulse
Switch Switch
Tip: If you are unsure of the proper dialing mode, make a trial call with the
dial mode setting to TONE. If the call connects, leave the switch as is
(TONE mode); otherwise, set to PULSE.

Ringer Setting

1. To set the handset ringer level HI/LO on the handset press + - when the
handset is idle.
2. To turn the handset ringer ON or OFF, set the
RINGER switch located on the handset to the
desired position.
3. To set the base ringer level HI/LO/OFF, set the
RINGER switch located on the back of the base to the
desired position.
Note: Other ringer options can be programmed on the handset when
programming setup functions.
setting the switch at the back of the base
unit.
call do not take effect until the call has
ended.
Handset
Ringer Switch
16
