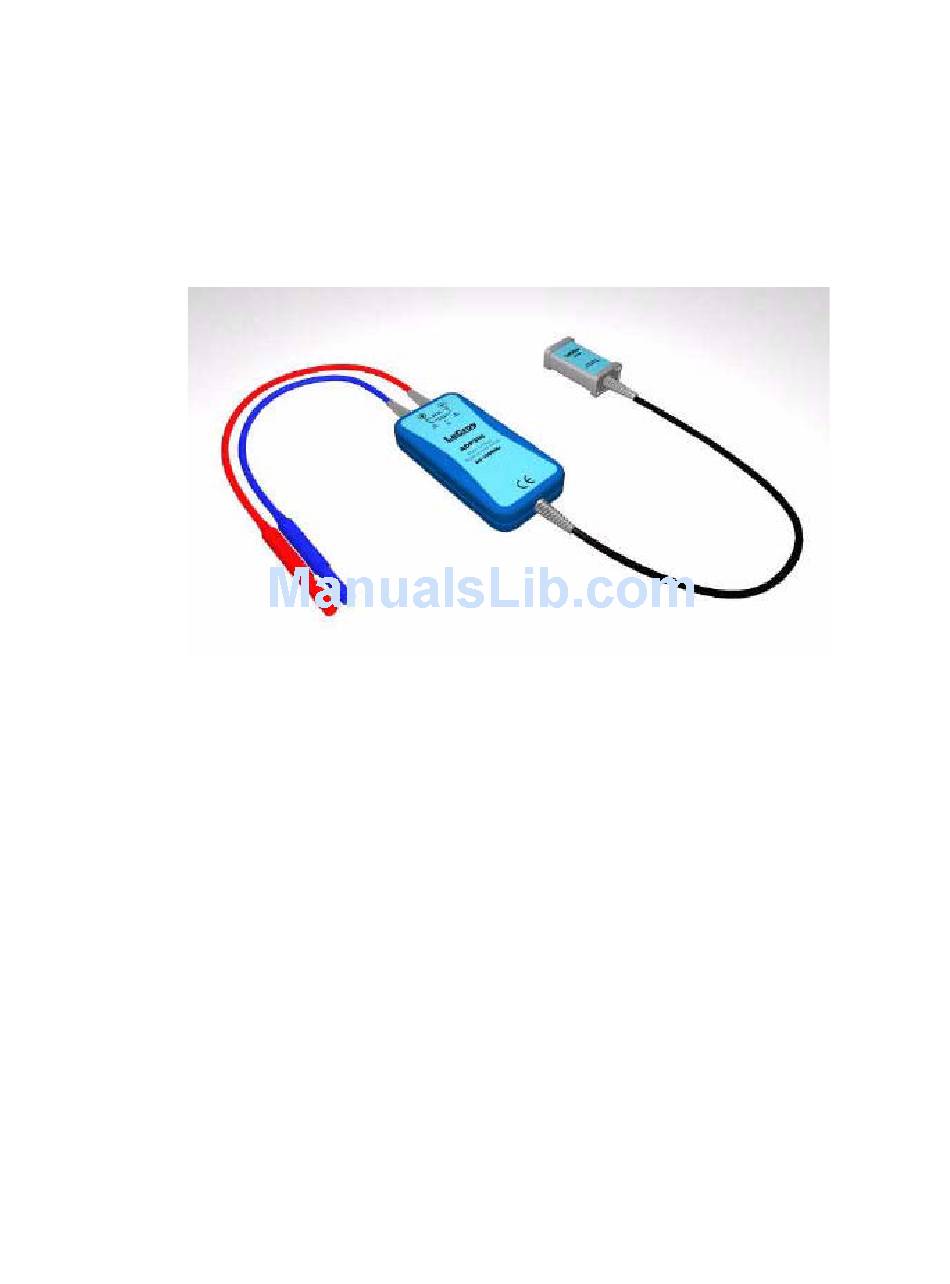

  • Page 1 LeCroy ADP300/305 Instruction Manual February 2007...
  • Page 2 Spare parts, replacement parts, and repairs are warranted for 90 days. In exercising its warranty, LeCroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center.
  • Page 3 Manufactured under an ISO 9000 This electronic product is subject to Registered Quality Management System disposal and recycling regulations Visit www.lecroy.com to view the that vary by country and region. certificate. Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles.
  • Page 4 Toxic or Hazardous Substances and Elements Hexavalent Polybrominate Polybrominated Lead Mercury Cadmium Chromium d Biphenyls Diphenyl Part Name (Pb) (Hg) (Cd) (PBB) Ethers (PBDE) PCBAs Mechanical Hardware Sheet Metal Plastic Parts Protective Case Cable Assemblies Probe Tips O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement specified in SJ/T11363-2006.
  • Page 5 ADP30X-OM-E Rev B...
  • Page 6 BLANK PAGE ADP30X-OM-E Rev B...

  • Page 7: Table Of Contents

    SAFETY INFORMATION..................8 OPERATION.......................10 Connecting the Probe to the Test Instrument................. 10 Connecting the Probe to the Test Circuit ..................10 Operation with a LeCroy Oscilloscope...................10 Smart Offset ........................... 11 Bandwidth Limit (ADP305 only) ..................... 11 Auto Zero............................11 REMOTE CONTROL COMMANDS..............12 Introduction ............................
  • Page 8 Nominal Characteristics .........................27 Warranted Characteristics......................27 Typical Characteristics ........................28 Environmental Characteristics .......................28 Physical Characteristics .........................28 Compliance and Certifications .......................29 APPENDIX A ......................31 Performance Verification Test record .....................31 ADP300/ADP305 Test Record .......................32 APPENDIX B ......................33 SAC-01 Mounting Instructions .......................33 ADP30X-OM-E Rev B...

  • Page 9: Overview

    The oscilloscope provides power to the probe, so there is no need to worry about a separate power supply or changing batteries. The sensitivity of the ADP300 ranges from 1 V/div to 350 V/div; and the sensitivity for the ADP305 ranges from 200 mV/div to 350 V/div.

  • Page 10: Conventions Used In This Manual

    ADP300/305 Probe Conventions Used in this Manual The following conventions may appear in this manual: Note A Note contains information relating to the use of the product. CAUTION A Caution contains information that should be followed to avoid possible damage to the instrument or the device under test.

  • Page 11: Standard Accessories

    ADP30X Operator’s Manual Standard Accessories ADP300 ADP305 Instruction Manual Certification of Compliance Hook and Loop Strap for holding probe Plunger Hook Tip Safety Alligator Clip Plunger Jaw Clip Plunger Clamp Clip Spade Terminal Soft Accessory Case Description of Accessories WARNING...
  • Page 12 ADP300/305 Probe Safety Alligator Clip (1 Red, 1 Blue) Insulated, 1000 V, CAT III. Designed to attach to large components, such as busbars and large bolts, the overall length is 90 mm (3.5 inches) and the jaw opens to 22 mm (0.87 inch) max.
  • Page 13 ADP30X Operator’s Manual Soft Accessory Case This can be used to carry probes and accessories. It can also be mounted on your oscilloscope for storing all your accessories and manuals. See Appendix B for installation instructions. ADP30X-OM-E Rev B...

  • Page 14: Safety Information

    ADP300/305 Probe SAFETY INFORMATION To avoid personal injury and to prevent damage to the probe or any products connected to it, review the following safety precautions. To avoid potential hazards, use the probe only as specified. Warning To avoid fire or personal injury, comply with the following: For indoor use only.
  • Page 15 Do not operate with suspected failures. If you suspect there is damage to the probe, have it inspected by qualified service personnel. Use only LeCroy supplied accessories, or order replaceable parts listed in the Replacement Parts list. ADP30X-OM-E Rev B...

  • Page 16: Operation

    OLTS attenuation to give full available dynamic range from 1 V/div to 350 V/div for the ADP300, and from 200 mV/div to 350 V/div for the ADP305. Some of the transition of the scale factor will result in a change of attenuation.

  • Page 17: Smart Offset

    ADP30X Operator’s Manual Smart Offset The ADP30X has offset capability. This allows you to remove a DC bias voltage from the differential input signal while maintaining DC coupling. The offset range of the probe is a function of the oscilloscope’s sensitivity and the probe’s attenuation.

  • Page 18: Remote Control Commands

    REMOTE CONTROL COMMANDS Introduction When attached to a LeCroy oscilloscope equipped with ProBus interface, the ADP30X Active Differential Probe can be remotely controlled, along with the other oscilloscope functions. The control interface can be either the RS-232 or IEE-488 (GPIB) buses. The commands that control the probe are described below.

  • Page 19: Probe Auto Zero

    ADP30X Operator’s Manual Probe Auto Zero PRx:AUTOZERO, PRx:AZ Command Description The PRx:AUTOZERO command initiates an auto zero cycle in the ADP30X probe to remove any offset drift. The probe input can remain connected to the test circuit during the auto zero cycle.

  • Page 20: Probe Bandwidth Limit

    ADP300/305 Probe Probe Bandwidth Limit PRx:BANDWIDTH_LIMIT, PRx:BWL Command/Query Description The PRx:BANDWIDTH_LIMIT command sets the upper (HF) –3 dB bandwidth limit of the ADP305 probe. The arguments are in Hertz. Note The PRx:Bandwidth_Limit command is not available with model ADP300 The PRx:Bandwidth_Limit query returns the upper bandwidth limit setting for the differential probe connected to the specified channel.

  • Page 21: Probe Coupling

    ADP30X Operator’s Manual Probe Coupling PRx:COUPLING, PRx:CPL Command/query Description The PRx:COUPLING command selects the coupling mode of the ADP30X probe. The PRx:COUPLING? query returns the coupling mode of the selected channel. Command Syntax <channel>:CouPLing<coupling> <channel>:={PR1, PR2, PR3, PR4} <coupling>:={DC, GND} Query Syntax <channel>:CouPLing? Response Format...

  • Page 22: Probe Offset

    ADP300/305 Probe Probe Offset PRx:OFFSET, PRx:OFST Command/Query Description When an ADP30X probe is connected to a channel, the OFFSET command sets the probe offset value. The maximum range and resolution is determined by the V/DIV setting. If an out-of-range value is entered, the differential probe will set the offset to the closest valid value, and the VAB bit (bit 2) in the STB register will be set.

  • Page 23: Probe Volts/Div

    Command Syntax <channel>:Volt_DIV <sensitivity> <channel>:={PR1, PR2, PR3, PR4} <sensitivity>:={200 mV to 350 V} for the ADP350 <sensitivity>:={1 V to 350 V} for the ADP300 Note: The suffix V is optional Query Syntax <channel>:Volt_DIV? Response Format <channel>:VDIV <sensitivity>...

  • Page 24: Reference Information

    ADP300/305 Probe REFERENCE INFORMATION Differential Mode and Common Mode Differential amplifiers amplify the voltage difference that appears between the + input and – input. This voltage is referred to as the Differential Mode or Normal Mode voltage. The voltage component that is referenced to earth and is identical on both inputs is rejected by the amplifier.
  • Page 25 ADP30X Operator’s Manual The common mode frequency in these graphs is assumed to be sinusoidal. In real life applications, the common mode signal is seldom a pure sine wave. Signals with pulse wave shapes contain frequency components much higher than the repetition rate may suggest. As such, it is very difficult to predict actual performance in the application for CMRR versus frequency graphs.

  • Page 26: Care And Maintenance

    1. For LeCroy LT and LC series scopes, verify that the firmware version is 8.5 or higher. 2. Waveform is inverted. — Make sure that the + lead (Red) is connected to the proper test point.

  • Page 27: Replacement Parts

    5. Pack the probe case in a cardboard shipping box with adequate padding to avoid damage in transit. 6. Mark the outside of the box with the shipping address given to you by the LeCroy representative; be sure to add the following: •...
  • Page 28 ADP300/305 Probe Item LeCroy P/N Alternate P/N ADP300 Exchange Unit APD300-PROBE-FRU ADP305 Exchange Unit APD305-PROBE-FRU Instruction Manual ADP30X-OM-E Soft Carrying Case SAC-01 Mueller: BU-20431-2 (Red) Plunger Hook Clips PK30X-1 Mueller: BU-20431-6 (Blue) Mueller: BU-656-2 (Red) Safety Alligator Clips PK30X-2 Mueller: BU-656-6 (Blue)

  • Page 29: Functional Test

    Functional Test without removing the probe covers. Test Equipment Required Other than a LeCroy oscilloscope, no special test equipment is required for the functional test. Test procedure 1. Connect the ADP300 or ADP305 to any vertical channel on the oscilloscope.

  • Page 30: Performance Verification

    This procedure can be used to verify the warranted characteristics of the ADP30X series Active Differential Probes. If the product does not meet specifications, it should be returned to a LeCroy service center. There are no user accessible adjustments, so there is no adjustment procedure.

  • Page 31: Procedure

    ADP30X Operator’s Manual 3. Turn on the other test equipment and allow these to warm up for the time recommended by the manufacturer. 4. While the instruments are reaching operating temperature, make a photocopy of the Performance Verification Test Record (located in Appendix A), and fill in the necessary data.
  • Page 32 This completes the Performance Verification Procedure. Complete and file the Test Record, as required to support your internal calibration procedure. If the criteria in steps 14 or 19 are not met, contact your local LeCroy service center. ADP30X-OM-E Rev B...

  • Page 33: Specifications

    20 MHz (ADP305 only) Interface ProBus Oscilloscope Compatibility LeCroy LT or LC series oscilloscopes with firmware version 8.5 or higher; or X-Stream oscilloscopes. (Not available for 9300 series oscilloscopes) Warranted Characteristics Warranted characteristics are parameters with guaranteed performance. Unless otherwise noted, tests are provided in the "Performance Verification Procedure"...

  • Page 34: Typical Characteristics

    ADP300/305 Probe Typical Characteristics Typical characteristics are parameters with no guaranteed performance. Tests for typical characteristics are not provided in the "Performance Verification Procedure." Bandwidth: ADP300 20 MHz ADP305 100 MHz Rise Time: ADP300 < 17.5 ns ADP305 < 3.5 ns...

  • Page 35: Compliance And Certifications

    ADP30X Operator’s Manual Compliance and Certifications Input Voltage & Burn Limit vs. Frequency Note The voltage derating curve provides the maximum voltage that can be applied to the probe inputs without risking damage to the probe. The Burn Limit is the voltage limit that should be used when the input leads are being hand-held.
  • Page 36 ADP300/305 Probe Typical CMRR vs. Frequency ADP30X-OM-E Rev B...

  • Page 37: Appendix A

    Performance Verification Test record This record can be used to record the results of measurements made during the performance verification of the ADP300/ADP305 Active Differential Probe. Photocopy this page and record the results on the copy. File the completed record, as required by applicable internal quality procedures.

  • Page 38: Adp300/Adp305 Test Record

    ADP300/305 Probe ADP300/ADP305 Test Record Step Description Intermediate Data Test Result Gain Accuracy Function Generator Output Voltage ________________ V Probe Output Voltage ________________ V ÷1000 Gain Error (Test limit ±1%) ___________% Probe Output Voltage ________________ V ÷100 Gain Error (Test limit ±2%)

  • Page 39: Appendix B

    ADP30X Operator’s Manual APPENDIX B SAC-01 Mounting Instructions 1. Instructions for mounting the SAC-01 Oscilloscope Accessory Case onto your oscilloscope. 2. Wipe the top surface of the oscilloscope with a clean cloth moistened with isopropyl alcohol and allow it to dry. The surface should be clean and free of any lubricant. 3.
