BATTERY CHARGING

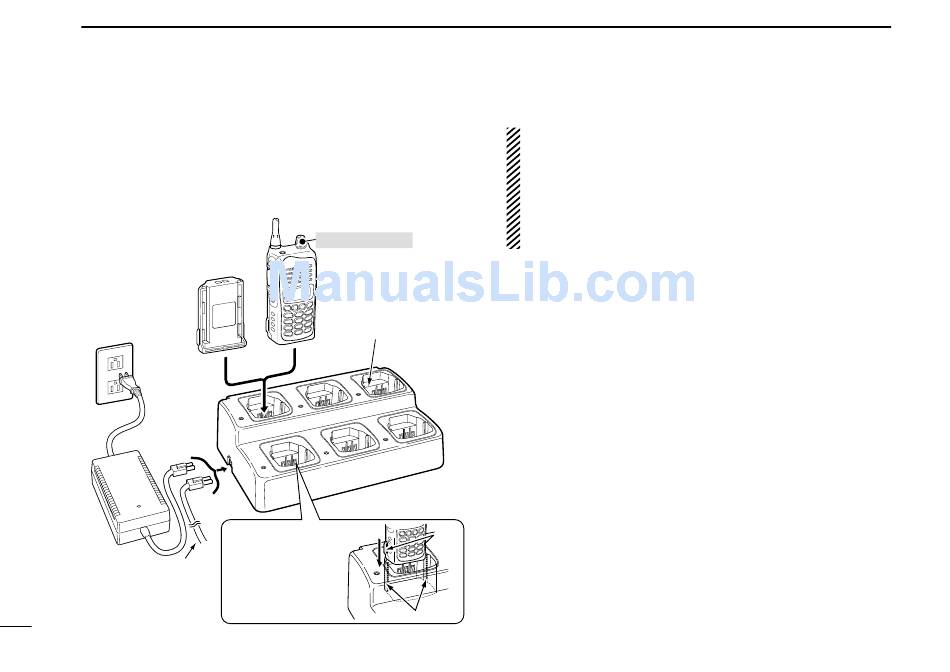

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 Li-Ion battery packs to
be charged simultaneously. The following items are addition-
ally required.
• Six AD-106 charger adapters
• An optional AC adapter or the DC power cable (OPC-656)
AC adapter
(Purchased
separately)
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
20
Transceiver
Turn power OFF
Battery
pack
AD-106 charger
adapters are installed
in each slot.
IMPORTANT!
Ensure the tabs on
the battery pack are
correctly aligned
with the guide rails
inside the charger.
CAUTION:
When using the OPC-515L/OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
515L/OPC-656 to a power source. This will ruin the battery
charger.
OPC-515L : White line: +, Black line: _
OPC-656 : Red line: +, Black line: _
Tabs
Guide rails
