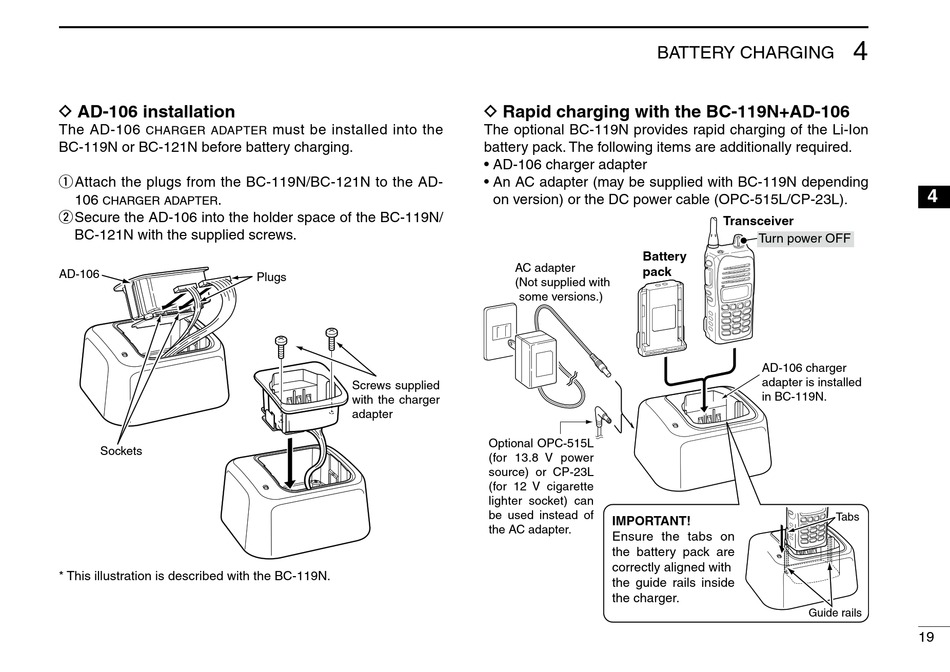

Icom IC-F3021T Instruction Manual page 23

D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the AD-
106 .
charger adapter
w Secure the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
AD-106
Sockets
* This illustration is described with the BC-119N.
must be installed into the
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-Ion
battery pack. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-23L).
Battery
AC adapter
pack
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
IMPORTANT!
the AC adapter.
Ensure the tabs on
the battery pack are
correctly aligned with
the guide rails inside
the charger.
4
Transceiver
Turn power OFF
AD-106 charger
adapter is installed
in BC-119N.
Tabs
Guide rails
