American Dryer Corp. ADG-531HS Parts Manual

Hot surface ignition 1998
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

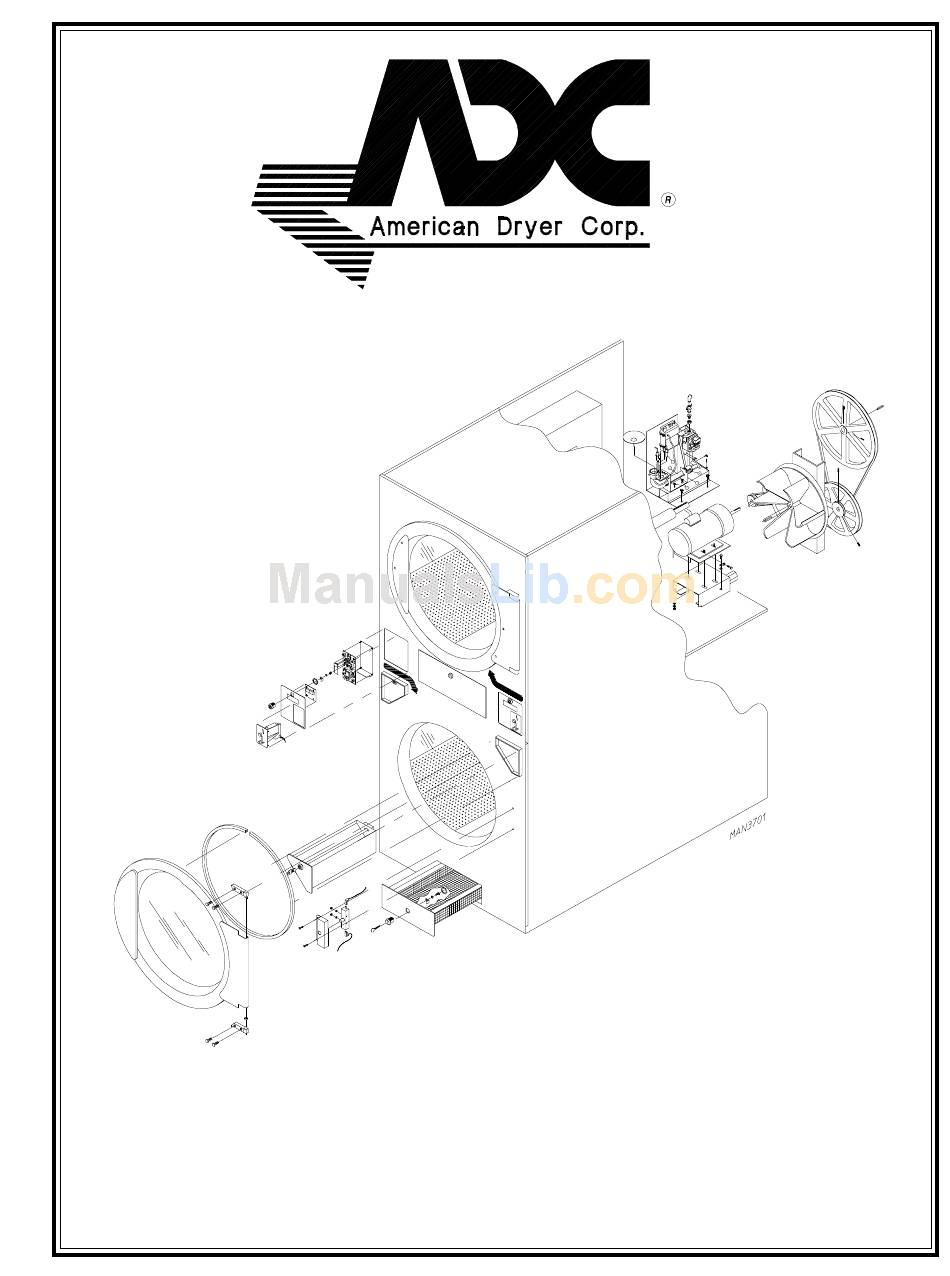

ADG-531HS
Hot Surface Ignition
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
e-mail: techsupport@amdry.com
www.amdry.com
Parts Manual
1998
ADC Part No. 450191

Advertisement

Table of Contents
loading

Related Manuals for American Dryer Corp. ADG-531HS

Summary of Contents for American Dryer Corp. ADG-531HS

  • Page 1 ADG-531HS Hot Surface Ignition Telephone: (508) 678-9000 / Fax: (508) 678-9447 Parts Manual American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 e-mail: techsupport@amdry.com www.amdry.com 1998 ADC Part No. 450191...
  • Page 2 These instructions must be posted in a prominent location near the dryer. POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. Important ADG-531HS MODEL NO. __________________________________________...

  • Page 3: Table Of Contents

    Coin Panel Assembly ... 2 Microprocessor 2-Piece (Computer) Panel/Coin Chute Assembly ... 3 Front Panel Assembly ... 4 Main Door “Steel’’ Assembly ... 5 Main Door Switch Assembly ... 6 Lint Drawer/Basket Assembly ... 7 Coin Box /Vault Assembly (Left and Right) ... 8 Lint Drawer Switch Assembly ...

  • Page 4: Coin Panel Assembly

    Illus. No. Part No. Qty. Description --------* Mueller Microprocessor Coin Acceptor Assembly Less Optic Switch and Switch Mounting Bracket 137056 Microprocessor Optic Switch 353269 Optic Switch Mounting Bracket...Not Illustrated 123005 Indicator Lamp - 24 VAC 881836 Coin Panel ONLY --------* Lock ONLY 353270 Lock Cam ONLY...

  • Page 5: Microprocessor 2-Piece (Computer) Panel/Coin Chute Assembly

    Microprocessor 2-Piece (Computer) Panel/Coin Chute Assembly Illus. No. Part No. Qty. 137106 150005 137104 136048 853071 853171 853170 881830 881484 Telephone: (508) 678-9000 Description Computer Board Phase 5 #6-32 x 1/4” Phillips Round Head Machine Screw Ribbon Cable Assembly (Display) 1/8-amp (Slo-Blo) Fuse Optic Switch Harness Computer Panel...

  • Page 6: Front Panel Assembly

    Illus. No. Part No. Qty. Description 881833 Almond Right-Hand Front Panel Assembly (includes illus. nos. 1, 7, and 8) 881834 Blue Right-Hand Front Panel Assembly (includes illus. nos. 1, 7, and 8) 881835 Red Right-Hand Front Panel Assembly (includes illus. nos. 1, 7, and 8) 881933 White Right-Hand Front Panel Assembly (includes illus.

  • Page 7: Main Door "Steel" Assembly

    Main Door “Steel” Assembly Illus. No. Part No. Qty. 881832 102349 170730 881152 150445 153031 881151 150445 151010 150120 102211 170730 Telephone: (508) 678-9000 Description Black Main Door Assembly Complete (includes illus. nos. 1, 2, and 8 through 10) Door Extruded Gasket Clear Gasket Adhesive (10.3 oz.

  • Page 8: Main Door Switch Assembly

    Illus. No. Part No. Qty. Description 153566 #6-32 x 7/8” Clinch Stud 152013 #6-32 Hex Nut 153010 #6 Star Washer 137005 Door Switch 122636 Flag Terminal 881211 Black Main Door Switch Housing ONLY 881153 Black Main Door Switch Housing Complete (includes illus.

  • Page 9: Lint Drawer/Basket Assembly

    Lint Drawer/Basket Assembly Illus. No. Part No. Qty. 881831 160015 160031 160104 117604 -------- Telephone: (508) 678-9000 Description Black Lint Drawer Assembly Less Lock and Hardware (includes illus. nos. 1 and 5) Lock Lock Cam ONLY Lock Key Noise Suppression Tape (sold by the foot) Lint Drawer Switch (refer to Lint Drawer Switch Assembly on page 9) Fax: (508) 678-9447...

  • Page 10: Coin Box/Vault Assembly (Left And Right)

    Illus. No. Part No. Qty. Description 881174 Black Left/Right Coin Box Faceplate ONLY 881476 Left Coin Box with Black Faceplate ONLY (less lock) 881474 Coin Box Lock Kit (includes two [2] locks with keys “keyed alike”) 160136 Coin Box Lock Keys ONLY 881477 Black Left Coin Vault ONLY 881174...

  • Page 11: Lint Drawer Switch Assembly

    Lint Drawer Switch Assembly Illus. No. Part No. Qty. 150301 853241 150301 353261 881494 122116 122636 122701 122605 881502 Telephone: (508) 678-9000 Description #8-18 x 7/16” Phillips Pan Head TEK Screw Lint Drawer Switch Panel #8-18 x 7/16” Phillips Pan Head TEK Screw Lint Drawer Bracket Lint Drawer Switch Box Assembly (includes illus.

  • Page 12: Microprocessor Temperature Sensor Bracket Assembly

    Illus. No. Part No. Qty. Description 853021 Sensor Bracket ONLY 881089 Microprocessor Temperature Sensor Bracket Assembly Complete (includes illus. nos. 1 through 6 and 9 through 12) 880251 Microprocessor Sensor Probe Assembly Complete (includes illus. nos. 2 through 6) 154007 1/4”...

  • Page 13: Basket (Tumbler) And Support Assemblies

    Basket (Tumbler) and Support Assemblies Illus. No. Part No. Qty. 881838 881839 301433 301434 150518 882050 153001 154210 800741 152004 153002 153001 116003 401010 Telephone: (508) 678-9000 Description Stainless Steel Basket (tumbler) and Support Assembly Complete with Felt Collar (includes illus. nos. 1 through 11) Stainless Steel Basket (tumbler) ONLY with Felt Collar Stainless Steel Short Basket (tumbler) Rib ONLY Stainless Steel Tall Basket (tumbler) Rib ONLY...
  • Page 14 Basket (Tumbler) Bearing Mount Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 15: Basket (Tumbler) Bearing Mount Assembly

    Basket (Tumbler) Bearing Mount Assembly Illus. No. Part No. Qty. 880203 880938 153005 152005 153004 153005 152005 880779 880938 824807 853040 152004 150621 150600 150501 153002 153001 150610 152004 153001 153002 150501 Telephone: (508) 678-9000 Description 1-3/8” Flange Bearing Cone Point Setscrew Kit...Not Illustrated 3/8”...

  • Page 16: Burner Train Assembly

    Burner Train Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 17: Burner Train Assembly

    ** Consult the factory for elevations over 2,000 feet. Telephone: (508) 678-9000 Description ADG-531HS Liquid Propane (L.P.) Gas Burner Assembly Complete Less Orifice (includes illus. nos. 1 through 12 and 14 through 20) ADG-531HS Natural Gas Burner Assembly Complete Less Orifice (includes illus.

  • Page 18: Burner Hi-Limit/Hood Assembly

    Illus. No. Part No. Qty. Description 881223 Hot Surface Ignition (HSI) Burner Hood 130401 330º Hi-Limit 150300 #10-16 x 1/2” Hex Washer TEK Screw 150300 #10-16 x 1/2” Hex Washer TEK Screw American Dryer Corporation Burner Hi-Limit/Hood Assembly 88 Currant Road / Fall River, MA 02720-4781...

  • Page 19: Sail Switch Assembly

    Sail Switch Assembly Illus. No. Part No. Qty. 150301 802800 802801 154004 150309 319203 122200 150303 105500 319202 154002 853105 Telephone: (508) 678-9000 Description #8-18 x 7/16” Phillips Pan Head TEK Screw Sail Switch Box with Cover and Bracket ONLY (includes illus.

  • Page 20: For 60 Hz Models Only

    Drive Motor Mount Assembly For 60 Hz Models ONLY American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 21: Drive Motor Mount Assembly

    Drive Motor Mount Assembly For 60 Hz Models ONLY Illus. No. Part No. Qty. 100718 101133 100171 101207 100156 181022 152004 153002 153001 853087 152005 150601 853042 152004 153002 153001 153001 153002 150501 881841 881840 Telephone: (508) 678-9000 Description 3/16” x 3/16” x 2-1/4” Key 2-1/4”...

  • Page 22: For 60 Hz Models Only

    Fan (Impellor)/Idler Bearing Assemblies For 60 Hz Models ONLY American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 23: Fan (Impellor)/Idler Bearing Assemblies

    Fan (Impellor)/Idler Bearing Assemblies For 60 Hz Models ONLY Illus. No. Part No. Qty. 100701 101206 152002 153007 154324 881361 881225 101129 154301 100705 301850 150529 --------- 880214 150617 153005 153004 152020 152004 150509 882776 153007 152002 881226 153004 153005 150508 153050 3 or 4...

  • Page 24: Drive And Idler Belts/Pulleys

    Illus. No. Part No. Qty. Description --------- Basket (tumbler) Support (refer to Basket [Tumbler] and Support Assemblies on page 11) 101100 18” Pulley Basket (tumbler) 154301 5/16-18 x 1” Allen (cone point) Setscrew 100713 1/4” x 1/4” x 7/8” Key 100106 5L-690 V-Belt 101206...

  • Page 25: Exhaust Duct Assembly

    Exhaust Duct Assembly Illus. No. Part No. Qty. 143536 143536 117505 881373 Telephone: (508) 678-9000 Description 6” x 45º Elbow 6” x 45º Elbow Duct Tape (sold by the foot)...Not Illustrated 6” x 45º Elbow with 6” Damper...Not Illustrated Fax: (508) 678-9447...

  • Page 26: Rear Electrical Panel Assembly

    Rear Electrical Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 27: Rear Electrical Panel Assembly

    Rear Electrical Panel Assembly Illus. No. Part No. Qty. 881792 881673 150301 152014 150301 136008 1 or 2 136049 136057 150301 1 or 2 132445 132447 150301 112025 353161 150301 122642 122643 122645 122643 122649 122643 150301 353153 112046 112014 112039 150008 120701...

  • Page 28: Rear Guard Assemblies

    Illus. No. Part No. Qty. Description 353147 Upper and Lower Back Guard 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 114001 “CAUTION - EXHAUSTED” Label 112086 “INSTALLATION INSTRUCTION” Label 103500 Leveling Leg American Dryer Corporation Rear Guard Assemblies 88 Currant Road / Fall River, MA 02720-4781...

  • Page 29: Additional Parts Available

    Additional Parts Available Part No. Description 117505 Aluminum Duct Tape (sold by the foot) 120903 Closed End Connector (crimp-on wire nut) 121026 Tab Receptacle Combination 121499 4” Wire Tie 121500 8” Wire Tie 122804 Manometer (used to measure gas pressure) 170730 Main Door Glass/Gasket Adhesive (10.3 oz.
  • Page 30 ADC 450191 3 - 08/22/05 -0...
