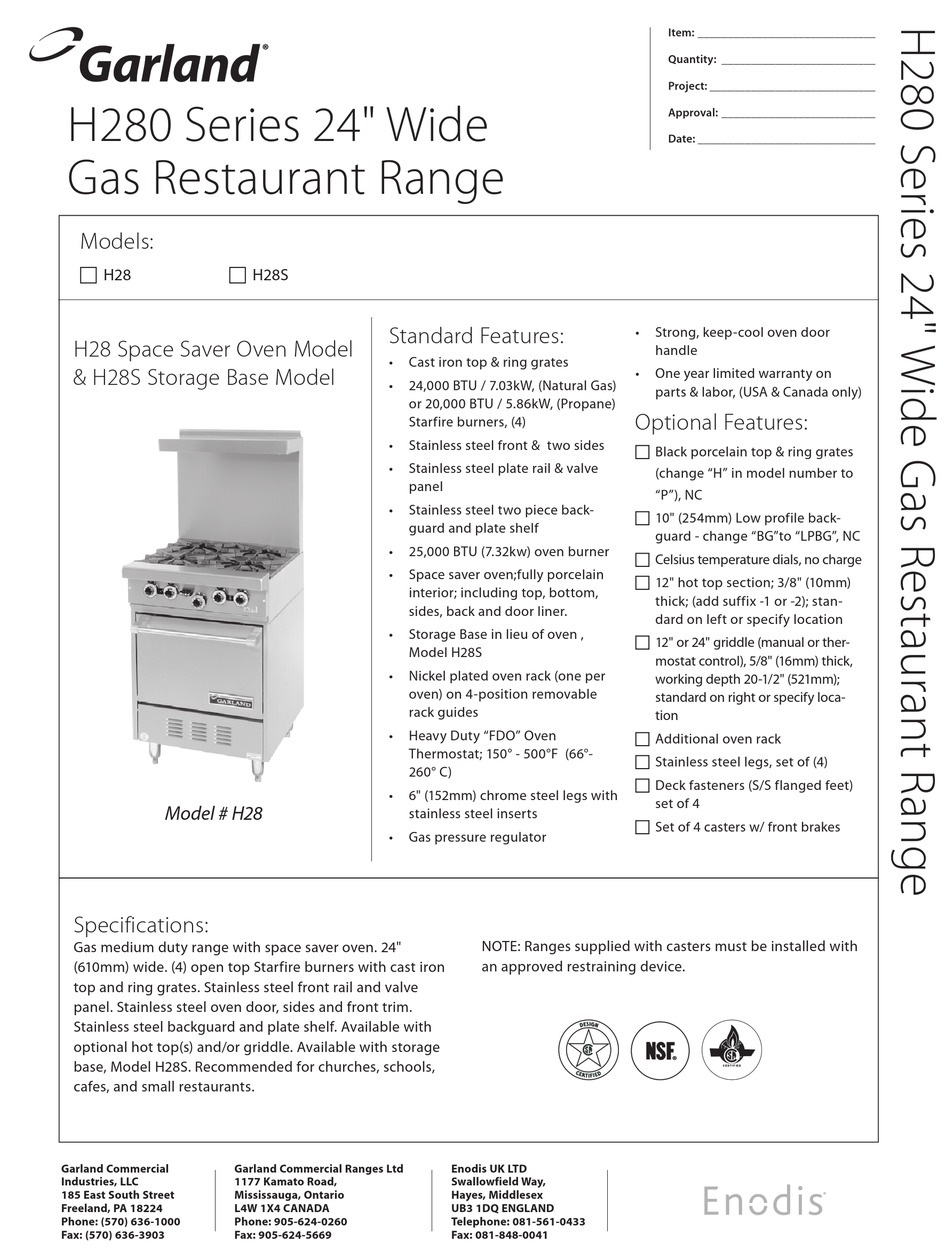

Garland H28 Specification

H280 Series 24" Wide
Gas Restaurant Range
Models:
 H28  H28S
H28 Space Saver Oven Model
& H28S Storage Base Model

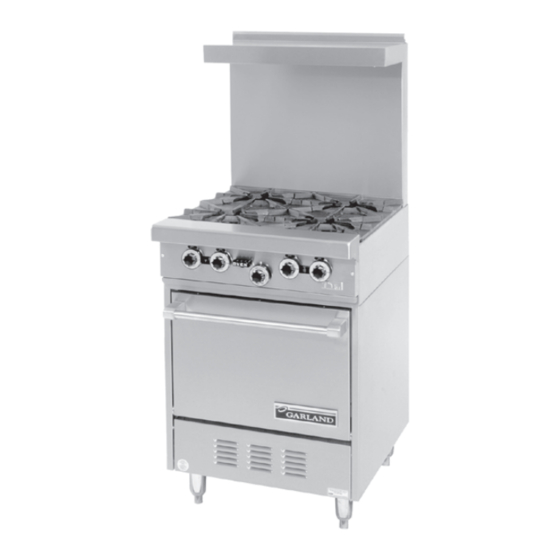

Model # H28

Specifications:

Gas medium duty range with space saver oven. 24"
(610mm) wide. (4) open top Starfire burners with cast iron
top and ring grates. Stainless steel front rail and valve
panel. Stainless steel oven door, sides and front trim.
Stainless steel backguard and plate shelf. Available with
optional hot top(s) and/or griddle. Available with storage
base, Model H28S. Recommended for churches, schools,
cafes, and small restaurants.
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669

Standard Features:

• Cast iron top & ring grates
• 24,000 BTU / 7.03kW, (Natural Gas)
or 20,000 BTU / 5.86kW, (Propane)
Starfire burners, (4)
• Stainless steel front & two sides
• Stainless steel plate rail & valve
panel
• Stainless steel two piece back-
guard and plate shelf
• 25,000 BTU (7.32kw) oven burner
• Space saver oven;fully porcelain
interior; including top, bottom,
sides, back and door liner.
• Storage Base in lieu of oven ,
Model H28S
• Nickel plated oven rack (one per
oven) on 4-position removable
rack guides
• Heavy Duty "FDO" Oven
Thermostat; 150° - 500°F (66°-
260° C)
• 6" (152mm) chrome steel legs with
stainless steel inserts
• Gas pressure regulator
NOTE: Ranges supplied with casters must be installed with
an approved restraining device.
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
• Strong, keep-cool oven door
handle
• One year limited warranty on
parts & labor, (USA & Canada only)

Optional Features:

 Black porcelain top & ring grates
(change "H" in model number to
"P"), NC
 10" (254mm) Low profile back-
guard - change "BG"to "LPBG", NC
 Celsius temperature dials, no charge
 12" hot top section; 3/8" (10mm)
thick; (add suffix -1 or -2); stan-
dard on left or specify location
 12" or 24" griddle (manual or ther-
mostat control), 5/8" (16mm) thick,
working depth 20-1/2" (521mm);
standard on right or specify loca-
tion
 Additional oven rack
 Stainless steel legs, set of (4)
 Deck fasteners (S/S flanged feet)
set of 4
 Set of 4 casters w/ front brakes
®
