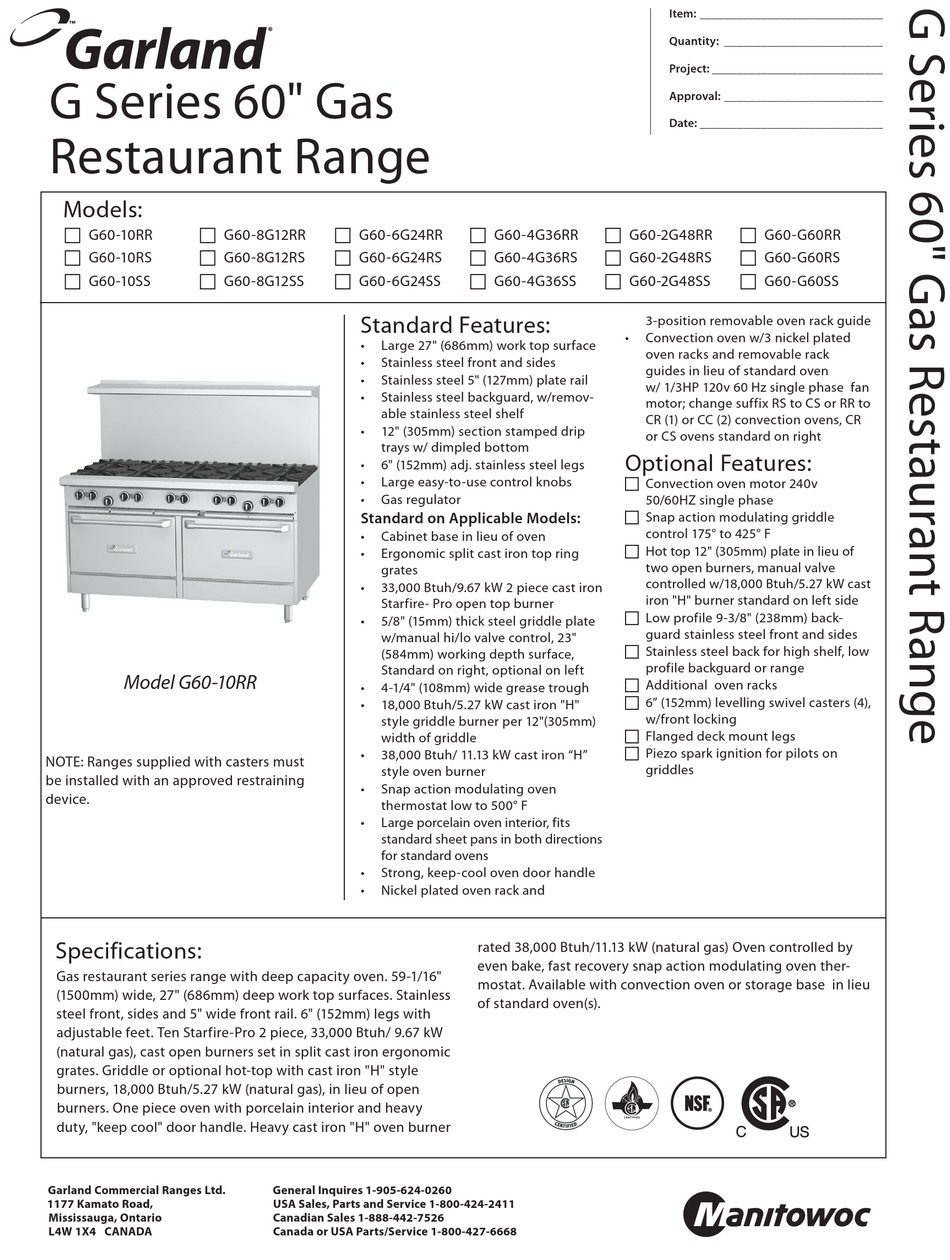

Garland G60-10RR Instruction Manual

G Series 60" Gas
Restaurant Range

Models:

 G60-10RR  G60-8G12RR
 G60-10RS  G60-8G12RS
 G60-10SS  G60-8G12SS

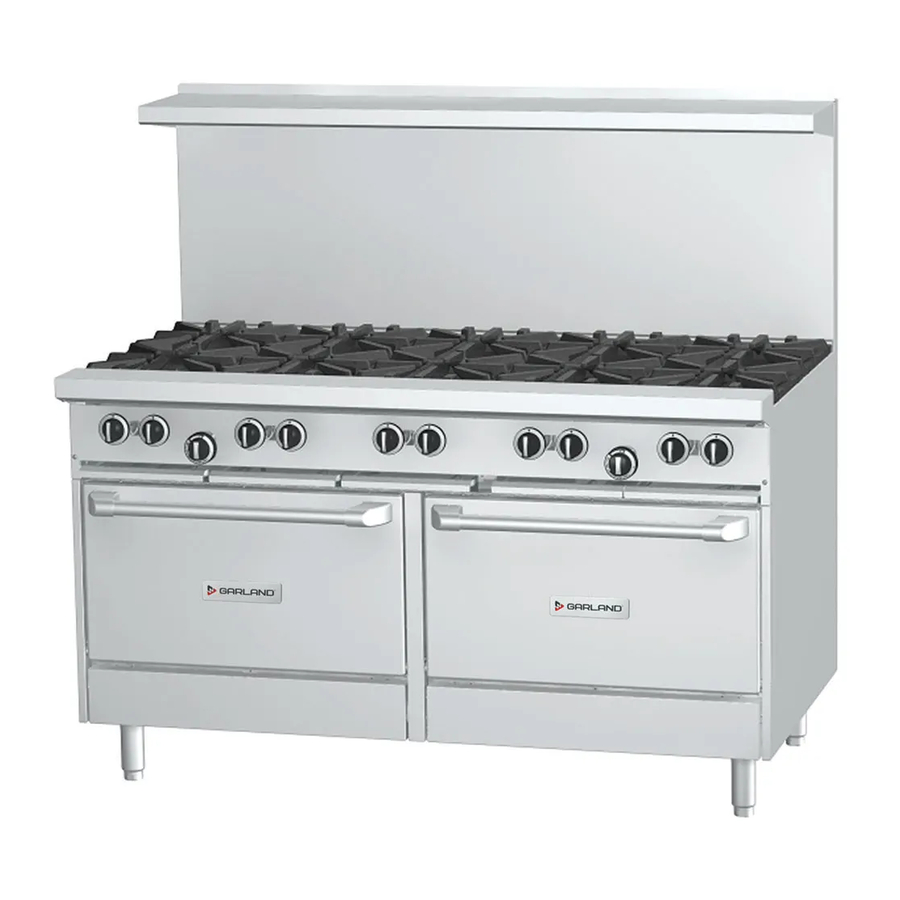

Model G60-10RR
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with deep capacity oven. 59-1/16"
(1500mm) wide, 27" (686mm) deep work top surfaces. Stainless
steel front, sides and 5" wide front rail. 6" (152mm) legs with
adjustable feet. Ten Starfire-Pro 2 piece, 33,000 Btuh/ 9.67 kW
(natural gas), cast open burners set in split cast iron ergonomic
grates. Griddle or optional hot-top with cast iron "H" style
burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of open
burners. One piece oven with porcelain interior and heavy
duty, "keep cool" door handle. Heavy cast iron "H" oven burner
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 G60-6G24RR
 G60-6G24RS
 G60-6G24SS

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, w/remov-
able stainless steel shelf
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator

Standard on Applicable Models:

• Cabinet base in lieu of oven
• Ergonomic split cast iron top ring
grates
• 33,000 Btuh/9.67 kW 2 piece cast iron
Starfire- Pro open top burner
• 5/8" (15mm) thick steel griddle plate
w/manual hi/lo valve control, 23"
(584mm) working depth surface,
Standard on right, optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H"
style griddle burner per 12"(305mm)
width of griddle
• 38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
• Snap action modulating oven
thermostat low to 500° F
• Large porcelain oven interior, fits
standard sheet pans in both directions
for standard ovens
• Strong, keep-cool oven door handle
• Nickel plated oven rack and
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
 G60-4G36RR  G60-2G48RR
 G60-4G36RS  G60-2G48RS
 G60-4G36SS  G60-2G48SS
3-position removable oven rack guide
• Convection oven w/3 nickel plated
oven racks and removable rack
guides in lieu of standard oven
w/ 1/3HP 120v 60 Hz single phase fan
motor; change suffix RS to CS or RR to
CR (1) or CC (2) convection ovens, CR
or CS ovens standard on right
Optional Features:
 Convection oven motor 240v
50/60HZ single phase
 Snap action modulating griddle
control 175° to 425° F
 Hot top 12" (305mm) plate in lieu of
two open burners, manual valve
controlled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
 Low profile 9-3/8" (238mm) back-
guard stainless steel front and sides
 Stainless steel back for high shelf, low
profile backguard or range
 Additional oven racks
 6" (152mm) levelling swivel casters (4),
w/front locking
 Flanged deck mount legs
 Piezo spark ignition for pilots on
griddles
rated 38,000 Btuh/11.13 kW (natural gas) Oven controlled by
even bake, fast recovery snap action modulating oven ther-
mostat. Available with convection oven or storage base in lieu
of standard oven(s).
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 G60-G60RR
 G60-G60RS
 G60-G60SS
