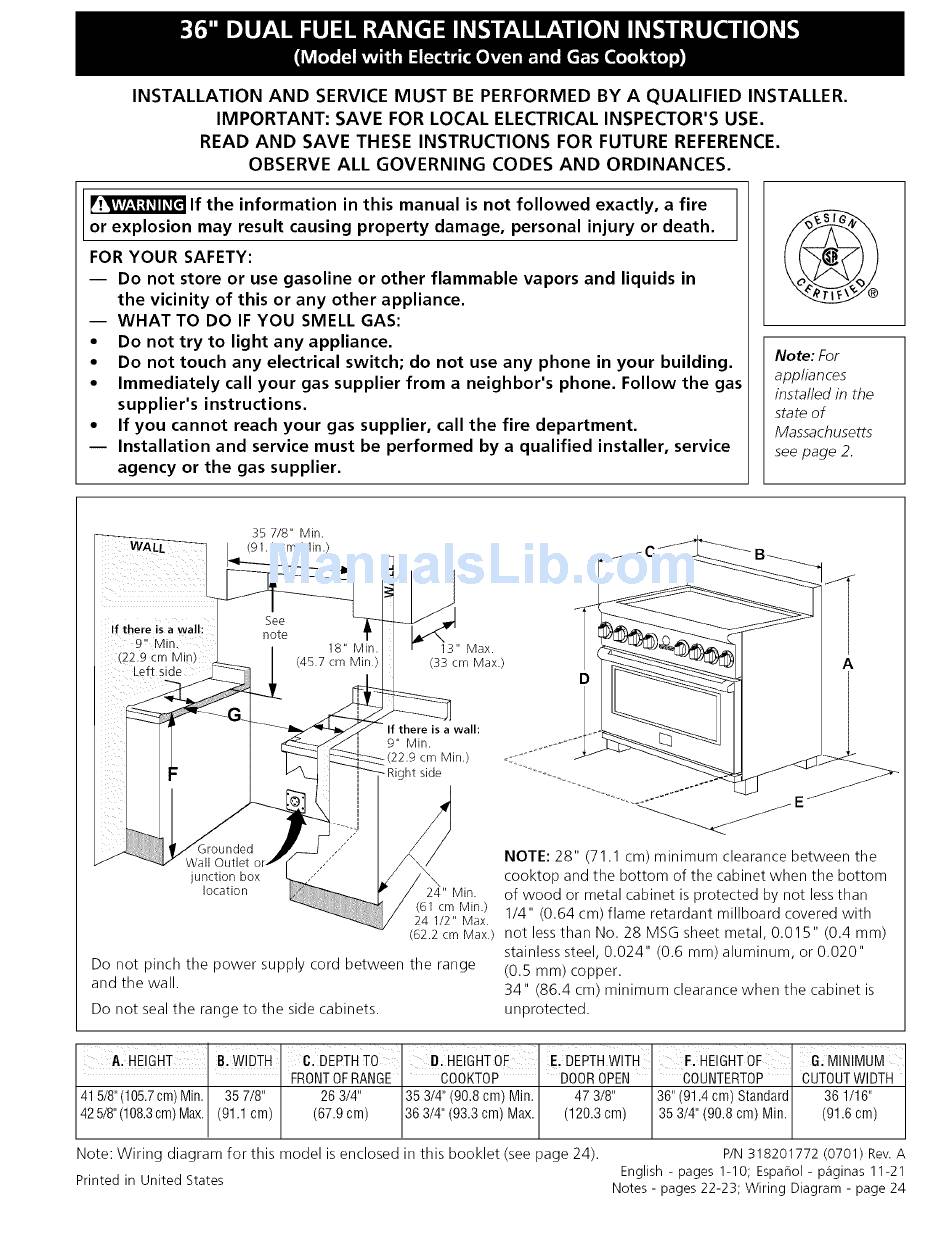

INSTALLATION
AND SERVICE MUST BE PERFORMED BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
If the information
in this manual
is not followed
exactly,
a fire
or explosion
may result causing property
damage,
personal
injury
or death.
FOR YOUR SAFETY:
--
Do not store or use gasoline
or other flammable
vapors and liquids in
the vicinity
of this or any other appliance.
--
WHAT
TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch
any electrical
switch; do not use any phone in your
building.
•
Immediately
call your
gas supplier
from a neighbor's
phone.
Follow
the gas
supplier's
instructions.
•
If you cannot
reach your
gas supplier,
call the fire department.
--
Installation
and service must be performed
by a qualified
installer,
service
agency
or the gas supplier.
Note: For
appliances
installed in the
state of
Massachusetts
see page 2.
ALL
35 7/8" Min.
(91.1 cm Min.)
13" Max.
(33 cm Max.)
A
If there is a wall:
9" Min.
-(22.9 cm Min.)
- Right side
Wall Outlet
junction box
location
24" Min.
(61 cm Min.)
24 1/2" Max.
(62.2 cm Max.)
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
NOTE: 28" (71.1 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.015" (0.4 ram)
stainless steel, 0.024" (0.6 ram) aluminum, or 0.020"
(0.5 ram) copper.
34" (86.4 cm) minimum clearance when the cabinet is
unprotected.
A. HEIGHT
,B. WIDTH
C. DEPTHTO
D. HEIGHTOF
, E. DEPTHWITH
'
FRONT OFRANGE
COOKTOP
DOOR OPEN
415/8"(105.7 cm)Min.
35 7/8"
26 3/4"
35 3/4" (90,8cm) Min.
47 3/8"
425/8"(108.3 cm)Max. (91.1cm)
(67.9cm)
363/4"(93.3cm) Max.
(120.3cm)
F. HEIGHT OF
6.
MINIMUM
COUNTERTOP
CUTOUT W IDTH
36"(91.4cm) Standard
36 1/16"
35 3/4" (90.8cm) Min.
(91.6cm)
Note: Wiring
diagram for this model is enclosed
in this booklet
(see page 24).
P/N 318201772 (0701) Rev. A
English - pages 1-10; Espanol- p_iginas 11-21
Printed in United States
Notes - pages 22-23; Wiring Diagram - page 24
