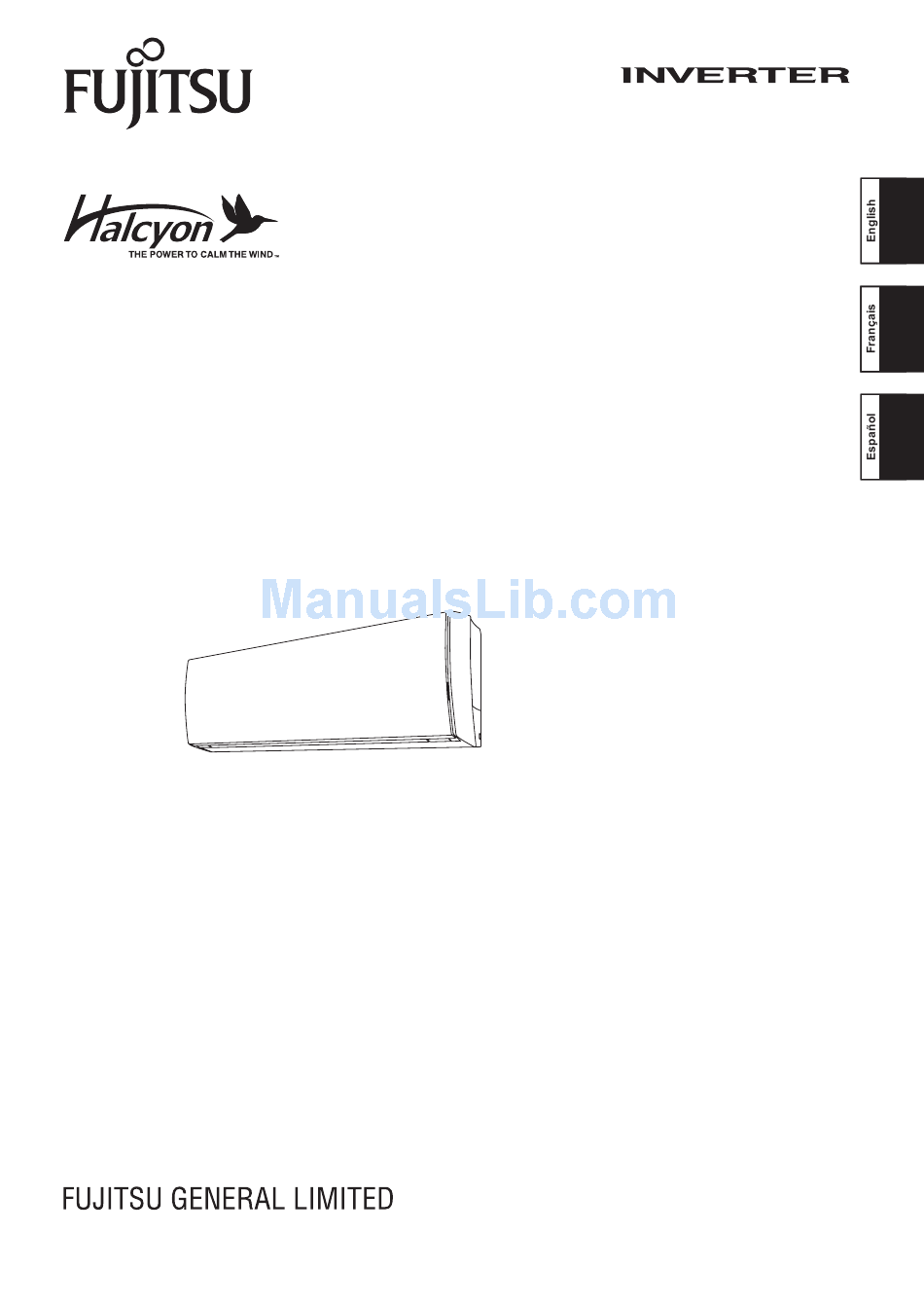

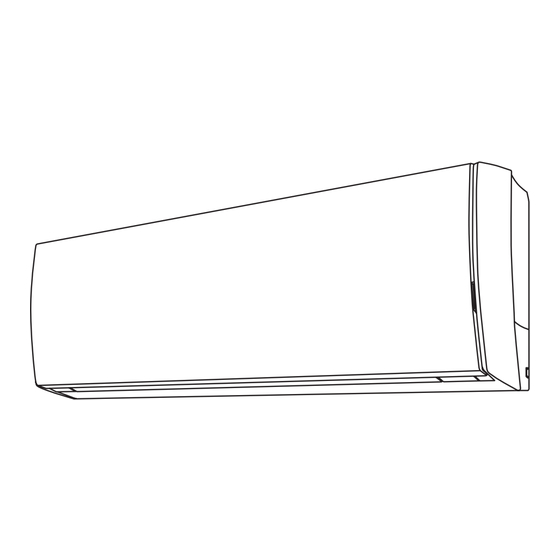

AIR CONDITIONER
Compact Wall Mounted Type
OPERATING MANUAL
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
KEEP THIS OPERATING MANUAL FOR FUTURE REFERENCE
CONSERVER CE MANUEL D'UTILISATION POUR POUVOIR LE CONSULTER ULTÉRIEUREMENT
CONSERVE ESTE MANUAL DE FUNCIONAMIENTO PARA FUTURA REFERENCIA
PART NO. 9319356075
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujitsu D’EMPLOI
Summary of Contents for Fujitsu D’EMPLOI
-
Page 1: Operating Manual
AIR CONDITIONER Compact Wall Mounted Type OPERATING MANUAL MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO KEEP THIS OPERATING MANUAL FOR FUTURE REFERENCE CONSERVER CE MANUEL D’UTILISATION POUR POUVOIR LE CONSULTER ULTÉRIEUREMENT CONSERVE ESTE MANUAL DE FUNCIONAMIENTO PARA FUTURA REFERENCIA PART NO. 9319356075... -
Page 2: Table Of Contents
CONTENTS PART No.9319356075 SAFETY PRECAUTIONS ............. 2 MIN. (Minimum) HEAT OPERATION ........12 FEATURES AND FUNCTIONS ..........3 OUTDOOR UNIT LOW NOISE OPERATION ....12 NAME OF PARTS ..............4 MANUAL AUTO OPERATION ..........12 PREPARATION ..............6 ON/OFF TIMER OPERATION ..........13 OPERATION ................. -
Page 3: Features And Functions
FEATURES AND FUNCTIONS ■ Energy saving and Comfortable function INVERTER SLEEP TIMER At the start of operation, large amount of power is used to When the SLEEP button is pressed during Heating mode, the bring the room quickly to the desired temperature. Afterward, indoor unit’s temperature setting is gradually lowered during the the air conditioner automatically switches to a low power set- period of operation;... -
Page 4: Name Of Parts
NAME OF PARTS INDOOR UNIT Intake Grille Open Panel It opens at the same time of operation, ● Before starting opera- and shuts when operation stops. tion, make sure that the intake grille has been ● Please do not touch by hand or put shut completely. - Page 5 : See page ► REMOTE CONTROLLER SENSOR button ► 10 Signal Transmitter MODE button ► 7 FAN button ► 7 SWING button ECONOMY button ► 9 ► 11 MIN. HEAT button OUTDOOR UNIT ► 12 LOW NOISE button SET button ►...
-
Page 6: Preparation
PREPARATION CAUTION Turn on the Power ● Take care to prevent infants from acciden- tally swallowing batteries. Turn on the circuit breaker ● When not using the Remote Controller for an extended period, remove the batteries to Load Batteries (AAA/R03/LR03 × 2) avoid possible leakage and damage to the unit. -
Page 7: Operation
OPERATION To Start Operation Press the START/STOP button The indoor unit’s OPERATION Indicator Lamp (green) will light. The air conditioner will start operating. To Select Mode Operation Press the MODE button to select the desired mode. Each time the button is pressed, the mode will change in the following order. AUTO COOL HEAT... - Page 8 OPERATION About AUTO CHANGEOVER Operation AUTO: ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate at very low speed for about a few minutes, during which time the indoor unit detects the room conditions and selects the proper operation mode. Room temperature is higher than the defi...
-
Page 9: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airfl ow is adjusted by pressing the Remote Controller's SET button. Horizontal (right-left) airfl ow direc- tion is adjusted manually, by moving the Airfl ow Direction Louvers. Whenever making horizontal airfl ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped. -
Page 10: Energy Saving Program
ENERGY SAVING PROGRAM This program automatically controls the temperature setting when there is no one in the room for a while, and prevents electricity from being wasted. To enable the ENERGY SAVING ENERGY SAVING is set at the time of purchase. Press the SENSOR button “... -
Page 11: Powerful Operation
POWERFUL OPERATION The product will operate at maximum power, which is convenient when you want to quickly cool down or warm up the room. Begin Air Conditioner operation before performing this procedure. To use POWERFUL Operation Press the POWERFUL button Only as for this button operation, the beep sound is different from the others. -
Page 12: Min. (Minimum) Heat Operation
MIN. (Minimum) HEAT OPERATION To use MIN. HEAT Operation Press the MIN. HEAT button While MIN. HEAT OPERATION is in The ECONOMY indicator lamp (green) will light. progress, only the following operation can be used. To stop MIN. HEAT Operation •... -
Page 13: On/Off Timer Operation
ON/OFF TIMER OPERATION ON TIMER : The air conditioner will start at the time you set. OFF TIMER : The air conditioner will stop at the time you set. Before using the timer function, be sure that the Remote Controller is set to the cor- rect current time. -
Page 14: Program Timer Operation
PROGRAM TIMER OPERATION The program timer allows you to integrate OFF timer and ON timer operations in a single sequence. The sequence can involve 1 transition from OFF timer to ON timer, or from ON timer to OFF timer, within a 24 hour period. Before using the timer function, be sure that the Remote Controller is set to the cor- rect current time. -
Page 15: Sleep Timer Operation
SLEEP TIMER OPERATION You can set the OFF TIMER to any time you want when you go to sleep. The product adjusts the temperature to make it suitable for sleeping, which helps you sleep comfortably. Once you set the time you want, you can easy set the timer to run from the next time, simply by pressing the SLEEP button once. -
Page 16: Weekly Timer Operation
WEEKLY TIMER OPERATION Using in these cases of WEEKLY timer The “OFF Timer” at which the operation will be stopped and the “ON Timer” at which the operation will be started can be combined, and up to 4 reservations (program ) can be applied for one day, and 28 reservations for a week. - Page 17 WEEKLY TIMER OPERATION To use WEEKLY timer operation Press the TIMER SETTING button Firstly, since “ ” will be fl ashing. Press the NEXT button Flashing the “ ” . Select the program and the day using the SELECT button Program 1Week Monday Program...
- Page 18 WEEKLY TIMER OPERATION Press the SELECT button to set the desired ON time or OFF time. If you selected OFF in step 3 1. Press the NEXT button to go back to step and confi gure the next setting. 2. Press the SEND button Press the NEXT button The time indicator / “...
- Page 19 WEEKLY TIMER OPERATION Check the schedule Press the TIMER SETTING button Firstly, since “ ” will be fl ashing. Press the NEXT button Check the program, the day, and the time with the SELECT button Press the TIMER SETTING button to return to the regular screen.
-
Page 20: Cleaning And Care
CLEANING AND CARE 3. Replace the air fi lters. CAUTION Align the sides of the air fi lter with the panel, and push in ● Before cleaning the indoor unit, be sure to turn it off and fully, making sure the 2 lower tabs are returned properly to disconnect the electrical breaker and so on. - Page 21 CLEANING AND CARE About the Air Cleaning Filters Install or Replace the Air Cleaning Filter ● When Air Cleaning Filters are used, the effect will increased 1. Open the intake grille and remove the air by setting the fan speed to “High”. fi...
-
Page 22: Troubleshooting
TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical WARNING breaker and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to turn off the electrical breaker to ensure that power is completely off. -
Page 23: Operating Tips
TROUBLESHOOTING Symptom Items to check See Page Doesn’t operate at all: ● Has the circuit breaker been turn off? — CHECK ONCE ● Has there been a power failure? MORE ● Has a fuse blown out, or a circuit breaker been tripped? ●... - Page 24 OPERATING TIPS Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit depending on model. The multi-type air conditioner allows multiple in- door units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output.
