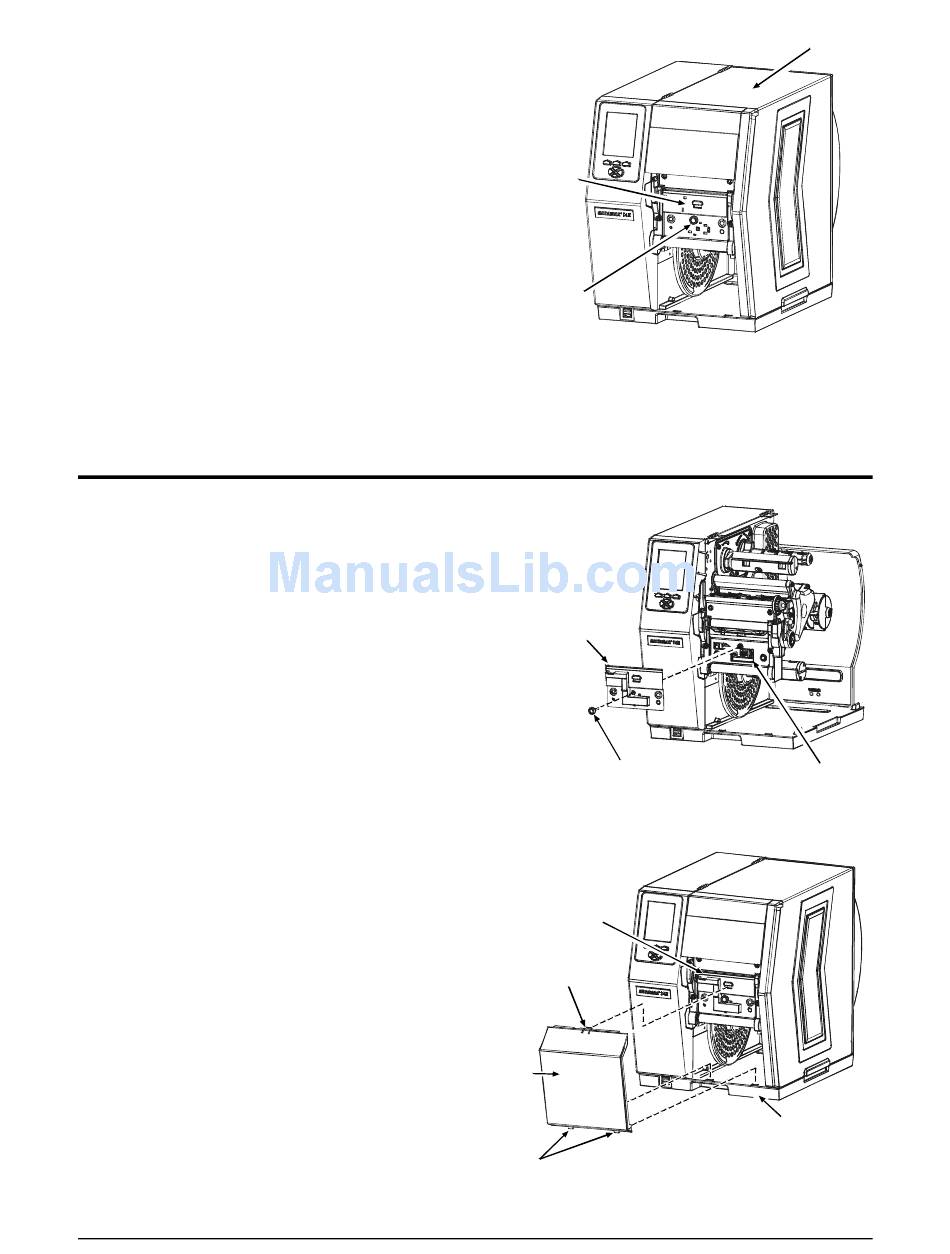

C) Raise the Access Cover and remove your
media from the printer.
D) Loosen and remove the Thumbscrew and
then remove the Tear Plate. (Alternately, if
equipped with an Arc Plate, Cutter, or Peel and
Present option, remove that device.)
Step 2: Installing the Present Sensor
A) Carefully press the Present Sensor Assembly
into the Front Plate Connector.
B) Secure the Present Sensor Assembly to the
printer using the previously removed
Thumbscrew.
C) Place the Tabs of the Door into the Base
Plate, and then press the Catch into the
Present Sensor Assembly.
Tear Plate
Thumbscrew
Present Sensor
Assembly
Thumbscrew
Present Sensor
Assembly
Catch
Door
Tabs
2
Access
Cover
Front Plate
Connector
Base Plate
