CONTENTS
SAFETY
TO
START
THINGS
COOKING
Features of Your Double Oven ..................................
4
Oven Controls (Upper Oven) .................................
5, 6
Lower Oven Controls .............................................
7, 8
Clock ............................................................................
5
Timer ............................................................................
5
To Bake ....................................................................
5-7
Oven Cooking Tips .....................................................
8
Broiling ........................................................................
9
Self-Clean Cycle .................................................
10, 11
Clean|ng Tips ............................................................
12
REMOVABLE
PARTS
........................................................................
13, 14
SERVICE
Before Calling for Service ..................................
14, 15
Temperature Adjustment
(Upper Oven) ......................................................
16
Temperature AdJustmen! (Lower Oven) ................. 17
Removal of Packaging Tape ....................................
11
WARRANTY
MODEL 41329
SEAl, S
Ken
USE .CARE .SAFETY
MANUAL
Advertisement
Table of Contents
Related Manuals for Kenmore Sears 41329 built-in oven
Summary of Contents for Kenmore Sears 41329 built-in oven
-

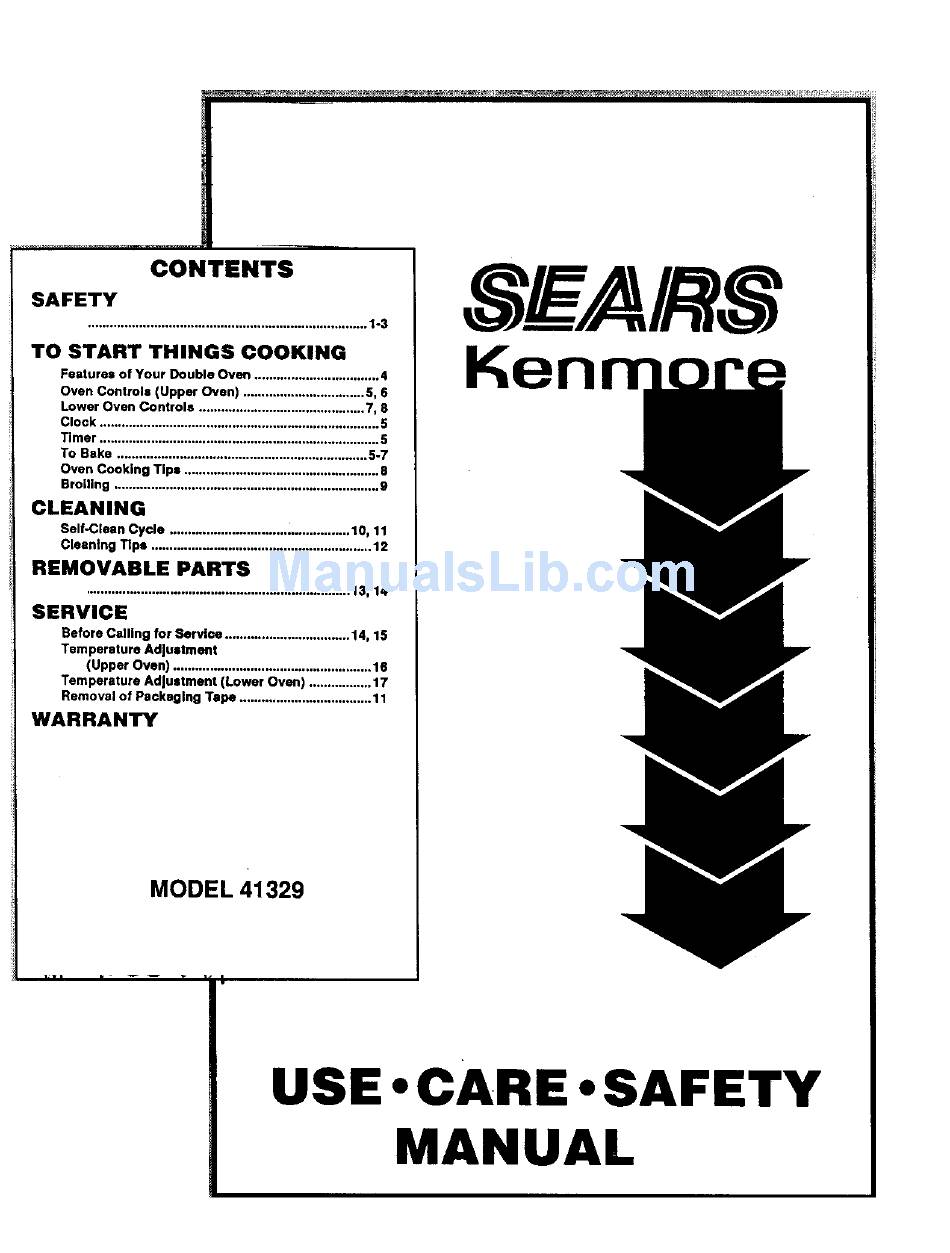

Page 1: Table Of Contents
SEAl, S CONTENTS SAFETY START THINGS COOKING Features of Your Double Oven ........Oven Controls (Upper Oven) ......... 5, 6 Lower Oven Controls ..........7, 8 Clock ................Timer ................To Bake ..............Oven Cooking Tips ............. Broiling ................ CLEANING Self-Clean Cycle .......... - Page 2 IMPORTANT INSTRUCTIONS FOR YOUR SAFETY SAVE THESE INSTRUCTIONS Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including following: Teach children not to play with oven knobs Never store things children might want above an oven.
- Page 3 carefully. Keep it handy for quick easy reference. Pay close attention to the safety sections of your manual. You can recognize the safety sections by looking for the _ symbol or the word "Safety". Never use your oven for warming Always keep the oven area clear and free heating a room.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Never heat unopened food containers. Pressure build- Keep this book for later use. up may make container burst and cause injury. Be sure your oven is installed and grounded properly Never leave jars or cans of fat or drippings on or near by a qualified technician.
- Page 5 YOUR BUILT-IN OVEN IMPORTANT= The model and serial number of your oven can be found on a tag, on the left side of the oven front frame, OVEN TEMP. KNOB OVEN SET KNOB (Lower Oven; (Lower Oven; LIGHT SWITCH See pages 7 & 9) See pages 7 &...
-
Page 6: Clock
RANGE CONTROL (UPPER OVEN) CANCELS BAKE, PROGRAM CLOCK / UP ARROW PAD STATUS TIMER TEMPERATURE FUNCTION (INCREASES TIME BROIL OR DISPLAY DISPLAY DISPLAY DISPLAY CLEAN OPERATION OR TEMPERATURE) DOWNARROW PAD PRESSTO TURN SET AUTOMATIC (DECREASESTIME TIMER ON AND OFF OVENOPERATIONS OR TEMPERATURE) Your range control Is touch controlled. - Page 7 DELAYED ON AND OFF: TO SET BROIL: 1. Press the BROIL pad. UBROIL" will flash and (- - -) You can set the oven to turn on and off automatically. will appear In the display. The control will calculate the time to start cooking. 2.
-
Page 8: To Bake
DISPLAY: TO ,BAKE IN LOWER OVEN Once you have programmed your control for any Turn OVEN SET knob to BAKE. operation, you can display the setting by pressing the Turn OVEN TEMP knob to the temperature in your appropriate pad. For example, if you are using the TIMER recipe. -
Page 9: Oven Cooking Tips
OVEN COOKING Be sure the underside of the pan Is shiny, too. When cooking a food for the first time in your new Darkened undersides will absorb the heat and may oven, use time given on recipes as a guide. cause over-browning on the bottom of your food. -
Page 10: Broiling
TO BROIL IN LOWER OVEN Most foods can be broiled st the HI Broil Setting. Select the LO Broil setting to avoid excessive browning or drylng of foods that should be cooked to the well-done stage (such as thick pork chops or poultry). POSITIONING BROILER Broiling Is cooking by direct heat from the broil element. -
Page 11: Cleaning
THE SELF-CLEAN CYCLE (Upper Oven Only) BEFORE A CLEAN CYCLE NOTE= 1. Remove the broll pan and grid, oven racks, all utensils and any foil that may be In the oven. Do not try to The door gasket Is designed with a 5" to 6" gap at the clean utensils or any other objects In the oven during bottom for proper air clrculetlon. -
Page 12: Self-Clean Cycle
TO SET SELF-CLEAN CYCLE: TO INTERRUPT A CLEAN CYCLE: 1. Close oven door. Press the CLEAN pad. The time display will show (---). See Fig. 1. You may need to 1. Push the CLEARJOFF pad. press slightly on the door. Follow Instructions under "WHEN... -
Page 13: Self-Clean Cycle ................................................. 10, 11 Clean|Ng Tips
CLEANING TIPS (continued...) Refer to the removable parts section when cleaning your oven. Warm water, a mild detergent and a soft cloth are safe to use on all cleanable parts of your oven. Do not use metal scouring pads, except where recommended. PART CLEANING MATERIALS... - Page 14 REMOVABLE OVEN DOOR 2. Slide the door down onto the hinges as far as It will go and close the door. To remove: 1. Open the door to the stop position (see Illustration). 2. Grasp the door at each side and lift up and off the hinges.
-
Page 15: Before Calling For Service
REMOVABLE KNOBS REPLACING OVEN KNOB All control knobs may be removed for easy cleaning by pulling the knob straight off the stem. Be sure that the knob Is In the OFF position before removal. • Hint: SIIpathlncloth(suchasahandkerchlef)oraplece of string under and around the knob edge and pull up. Caution: Read these instructions carefully before replacing the knobs. - Page 16 IEFORE CALLING SERVICE (continued...) PROBLEM POSSIBLE CAUSE DON'T CALL FOR SERVICE UNTIL YOU CHECK • Check broil pen placement. See broil- • Foods do not broil properly • Improper rack poslUon ing section. • Do not pmhaat when broiling. • Oven preheated •...
-
Page 17: (Upper Oven)
"DO.IT.YOURSELF" OVEN TEMPERATURE ADJUSTMENT (Upper Oven) 4. Use the UP pad to Increaee temperature. Press the You may feel that your new oven cooks differently than down arrow pad to decrease the temperature. the oven it replaced. We recommend that you use your new oven a few weeks to become more familiar with It, The temperature can be adjusted up to +35°F hotter following the times given in your mclpee as a guide. - Page 18 "DO-IT-YOURSELF" OVEN TEMPERATURE ADJUSTMENT (Lower Oven) To adjust temperature: 1. Turn OVEN SET knob to OFF and remove the oven temp knob by pulling straight oft. 2. Look at the back of the knob. The arrow pointing to the center of the upper screw Indicates the original factory setting.
- Page 19 NOTES...
- Page 20 "We Service What We Sell" Is our assurance to you that you can depend on Sears for service because Sears service Is nationwide. Your Kenmore Oven has added value when you consider that Sears has a service unit near you staffed by Sears trained technicians.., professional technicians speclficelly trained on Sears appliances, having the parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We Selll"...
