Kenmore 4802 - Elite 27 in. Wall Oven Use And Care Manual

Gas built-in oven.
Hide thumbs

Advertisement

®
GAS
ILT--I OVE
HORNO
E
Models, Modelos
790. 3055>',_"
.,_= Color number, nL_mero de color
!iI ...................
...........
ii . ......
=.==,====.=.._-..--_
Sears Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
www.sears.com
P/N 318200962
Rev. B (0909)

Advertisement

Table of Contents

   Related Manuals for Kenmore 4802 - Elite 27 in. Wall Oven

   Summary of Contents for Kenmore 4802 - Elite 27 in. Wall Oven

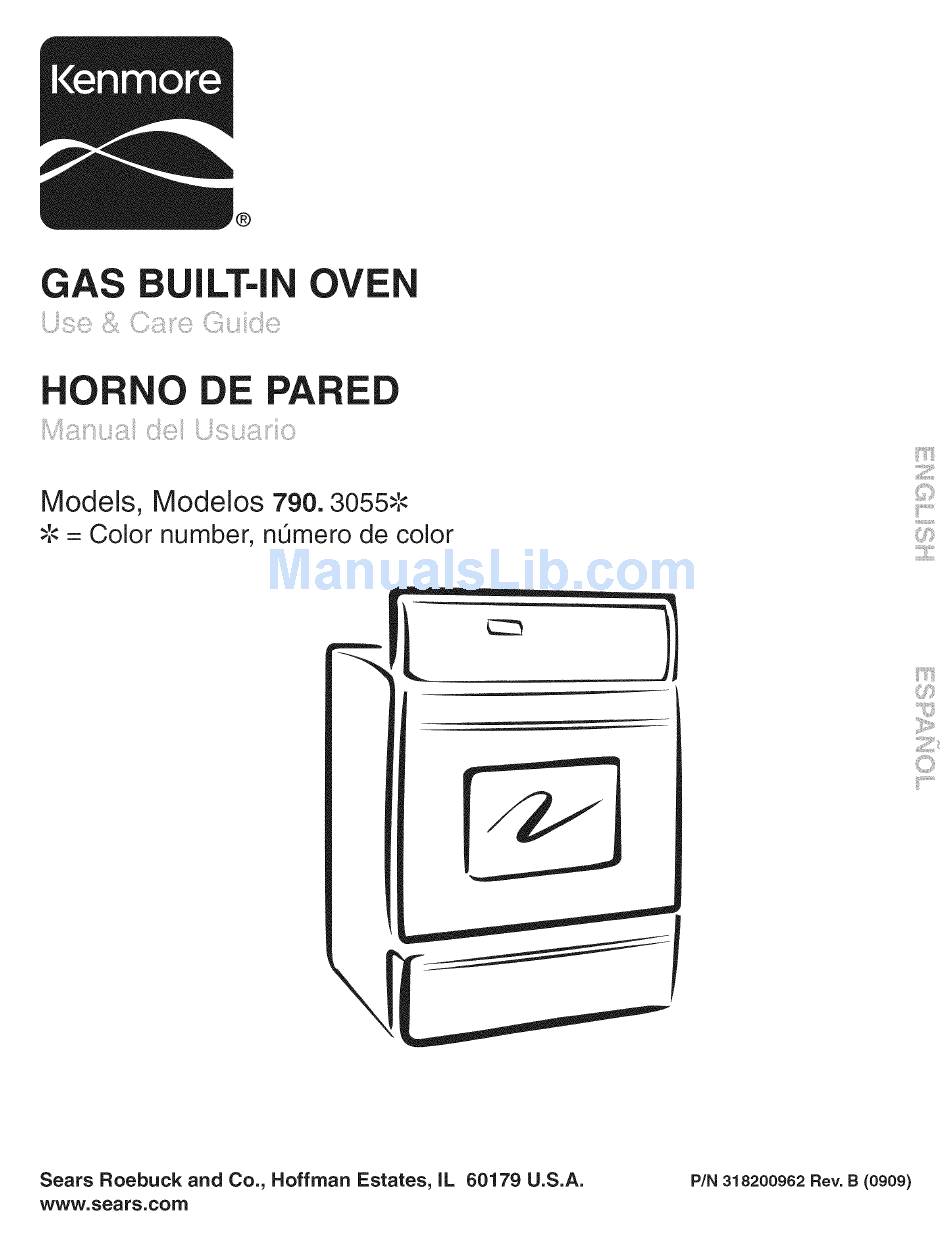

  • Page 1 ® ILT--I OVE HORNO Models, Modelos 790. 3055>',_" !iI ....,_= Color number, nL_mero de color ... ii ..=.==,====.=.._-..--_ Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. P/N 318200962 Rev. B (0909) www.sears.com...
  • Page 2: Table Of Contents

    Oven Vent and Racks ............Sears Service ..............Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
  • Page 3: Important Safety Instructions

    important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
  • Page 4 important Safety instructions had sufficient time to cool. Among these areas are the oven and grasp the rack with both hands to reposition. Do not vent openings, the surfaces near these openings, oven door, let pot holders contact the hot oven element or interior of window and broiler drawer.
  • Page 5: Grounding Instructions

    Grounding instructions (electric gn t on mode s on y) Avoid fire hazard or elec- iMPORTANT: READ AND SAVE THESE iNSTRUCTiONS. trical shock. Do not use an adaptor plug, an extension cord, or remove grounding This appliance is equipped with a 3-prong grounding plug prong from electrical power cord.
  • Page 6: Wall Oven Features

    Wall Oven Features Your Gas Wall Oven Features At a Glance Electronic Oven Controls with Clock and Kitchen Timer Oven Light Switch Gas Burner Interior Oven Light Self-Clean Oven-- Adjustable Oven Racks Door Handle Glass Front --Oven Door _torage drawer...
  • Page 7: Oven Vent And Racks

    Oven Vent and Racks Oven Vent Location Some models are equipped with a blower which runs in baking and self=cleaning mode to keep all internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until the _onents have cooled down.
  • Page 8: Control Pad Features

    Control Pad Features Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 9: Setting The Oven Controls

    Setting Oven Controls Note: The time of day must first be set in order To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 10 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press ..appears in the display. Within 5 seconds, press the _,,, or V.
  • Page 11 Setting Oven Controls (cont'd) To Set the Timed Bake Features COOKTIME DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start.
  • Page 12 Setting Oven Controls (cont'd) Oven Baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
  • Page 13 Setting Oven ControJs (cont'd) Broiling information Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. Always use a broiler pan and grid for broiling. Preheating Preheating the oven is suggested when searing rare steaks. (Remove all utensils from the oven before preheating.
  • Page 14 Setting Oven Controls (cont'd) Broil Broiling is a method of cooking tender cuts of meat by direct heat under the Grid broil element of the oven. Be sure you center your broiler pan directly under the broil element for best results. Arrange oven rack while oven is still cool.
  • Page 15: Self=cleaning

    Self-Cleaning During the self=cleaning ® • cycle, the outside of the oven can Coo< ..become very hot to the touch. DO NOT leave small children unattended near ® ® the appliance. Timer Del_xy I_I_EllEAv_ ¸¸ Se_:l st/off c _:,_ The health of some birds DO0_ LOCKED...
  • Page 16 Self-Cleaning (cont'd) Starting the Select Self-Clean Cycle To avoid possible For satisfactory results, use a 2 hour SeGClean cycle for light soils or a 3 burns use care when opening the hour cycle for average to heavy soils. NOTE: The kitchen area should be well oven door after the Self-Cleaning ventilated using an open window, ventilation fan or exhaust hood during the 1st cycle.
  • Page 17: General Care & Cleaning

    General Care & Cleaning Cleaning Various Parts of Your Oven Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIF- FICULTY OF MAJOR CLEANING LATER.
  • Page 18 General Care & Cleaning (cont'd) Removing and Replacing the Oven Door (Hinge A) The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. To Remove Oven Door: Open oven door completely (horizontal with floor - See Fig. 1). Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards the oven door (See Fig.
  • Page 19 General Care & Cleaning (cont'd) Removing and Replacing the Oven Door (Hinge B) Hinge lever hook _The door is heavy. For safe, temporary storage, lay the door flat with Hinge the inside of the door facing down. support To Remove Oven Door: 1.
  • Page 20: Adjusting The Oven Temperature

    General Care & Cleaning (cont'd) To Remove and Replace Oven Bottom Burner HorizontaJ Lift To Remove the Oven Bottom: Ove n Baffle Bottom Lift up the lift tab at the back of the oven bottom Slide oven bottom out, and lift it up and out. To Replace the Oven Bottom: Slide horizontal tabs on back of oven bottom into the holes at the back of oven cavity.
  • Page 21: Before You Call

    Before You Call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Oven Control Beeps and Electronic control has detected a fault condition.
  • Page 22: Protection Agreements

    Enhorabuena por haber hecho una compra inteligente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmordeproduct is designed and manufactured for years of fiable. Pero, come cualquier producto, puede necesitar...
  • Page 23: Notes

    Notes !iI ......ii ..
  • Page 24 Your Home For expert troubleshooting and home solutions advice: @anag@ www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
