Host computer or KVM switch

The AdderView Prism can either connect directly to a single host computer or to
range of hosts via one or more KVM switches.
To connect a host computer or KVM switch
1 Ensure that power is disconnected from the computer or KVM switch to be
connected.
(Note: If it is not possible to switch off devices prior to connection, then
a 'Hot plug' procedure is available – see the
restoration section for more details).

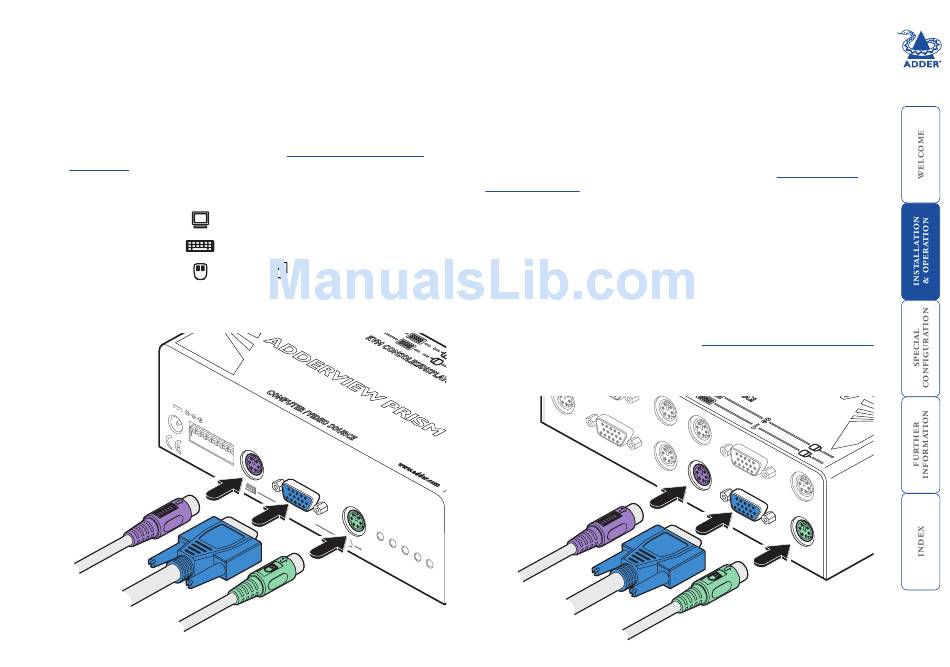

2 Connect the plugs at one end of a KVM cable set to the keyboard, video
and mouse sockets of the computer or KVM switch.
Monitor (video)
Keyboard
Mouse
3 Connect the plugs at the other end of the KVM cable set to the corresponding
sockets, collectively labelled as 'COMPUTER', on the front panel of the
AdderView Prism.
5 V
1 . 5
A
1
O N 2
3
4
O P
T I O
I n d
o o
r u
From
keyboard
port
From video port
From mouse port
Hot plugging and mouse
Blue
Purple
or Mid green
5
6
7
8
N S
s e
o n
l y
C O
M P
U T
E R
1

Keyboards, video monitors and mice

The rear panel provides sets of ports (either two or four, depending on the
AdderView Prism model) and each accommodates a keyboard, video monitor
and mouse connection.
The ports can be connected and used in any order (see note 2 below), and not
all connectors of each port need to be used. For instance, when AdderView
Prism is used as a video splitter, usually only the video connections are utilised.
Where a user will be situated close to the AdderView Prism, the keyboard, video
monitor and mouse can be connected directly. When a user will be placed some
distance away, then an extender cable should be used. See
additionally need
Note 1: In square matrix configurations, these rear panel ports would be
connected to the CPU/computer ports of suitable KVM switches.
Note 2: At power on, AdderView Prism attempts to gain information about
the capabilities of connected monitors (using the Display Data Channel [DDC]
format) by interrogating the monitor at port 1. If you are using a mixture of
monitors, it is advantageous to place one that supports DDC at port 1.
To connect a keyboard, video monitor and mouse
1 Position a suitable keyboard, video monitor and mouse in the required
location. Where the distance to the AdderView Prism is greater than the cable
lengths use suitable extender cables (see
2 Connect the keyboard, video monitor and mouse plugs to the sockets
of one of the ports (labelled between 1 and 4) at the rear panel of the
AdderView Prism.
2
3
4
P W
R
From
keyboard
From video monitor
From mouse
for part numbers.
What you may additionally
What you may
need).
7
