Installation and Operation

Mounting

AdderView Prism offers two main mounting methods:
• Supplied four self-adhesive rubber feet
• Optional rack mount assembly to hold up to eight 4-port AdderView Prism
units or up to sixteen 2-port AdderView Prism units.

Connections

Installation of the AdderView Prism involves a number of basic connections to
some or all of the following items:
• Host computer or KVM switch
• Keyboards, video monitors and mice
• Power supply (use is optional)

Cable lengths

The AdderView Prism uses high quality powered circuitry to prevent signal
degradation. When used in conjunction with the accompanying power supply,
this means that you can use relatively long cable links between the AdderView
Prism, the system and the user console or KVM switch. The lengths of cables
that can be used for given situations are summarised below.
Video resolutions of up to 1600 x 1280 are supported on longer cable lengths
while higher resolutions of up to 1900 x 1440 may be used with shorter links.
The AdderView Prism also features a video boost feature to ensure that picture
quality remains sharp over longer distances. See
Video signal boost (switch 2) for more information.

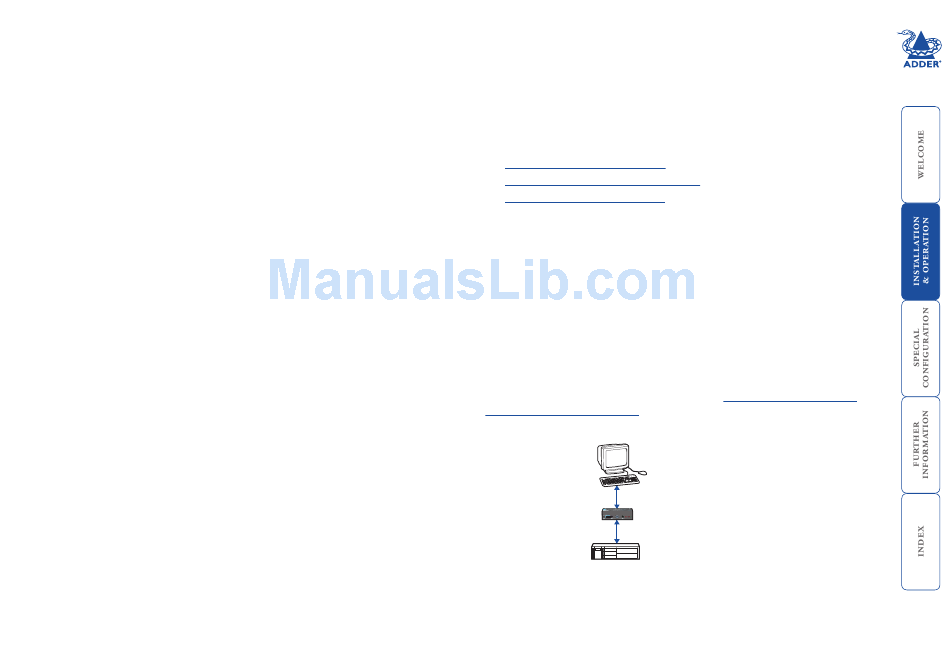

Cable position
AdderView Prism to Console
5V
1 2 3 4 PWR
ON 2 3 4 5 6 7 8 1
1.5A OPTIONS
Indoor use only COMPUTER
AdderView Prism to System
Note: The total cable length (from system through to console) should not exceed 30m.
* Cable lengths can be increased to 5m when used in square matrix formation (in conjunction
with KVM switches).
** For video only applications (i.e. without keyboard or mouse), any 'video only' link cable may
be up to 30m long provided the overall cable run (i.e. including the cable on the other side of the
AdderView Prism) does not exceed 32m.
Configuration switches -
Used without Used with
power supply power supply
2m* 10m**
2m 20m**
6
