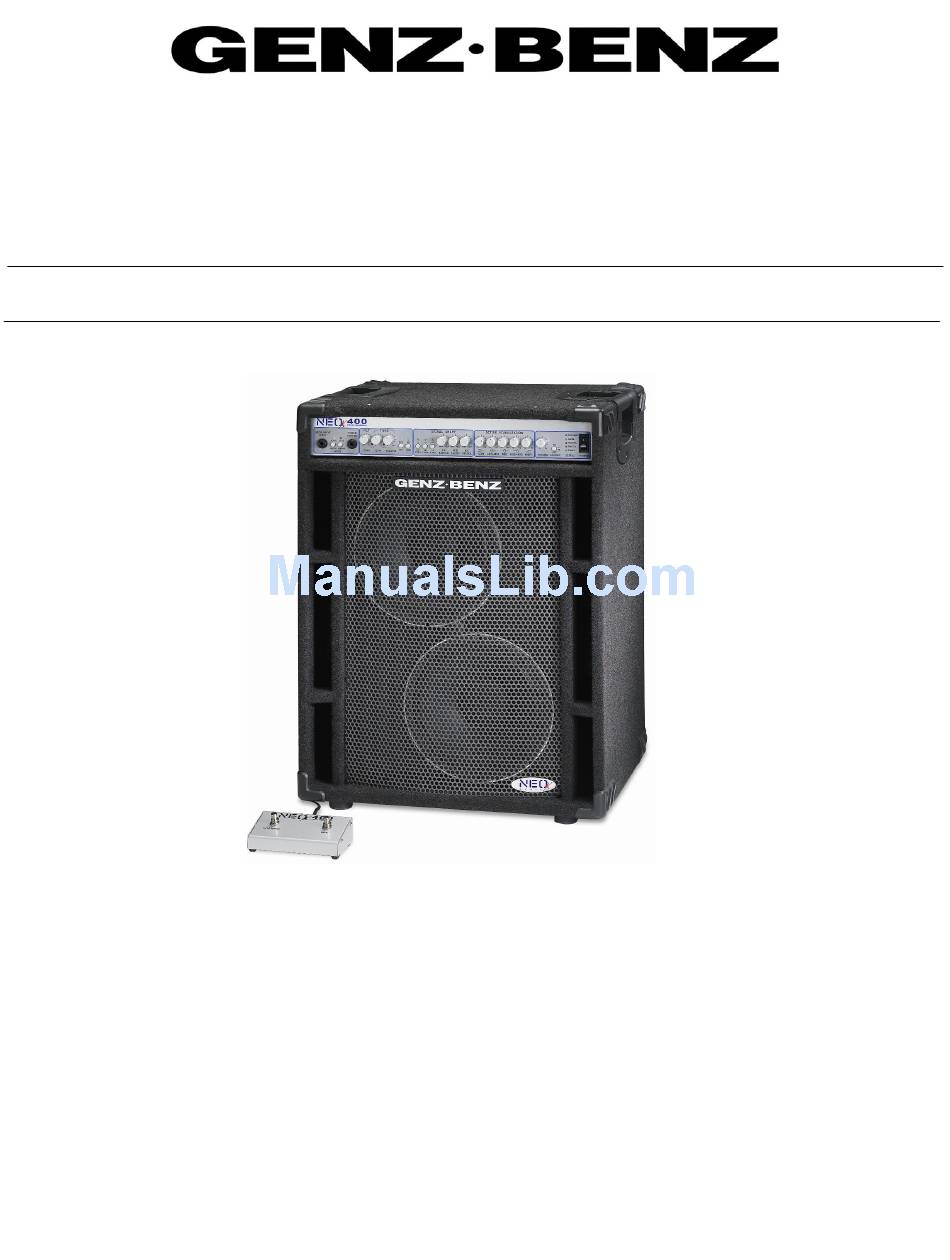

NEOX400-210T
O W N E R ' S
M A N U A L
CONGRATULATIONS !
Your new NEOX400-210T Combo is designed with the power, features and performance that
today's professional bassists desire.
The solid yet lightweight cabinet construction and powerful Neodymium dual 10", 250 watt
loudspeakers provide a solid platform for the versatile, compact NEOX400 amplifier. The circuit
design, features and physical layout have been carefully calculated to deliver the best performance
and reliability in bass guitar amplification.
The NEOX400-210T features sturdy jacks and controls, 12AX7 tube and solid state FET preamps,
footswitchable channels, tone shaping filters, 5-band active EQ, a balanced direct output and an
industrial duty bipolar power amplifier with Toroidal power transformer, providing the tools and
versatility to sound your very best on stage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Genz Benz NEOX400-210T
Summary of Contents for Genz Benz NEOX400-210T
- Page 1 The NEOX400-210T features sturdy jacks and controls, 12AX7 tube and solid state FET preamps, footswitchable channels, tone shaping filters, 5-band active EQ, a balanced direct output and an industrial duty bipolar power amplifier with Toroidal power transformer, providing the tools and versatility to sound your very best on stage.
- Page 2 TECHNICAL INFORMATION The first stage of the NEOX400-210T preamp uses a low noise bi-fet linear scaling amplifier with a 2 pole low cut point at 23 Hz to prevent excessive speaker cone excursion and intermodulation distortion. Additional bandwidth roll-off is provided at 20 kHz for RFI suppression. The variable gain stages are a feedback-divider type control, one of which is all solid state and the other utilizing a cathode follower (tube), each providing a maximum gain of about 30 dB.
- Page 3 Input Signal Mute Switch — The input on the NEOX400-210T bass amplifier includes an “input mute switch. With this switch, you can place the amplifier (and the direct output) in standby mode between sets without having to change any of your volume settings.
- Page 4 LED will illuminate for approximately 3 seconds during power switch-on and switch-off. It is normal to glow while continuing to monitor the internal conditions for about 3 seconds after the protection relay has closed. It will also illuminate during any internal fault condition. If this happens, turn the amp off and consult a repair technician.
- Page 5 The “mute switch will shut this output down when engaged. Foot Switches — The NEOX400-210T is fitted with jacks for two different types of footswitch. The 2-button footswitch (included) controls channel switch and channel mix functions. Any standard latching 2-button footswitch with TIP-RING-SLEEVE connector will work, provided there are no LEDs in the switching path.
- Page 6 3 years. Genz Benz Enclosures warrants the NEOX400-210T speaker enclosures and electronics to be free from defects in materials and workmanship, for a period of 3 years from the date of purchase, when purchased from an authorized Genz Benz dealer.
