GETTING START-
SECTION
WAYPOINTS
ED
7
Proximity Waypoints
Using the GOTO
Key
A
B
A. Whenever you enter a proximity waypoint's alarm
circle, a 'PRX' indicator will appear in the status
bar (the alarms option must be set to the 'On'
position). Once you've left the alarm circle, the
proximity indicator will automatically reset.
B. To clear all proximity waypoints, select the 'Clear
All?' option from the proximity options page. Finish
the deletion by confirming the 'Yes' prompt.
60

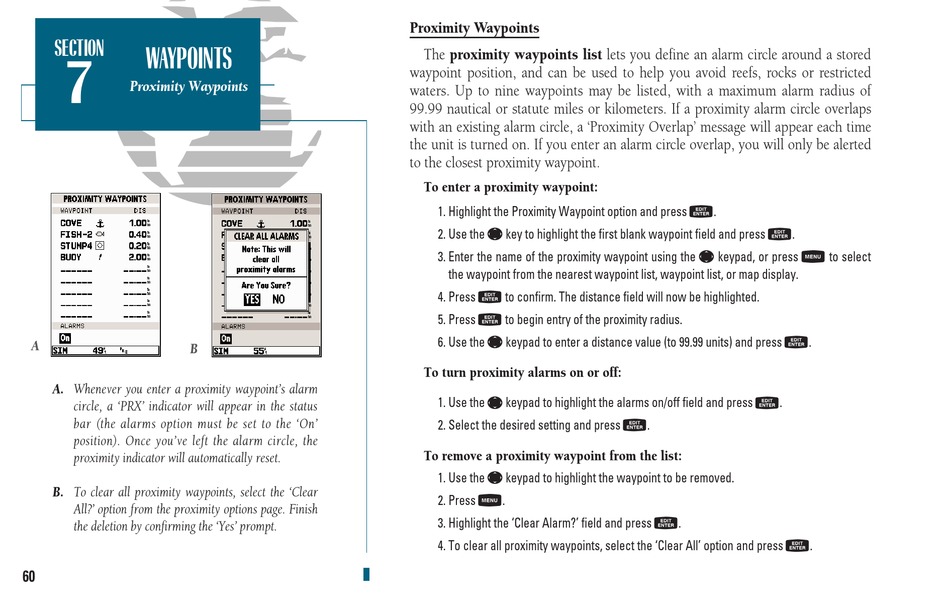

Proximity Waypoints
The proximity waypoints list lets you define an alarm circle around a stored
waypoint position, and can be used to help you avoid reefs, rocks or restricted
waters. Up to nine waypoints may be listed, with a maximum alarm radius of
99.99 nautical or statute miles or kilometers. If a proximity alarm circle overlaps
with an existing alarm circle, a 'Proximity Overlap' message will appear each time
the unit is turned on. If you enter an alarm circle overlap, you will only be alerted
to the closest proximity waypoint.
To enter a proximity waypoint:
1. Highlight the Proximity Waypoint option and press
R
2. Use the
key to highlight the first blank waypoint field and press
3. Enter the name of the proximity waypoint using the
the waypoint from the nearest waypoint list, waypoint list, or map display.
T
4. Press
to confirm. The distance field will now be highlighted.
T
5. Press
to begin entry of the proximity radius.
R
6. Use the
keypad to enter a distance value (to 99.99 units) and press
To turn proximity alarms on or off:
R
1. Use the
keypad to highlight the alarms on/off field and press
2. Select the desired setting and press
To remove a proximity waypoint from the list:
R
1. Use the
keypad to highlight the waypoint to be removed.
O
2. Press
.
3. Highlight the 'Clear Alarm?' field and press
4. To clear all proximity waypoints, select the 'Clear All' option and press
T
.
T
.
R
keypad, or press
T
T
.
T
.
T
.
T
O
to select
.
.
