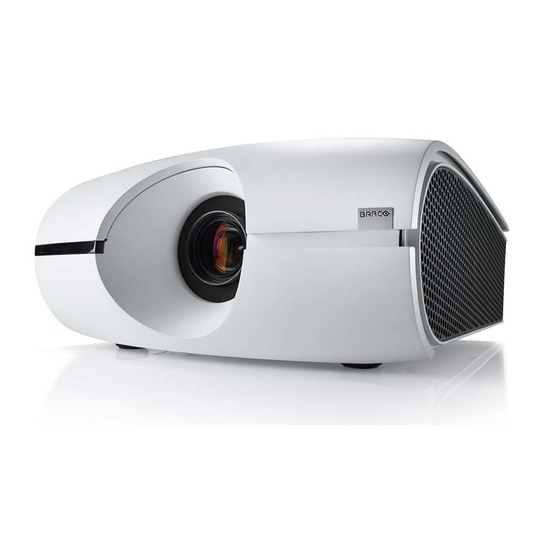

Barco PFWX-51B User Manual
  1. Manuals
  2. Brands
  3. Barco Manuals
  4. Projector
  5. PFWX-51B
  6. User manual

Barco PFWX-51B User Manual

Hide thumbs Also See for PFWX-51B:
Table of Contents

Advertisement

Quick Links

PFWX-51B & PFWU-51B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFWX-51B and is the answer not in the manual?

Questions and answers

Related Manuals for Barco PFWX-51B

Summary of Contents for Barco PFWX-51B

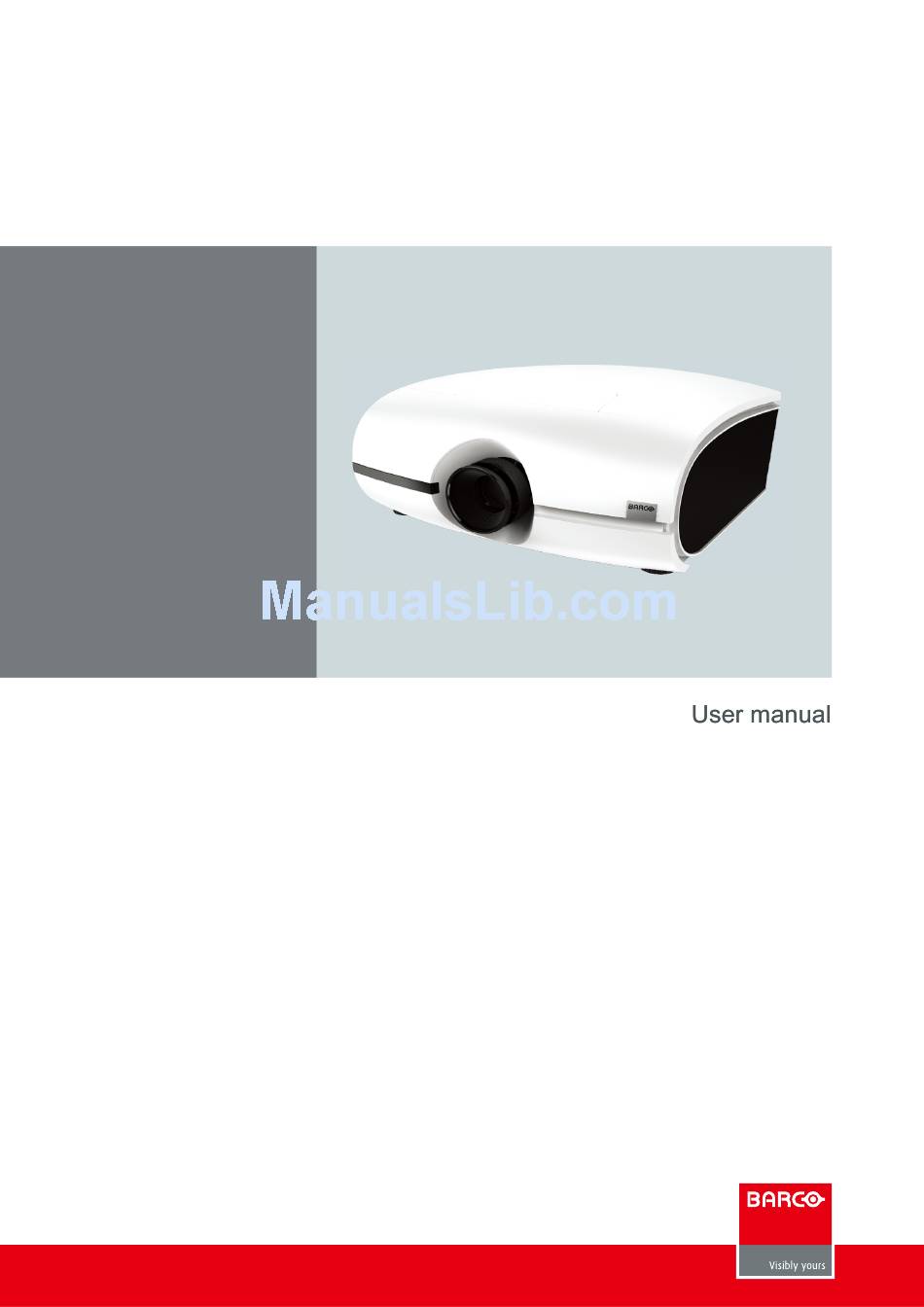

  • Page 1 PFWX-51B & PFWU-51B...
  • Page 2 Barco nv Projection Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in China...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY 1.1 General considerations 1.2 Important safety instructions 2. GENERAL 2.1 Installation requirements 2.2 Unpacking the projector 2.3 Initial inspection 2.4 Projector configurations 2.5 Projector air inlets and outlets 2.6 Installation process overview 3. PHYSICAL INSTALLATION 3.1 Remote control unit (RCU) 3.2 Lenses 3.3 Connecting the projector with the power net...
  • Page 5 TABLE OF CONTENTS 5.7 Changing OSD language 5.8 Adjusting the lens by horizontal and vertical lens shift 5.9 Introduction the OSD Lite on screen 6. ADVANCED OSD MENU 6.1 How to activate the Advanced OSD menu 6.2 How to navigate in the Advanced menu structure? 6.3 Advanced menu memory 7.
  • Page 6 10.2 Clean the dust 10.3 Cleaning the lens 10.4 Cleaning the exterior of the projector 10.5 Simple troubleshooting 11. PROJECTOR SPECIFICATION 11.1 PFWU-51B Specifications 11.2 PFWX-51B Specifications 11.3 Standard Source Files 11.4 Dimension 12. ENVIRONMENTAL INFORMATION 12.1 Disposal information 12.2 Rohs compliance...

  • Page 7: Safety

    Read and follow these “warnings” and “cautions” as well. 1.1 General considerations When referring in this document to the term “PRESENT SERIES” means that the content is applicable for following Barco products: • PFWX-51B •...

  • Page 8: Important Safety Instructions

    The term USER and OPERATOR refers to any person other than SERVICE PER- SONNEL, AUTHORIZED to operate professional projection systems. A PFWX-51B/PFWU-51B projector is intended "FOR PROFESSIONAL USE ONLY" by AUTHORIZED PERSONNEL familiar with potential hazards associated with high voltage, high intensity light beams, ultraviolet exposure and high temperatures generated by the lamp and associated circuits.
  • Page 9 • Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 10 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part.

  • Page 11: General

    Observing the specification mentioned in this chapter is critical for projector performance. Neglecting this can result in loss of warranty. 2.1 Installation requirements Environment conditions Table below summarizes the physical environment in which the PFWX-51B/PFWU-51B projector may be safely operated or stored. Environment Operating...

  • Page 12: Unpacking The Projector

    Main Power requirements The PFWX-51B/PFWU-51B projector operates from a nominal mono phase power net with a separate earth ground PE. Projector...

  • Page 13: Initial Inspection

    Save all packing material until the inspection is completed. If damage is found, file claim with carrier immediately. The Barco Sales and Service office should be notified as soon as possible.

  • Page 14: Projector Configurations

    Rear / Table (R/T) Rear / Ceiling (R/C) (upside down) Front projection The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the audience. AUDIENCE FLOOR Front projection PFWX-51B/PFWU-51B 07/08/2013...

  • Page 15: Rear Projection

    The lens can be shifted with respect to the DMD (P) which result in a shifted image on the screen (Off-Axis). A 100% shift means that the centre point of the projected image is shifted by half the screen size. In other words, the centre point of PFWX-51B/PFWU-51B 07/08/2013...

  • Page 16: Projector Air Inlets And Outlets

    Ventilation inlet: The internal cooling fan draws cool air from the ventilation inlet into the projector. Ventilation outlet: The hot air generated inside the projector is dispersed through the ventilation slot. Make sure the ventilation slot is free from PFWX-51B/PFWU-51B 07/08/2013...

  • Page 17: Installation Process Overview

    2.6 Installation process overview Quick setup The following steps describe briefly how to setup your PFWX-51B/PFWU-51B projector in a table mount front projection. Note that each step refers to a corresponding procedure, which is more detailed and illustrated. 1. Install the batteries of the remote control. See page 12: Remote control unit (RCU).

  • Page 18: Physical Installation

    • If the infrared receiver is exposed to fluorescent lamp or strong sunlight, the remote control may not operate normally. • Refer to the regulations enforced by your local government on the disposal of used batteries; improper disposal could damage the environment. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 19: Remote Control Overview

    "HOME" move through menu press "arrow keys" select button press "OK" select and return to previous menu press "OK" return to previous menu without press "HOME" selecting clear OSD Lite of screen press "HOME" PFWX-51B/PFWU-51B 07/08/2013...

  • Page 20: Lenses

    3.Physical Installation 3.2 Lenses Available lenses for the PFWX-51B/PFWU-51B projector PWFX-51B Lens standard Lens short throw Lens long throw R9832757 R9832758 R9832759 F lens (1.62-2.03:1) F lens (0.81:1) F lens (2.03-3.05:1) PWFU-51B Lens standard Lens short throw Lens long throw...
  • Page 21 1. Align the notches and correctly position the electrical contact pad as shown in the picture. Electrical contact pins 2. Rotate the lens clockwise until it clicks in place. Electrical contact pins should be in the direction as shown in the picture. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 22 3.Physical Installation Lens focus Sharpen the picture by rotating the focus ring. —> Lens zoom Adjust the projected picture to the size that you need using the zoom ring. Original image size Zoom out Zoom in PFWX-51B/PFWU-51B 07/08/2013...
  • Page 23 The distance of horizontal lens movement is 10% of half the screen width in both directions. For instance, if you are using a 80" × 50" screen, you will be able to move the image left or right by no more than 4". This illustration shows normal horizontal lens shift without the use of special specification lens or projector. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 24: Connecting The Projector With The Power Net

    2. Secure the power plug by locking the plug holder clamp (2). Connect to Wall plug 3. Connect the male side of the power cord to the local power net. This power cord for Europe This power cord for USA This power cord for China and Korea PFWX-51B/PFWU-51B 07/08/2013...

  • Page 25: Alignment Of A Table Mounted Projector

    1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen. 2. Project one of the internal grid patterns on the screen. 3. Turn the adjustable feet in or out until the projected grid pattern has a perfect rectangle shape and is leveled. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 26: Angle Adjustment

    3.Physical Installation When this is achieved, the projector is set horizontal and vertical at right angles to the screen. Angle adjustment Angle adjustment PFWX-51B/PFWU-51B 07/08/2013...

  • Page 27: Mounting The Ceiling Mount

    2. Adjustment knob to the back of the projector. Make sure that the mounting holes matches the holes in the projector. 3. Insert a bolt in each corner and turn in these bolts. 130.00 130.00 110.00 110.00 CEILING MOUNT SCREW M M4*0.7*12 PAN 26.50 165.00 Ote: Please check your support system for compatability. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 28: Projector Parts And Functions

    4.2 Projector Rear view Ventilation slot The hot air generated inside the projector is dispersed through the ventilation slot. Make sure the ventilation slot is free from obstruction. Infrared sensor PFWX-51B/PFWU-51B 07/08/2013...

  • Page 29: Input And Communication

    The projector can be connected to a PC or other device with a DVI-D output to the DVI-D connector. 3. DISPLAYPORT The projector can be connected to a display device with a displayport output to the displayport connector to video, audio, USB and data. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 30 6. AUDIO OUT The projector can be connected to a device with an audio input to the audio out connector to relay an audio signal. 7. SERVICE The projector is connected through the port for servicing. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 31 The communication interface of the PFWX-51B/PFWU-51B projector supports RS232 serial communication. You can use the RS232 input to connect a local PC to your PFWX-51B/PFWU-51B projector. By this way you can configure and control your PFWX-51B/PFWU-51B projector from your local PC.

  • Page 32: Status Lights Of Led

    The LED indicator is blinking at a 0.25 second interval when there is error occurred in projector. Please contact authorized service personnel for help. During start-up The LED indicator is blinking at a 2 seconds interval when the projector power on. 1 sec 1 sec 1 sec 1 sec 1 sec OFF/Standby Error During Start-Up PFWX-51B/PFWU-51B 07/08/2013...

  • Page 33: Opening The I/O Cover

    2. Pull out the right cover. 3. Push to release the left cover. And pull out the left cover. 4. Lift up the I/O cover. 5. Connect the desired input source. 6. Install the right and left cover back and tighten 3 screws. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 34: Connecting The Projector To Other Devices

    Both DVI and HDCP DVI are supported and can be connected to the DVI connector of this projector. In case a HDCP DVI signal is connected to the DVI input, the DVI output image will not show the image of this source. A gray window will be displayed instead. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 35 Connect the projector to a device with an audio input port to relay the audio signal between the projector and the audio device. 3D SYNC OUT (5V): Connect 3D IR glasses transmitter Connect a 3D emitter device to the Displayport port to allow for the synchronization between the projector and 3D glasses. 3D IR glasses 3D IR Emitter PFWX-51B/PFWU-51B 07/08/2013...
  • Page 36 Connect your handheld device to the USB port to use the power charging function (1.5A). Device charging cable not included. VGA connection Connect your PC or other devices with VGAoutput to the VGAinput connectors on the projector to be used as the source of image input. RGBHV connection B/Pb R/Pr Desk Top or Notebook PFWX-51B/PFWU-51B 07/08/2013...
  • Page 37 If the image input device offers both S-Video and Video connection, it is recommended that you choose S-Video to obtain better image quality. If both the S-Video and Video inputs are connected to the projector, the projector will prioritize SVideo signal input and image from the Video input will not be played. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 38 Connect the projector's service port to a PC using the supplied cable to perform maintenance. The port is for service only. RS-232C Connect a PC or home theater control/automation system (if present) to the RS-232 port on the PFWX-51B/PFWU-51B. Use a standard, 9-pin serial cable, wired straight-through.

  • Page 39: Getting Started

    "HOME" in the main menu the screen will be cleared Hotkey / Short Cut Remo RCU Lite ->OSD Lite result action -> on screen mute picture on the projector > unmute picture on the projector press any key PFWX-51B/PFWU-51B 07/08/2013...

  • Page 40: Power On Projector

    The startup screen will display in approximately 30 seconds. When the projector is turned off, it is required to wait for at least 90 seconds to re-start the projector to complete the cooling of lamp. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 41: Power Off Projector

    Avoid placing the remote control at places of high temperature or humidity as it could cause the remote control to malfunction. 5.6 Source selection Press HOME on the remote control to activate OSD Lite on Screen, then select " " for the desired source. INPUT PFWX-51B/PFWU-51B 07/08/2013...

  • Page 42: Changing Osd Language

    1. Push down and release the top cover to open. 2. Turn the Horizontal and Vertical lens shift knobs to shift the lens horizontally or vertically. 3. Push the top cover down to close. Horizontal Lens Shift Lever Vertical Lens Shift Lever PFWX-51B/PFWU-51B 07/08/2013...

  • Page 43: Introduction The Osd Lite On Screen

    You can select differnt aspect via this function. Refer to page professional use. Refer to page 38: Advanced OSD Menu. 50: Aspect Ratio. KEYSTONE Use this function to adjust the from the tilt to not inclined. Refer to page 52: Keystone. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 44: Advanced Osd Menu

    Basic OSD Lite on screen. Select the “ADVANCED” and press the password then the screen will show the advance OSD as below: The password for the advanced OSD is "left, left, right, down". PFWX-51B/PFWU-51B 07/08/2013...

  • Page 45: How To Navigate In The Advanced Menu Structure

    When the bar scale is displayed, via direct input. Press to activate the input field. 6.3 Advanced menu memory Each menu with sub menus, remembers its last selected sub item value even when leaving the menu structure and that as long as the projector is running. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 46: Image

    Input Balance Black Green Offset -1023~1023 Balance Offset Blue Offset -1023~1023 Red Gain 0~200 Image Input Balance White Green Gain 0~200 Balance Blue Gain 0~200 Depending on the type of the connected source, some settings are grayed out. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 47: Display Mode

    The following image illustrates the results of direct contrast adjustment using a random image: Lowered contrast Original image Enhanced contrast Contrast and Brightness are interrelated options that affect one another; when you adjust one of them, you might have to fine tune other settings to get the best projection results. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 48: Computer

    Use this function to adjust the phase of pixel sampling clock (relative to input signal). Should the image still flicker or show noise (i.e. edges on texts) after optimization, adjust phase accordingly. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 49: Auto Image

    Ote: If user needs to clear Hor.Position, Ver.Position, Frequency, Tracking settings stored in memory of current timing, please execute the Auto Image which is located at Advanced Menu > Image menu page. This function will use auto locked result as setting value instead. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 50: Advanced

    The projector’s default color temperature is set at Normal and it is suitable for most situations. As color temperature change to Cold, the image will appear to be more blue; as it change to Warm, the image will appear redder. When you choose “Native”, the projector will disable the white adjustment function of the input device. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 51: Input Balance

    (“brightness”) will become crucial later on (clamping circuit) it will result in “black not being black”. Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white level” or contrast). PFWX-51B/PFWU-51B 07/08/2013...
  • Page 52 These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file). PFWX-51B/PFWU-51B 07/08/2013...

  • Page 53: Adjusting The Input Balance

    The changeover from min to max is indicated by the apparition of bright spots also called “digital noise” An alternative to a full screen White/black pattern is the standard gray scale pattern, the white bar will be used for white balance and the black bar for black balance. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 54: Settings

    Splash Logo Std., Off, User Closed Captioning On, Off 3D Setting Screen Capture Off, DLP-Link, IR 3D Sync Invert Off, On Frame Sequential, Settings 1 Top/Bottom, Advanced 1 Side-By-Side, Setting 3D Format Frame Packing (3D FramePacking HDMI source only) PFWX-51B/PFWU-51B 07/08/2013...

  • Page 55: Source

    HOME  OSD Lite MENU  ADVANCED  Enter Password  Settings 1  Projection  ; the projector is now configured for “frontal projection - ceiling mode”. Correct Picture canoe c a n o e   PFWX-51B/PFWU-51B 07/08/2013...

  • Page 56: Aspect Ratio

    Wide screen television format / anamorphic format Letterbox 1.33:1 Native Scale image to fit screen 2.35:1 Film format The projector’s full image size is 16:10 (1280x800, 1920×1200 dots).The following diagram illustrates the difference in various aspect ratio settings: PFWX-51B/PFWU-51B 07/08/2013...
  • Page 57 That when used for commercial purposes, including: projection of image in movie theaters, hotels, cafeteria and other public venues, compression or extension of image achieved through the change of aspect ratio may constitute copyright infringement to the rightful owner of the image. Please do so at your own discretion. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 58: Keystone

    You can use this function to have the projector display the Barco logo in the start up screen. Set to display the Barco logo during start up and to display a blank image. If no screen has been captured, the BARCO logo will be the start logo during start up when set to User. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 59: Advanced

    V Image Shift Shifts the projected image position vertically. • Press to move the image up on the projected screen. • Press to move the image down on the projected screen. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 60: Settings

    Settings 2 Status Normal) Software Version Serial Number Left, Right, Menu Position Center, Down, 25%, Translucent Menu 50%, Settings 2 75%, Advanced 1 100% Off, Low Power Mode Low Power Normal, Fan Speed High Lamp Hour Reset Network PFWX-51B/PFWU-51B 07/08/2013...

  • Page 61: Auto Source

    OSD Menu. Setting the function off will require the user to specify source of image input on the OSD Menu in order for the projector to display the intended image. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 62: No Signal Power Off

    Showing resolution/H, V information at RGB mode. Showing color standard at Video mode. Lamp Hours (ECO, Normal) Lamp hour used information. ECO and Normal counter are separated. Software Version Showing system software version. Serial Number Showing serial number of this projector. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 63: Advanced

    Lamp Hour Reset Use this function to reset the hours for lamp to zero. After replacing the lamp, remember to reset the lamp hours to ensure the accuracy of lamp hours displayed in the OSD Menu PFWX-51B/PFWU-51B 07/08/2013...
  • Page 64 PC (or Laptop) browser screen. • Crestron is a registered trademark of Crestron Electronics, Inc. of the United States. • Barco's Projector Toolset is a registered trademark of Barco, Inc. / Barco Federal Systems, LLC. Supported External Devices...

  • Page 65: Advanced 2

    Sleep Timer Set the Sleep Timer interval. The projector powers off after the specified time period of inactivity (regardless of signal). Source Filter Press to select the input sourcee,and press to enable or disable the automatic input searching.. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 66: Maintenance

    2. Loosen the screws from cover. 3. Pull out the right cover. 4. Use a screw driver to loosen the screws as shwon in the illustration. Grasp the metal rod on the lamp cover and pull the lamp out. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 67 6. Replace the right cover and tighten the screw. 7. Reconnect power to the projector and reset the lamp usage timer. Refer to page 57: Lamp Hour Reset. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 68: Clean The Dust

    1. Power off the projector and unplug the projector from the mains power net. 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 69: Simple Troubleshooting

    2. Turn of the projector first and wait for the projector's working environment may have moisture in the projector to evaporate. The image is blurry changed in mid operation (i.e. going from cold to warm or dry to humid), leading to condensation of moisture inside the projector. PFWX-51B/PFWU-51B 07/08/2013...
  • Page 70 LED indicator on the rear panel of the life; please replace it. picture disappears. projector and see if it is blinking in red. 2. The lamp does not turn on even when the projector has been turned on. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 71: Projector Specification

    1 x VIDEO 1 x RJ-45 1 x 3D SYNC OUT Power requirements AC Input 100V - 240V (±10%) (auto ranging) Power consumption in Bright mode 480W@100V/460W@240V Power consumption in ECO mode 365W@100VAC/355W@240VAC Power consumption in standby mode <0.5W PFWX-51B/PFWU-51B 07/08/2013...

  • Page 72: Specifications

    3 years standard warranty** (*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. (**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for more details. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 73: Pfwx-51B Specifications

    11.Projector Specification 11.2 PFWX-51B Specifications Description Specifications Projector type Single-chip DLP projector Technology 0.65" DMD Color Wheel 5-segment (RGBWY) Brightness* 4750 ANSI lumen Brightness (eco-mode)* 3300 ANSI lumen Resolution WXGA 1280 x 800 Micro display DLP 0.65" DMD Contrast ratio...
  • Page 74 3 years standard warranty** (*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. (**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for PFWX-51B/PFWU-51B 07/08/2013...

  • Page 75: Standard Source Files

    1440 x 900 70.6 ¡ ¡ ## 1600 x1200 ¡ ¡ ## 1680 x 1050 64.7 59.9 ¡ ¡ ## 1680 x 1050 65.3 ¡ ¡ ## 1920 x 1200 ¡ ¡ ## 1920 x 1080 67.5 ¡ ¡ PFWX-51B/PFWU-51B 07/08/2013...
  • Page 76 1280 x 720 60/120 Input Signal for HDMI/DVI-D Signal Resolution Refresh Rate (Hz) SVGA 800 x 600 60/120 1024 x768 60/120 WSVGA (1024 x 600) 1024 x 600 HDTV (720p) 1280 x 720 60/120 True 3D Video Compatibility table PFWX-51B/PFWU-51B 07/08/2013...
  • Page 77 *The native resolution of the panel is 1280 x 800 (for WXGA)/1920 x 1200(for WUXGA). Resolution others than native resolution may be display with uneven size of text or line. *HDTV timing main check tool is DVD player, VG828 is secondary. PFWX-51B/PFWU-51B 07/08/2013...

  • Page 78: Dimension

    11.Projector Specification 11.4 Dimension 453.00 mm 460.55mm 446.00 208.60 PFWX-51B/PFWU-51B 07/08/2013...

  • Page 79: Environmental Information

    DISPOSE ACCORDING TO STATE/LOCAL LAW. This Barco product consists of materials that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws: · Within this system, the lamp in the projector contains mercury.
  • Page 80 12.Environmental Information 本产品中包含的有毒有害物质/成分的名称和含量。 PFWX-51B/PFWU-51B 07/08/2013...

  • Page 81: Production Address

    12.Environmental Information 12.3 Production address Factories Barco nv Entertainment Division Delta Video Display System (Wujiang) Limited Noordlaan 5, B-8520 Kuurne 中達視訊 （吳江） 有限公司 Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 No.1688,Jiangxing East Road, Wujiang Eco & Tech Development Zone, Suzhou City, Jiangsu Province, Support: www.barco.com/esupport...
