Barco PGWU-61B User Manual

Congratulations on purchasing
this product
1
(EU/US/CH)
user
manual
AAA (2x)
2
3
1
Pull the lever towards the front
while sliding in the lens.
4
5
(See User Manual for detailed info on Inputs)
Menu - OK
Menu - LEFT
Power
On/StandBy
IR Position
Front
Status Led
INPUT BRIGHTNESS
ASPECT RATIO LENS FOCUS
KEYSTONE LANGUAGE
i
SERVICE ADVANCED
- Remove the lens before transporting the projector.
- To save lamp lifetime, first switch the projector to standby mode
and wait two minutes, then switch off the main power.
- Ensure that the projector is operating with clean filters.
- Do not block the ventilation in -and outlets.
- Using the projector at a non recommended tilt angle will reduce the lifetime of the lamps
or create unexpected behaviour of the unit.
- Laser light can cause severe damage to the DMD. This damage is not covered by warranty.
1
2
Pull
forward
216,2
241,2
6
7
8
OFF/STBY
ON
Error
During Start-up
9
CONTRAST COLOR
LENS ZOOM LENS SHIFT
i M
INFO MODE
10
For more information and Maintenance Guidelines,
check the Detailed User Manual on:
http://www.barco.com/en/products-solutions/projectors

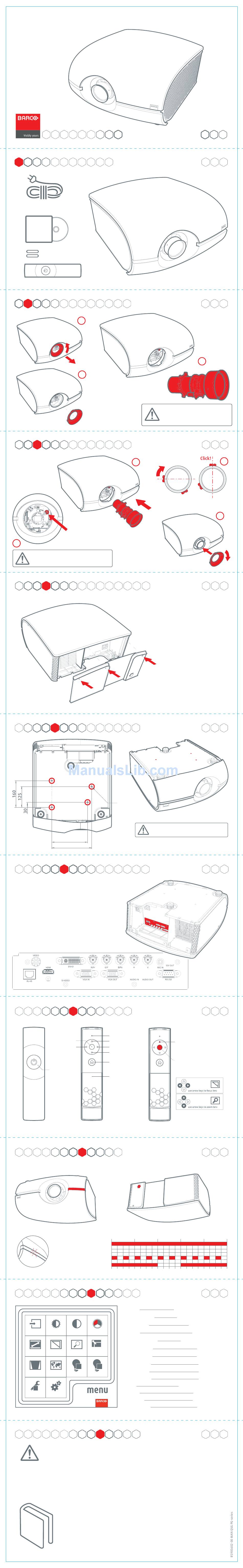

Quick Setup Guide

Packaging Contents

Lens Assembly A
Lens Assembly B
2
Rear Cover
Loosen 3 screws to remove rear cover
and gain access to the inputs panel.

Ceiling Mount*

M6x1 depth 8
(4x)
Please check the manual of your
supportsystem for compatability
*(Ceiling mount system is not included)
Input Cables

Remote Control

Feedback LED
Menu - UP
Menu - RIGHT
Menu - DOWN
Home/Menu
Battery Lid
(Slide down
to open)
Starting Projector
IR Position
Rear
1 sec 1 sec
OSD Lite Menu
INPUT
BRIGHTNESS
CONTRAST
COLOR
ASPECT RATIO
LENS FOCUS
LENS ZOOM
LENS SHIFT
KEYSTONE
LANGUAGE
INFO
MODE
SERVICE
ADVANCED
Important Info
PGWU-61B
PGWX-61B
PGXG-61B
3
Remove protective covers
from both ends of the lens
before starting assembly.
Unit Weight: 18 kg max.
Quick Keys
(for Remote and keypad)
Quick Key 1
Push Menu-UP twice
for instant 'Picture Mute'
Quick Key 2
Push Menu-OK for
quick access to the
Focus/Zoom Menu
1 sec 1 sec
Toggle between input sources
adjust lamp brightness level
adjust image contrast
adjust image colour
modify image aspect ratio
adjust lens focus
adjust lens zoom
adjust lens shift
adjust keystone
select language
information on lamp status
normal/eco/power
service information
see user manual
3
4
1 sec
