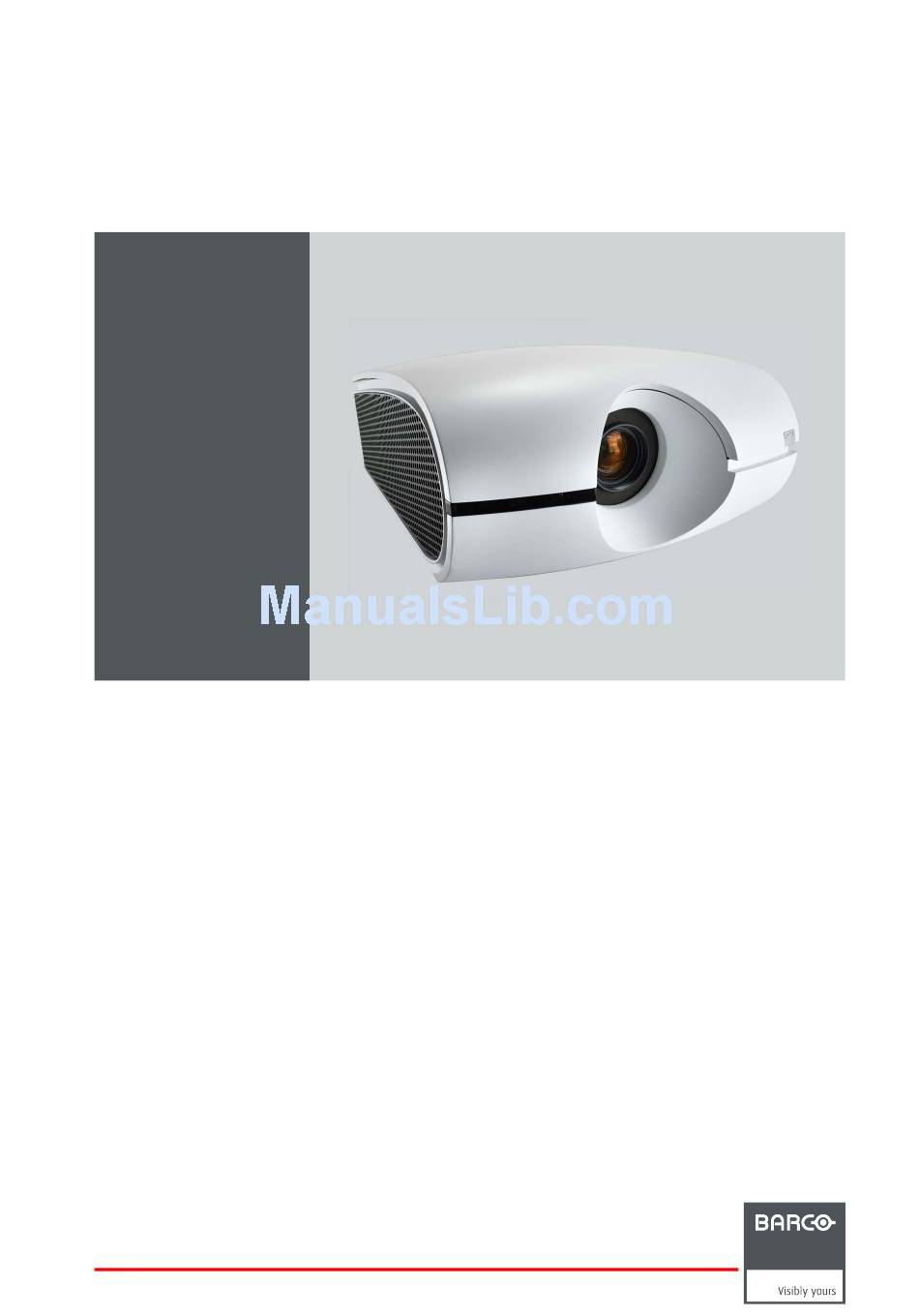

- Page 1 PHxx series Safety manual R5905598/01 28/01/2014...
- Page 2 Barco nv Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Hyogo Japan...
-
Page 3: About This Chapter
About this chapter Read this chapter attentively. It contains important information to prevent personal injury while installing and using a PHxx series projector. Furthermore, it includes several cautions to prevent damage to the PHxx series projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing your PHxx series projector. -
Page 4: Using Projector In Europe
Any changes or modifications not expressly approved by Barco could void the user’s authority to operate this equipment. Important safety instructions General •... -
Page 5: To Prevent Personal Injury
Caution: High pressure lamp may explode if improperly handled. Refer servicing to qualified service personnel. The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to Barco. •... -
Page 6: To Prevent The Risk Of Electrical Shock
The socket-outlet shall be installed nearby the equipment and shall be easily accessible. • Use the attached specified power supply cord. If you use another power supply cord, it may cause interference with radio and television reception. R5905598 PHXX SERIES 28/01/2014... -
Page 7: To Prevent Projector Damage
Placing the projector directly on a carpet impairs ventilation by the fans, causing damage or failure. Put a hard board under the projector to facilitate ventilation. • Place the projector at least 50 cm (or 20 inches) away from the wall to prevent the intake vents and the exhaust vents that emit hot air from being blocked. R5905598 PHXX SERIES 28/01/2014... -
Page 8: About Batteries
fire, electric shock or other hazards. Unauthorized substitutions may void warranty. • Safety check: Upon completion of any service or repairs to this projector, ask the service technician to perform safety checks to determine that the product is in proper operating condition. R5905598 PHXX SERIES 28/01/2014... -
Page 9: Batteries And Remote Control
Replace the 2 batteries with new ones when the remote control is slow to operate. Removing the batteries from the remote control Slide and remove the back lid of the remote control and take out the batteries. R5905598 PHXX SERIES 28/01/2014... -
Page 10: Basic Remote Control, Indications
2. Batteries and Remote Control Basic Remote control, indications Overview Image 2-2 ON/OFF HOME ARROW RIGHT (►) ARROW UP (▲) ARROW LEFT (◄) ARROW DOWN (▼) LED INDICATION BATTERY COMPARTMENT IR LEDs R5905598 PHXX SERIES 28/01/2014... -
Page 11: Basic Actions
OSD Lite of screen press home R5905598 PHXX SERIES 28/01/2014... - Page 12 2. Batteries and Remote Control R5905598 PHXX SERIES 28/01/2014...
-
Page 13: Lamp Replacement Warnings
1. Duration when LAMP MODE of the INSTALLATION 1 menu is set to LOW. When it is set to STANDARD, this duration will be shorted. 2. When LAMP MODE is set to STANDARD, this duration will be shorted to 2000 hours. R5905598 PHXX SERIES 28/01/2014... -
Page 14: How To Replace
3. Slide and remove the side cover towards the rear. Image 3-3 4. Loosen two screws (d) that are securing the lamp cover using a Phillips screwdriver and remove the lamp cover (e) from the projector. R5905598 PHXX SERIES 28/01/2014... - Page 15 10.Tighten two screws (f) of the new lamp box tightly using a Phillips screwdriver. Image 3-8 Note: Make sure that the screws are tightened firmly. 11. Insert the lamp cover (e) into the projector and tighten two screws (d) on the lamp cover firmly using a Phillips screwdriver. R5905598 PHXX SERIES 28/01/2014...
-
Page 16: Reset Of The Lamp Operation Time
The confirmation dialog appears. EXECUTE LAMP 1 TIME RESET ? OK : ENTER CANCEL : MENU Image 3-13 8. Reset by pressing the ENTER key. When the lamp operating time is not reset, press the MENU key. R5905598 PHXX SERIES 28/01/2014... - Page 17 For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. (For the U.S. only.) 3. When LAMP MODE is set to STANDARD, this duration will be shorted to 2000 hours. R5905598 PHXX SERIES 28/01/2014...
