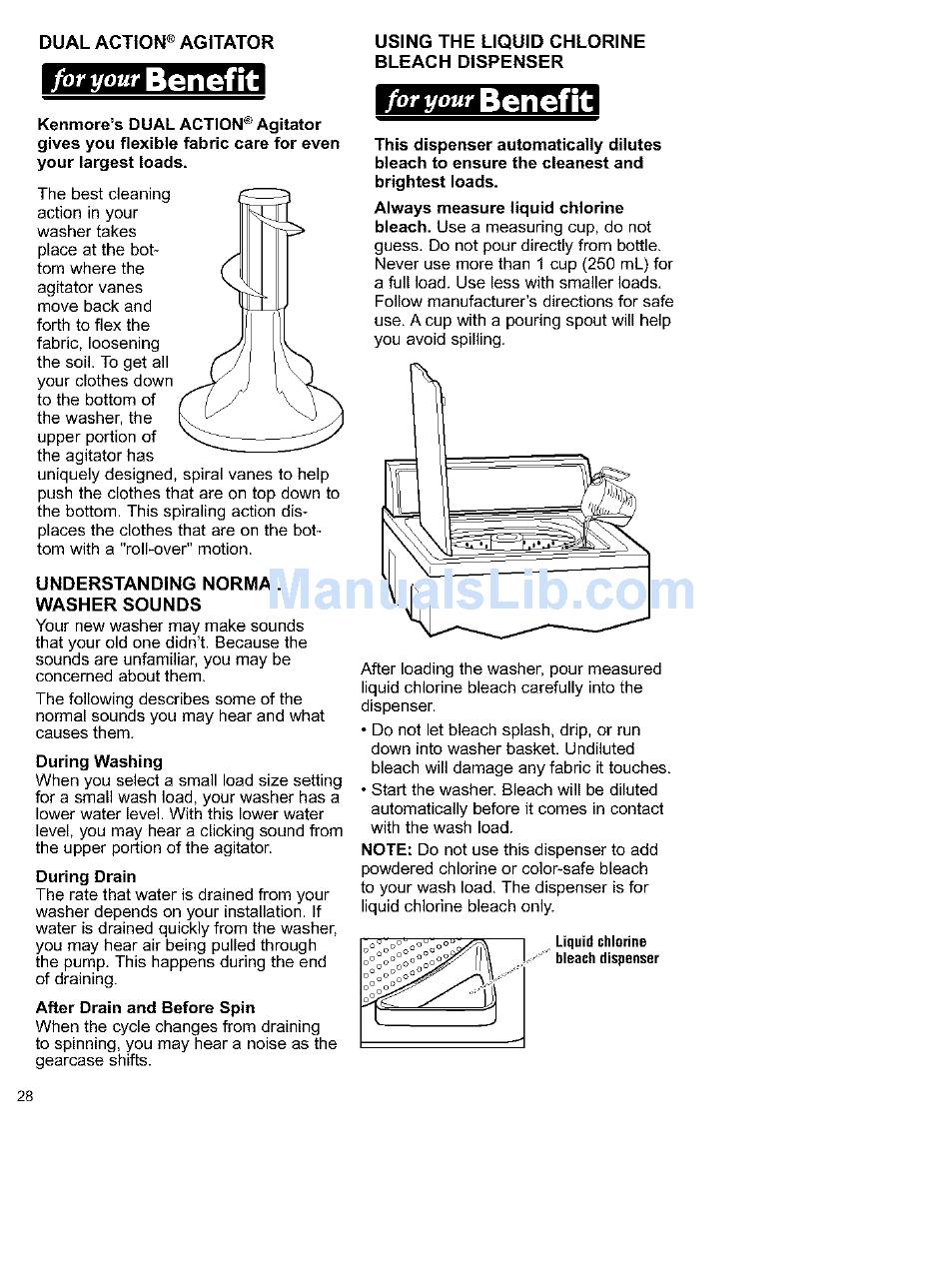

DUAL ACTION ®AGITATOR USING THE LIQUID CHLORINE
BLEACH DISPENSER
Kenmore's DUAL ACTION ® Agitator
gives you flexible fabric care for even
your largest loads,
The best cleaning
action in your
washer takes
place at the bot-
tom where the
agitator vanes
move back and
forth to flex the
fabric, loosening
the soil. To get all
your clothes down
to the bottom of
the washer, the
upper portion of
the agitator has
uniquely designed, spiral vanes to help
push the clothes that are on top down to
the bottom. This spiraling action dis-
places the clothes that are on the bot-
tom with a "roll-over" motion.
llft,J,i,t,J_" :[;I i[q [["
This dispenser automatically dilutes
bleach to ensure the cleanest and
brightest loads.
Always measure liquid chlorine
bleach. Use a measuring cup, do not
guess. Do not pour directly from bottle.
Never use more than 1 cup (250 mL) for
a full load. Use less with smaller loads.
Follow manufacturer's directions for safe
use. A cup with a pouring spout will help
you avoid spilling.
UNDERSTANDING NORMAL
WASHER SOUNDS
Your new washer may make sounds
that your old one didn't. Because the
sounds are unfamiliar, you may be
concerned about them.
The following describes some of the
normal sounds you may hear and what
causes them.
During Washing
When you select a small load size setting
for a small wash load, your washer has a
lower water level. With this lower water
level, you may hear a clicking sound from
the upper portion of the agitator.
During Drain
The rate that water is drained from your
washer depends on your installation. If
water is drained quickly from the washer,
you may hear air being pulled through
the pump, This happens during the end
of draining.
After Drain and Before Spin
When the cycle changes from draining
to spinning, you may hear a noise as the
gearcase shifts.
After loading the washer, pour measured
liquid chlorine bleach carefully into the
dispenser.
• Do not let bleach splash, drip, or run
down into washer basket, Undiluted
bleach will damage any fabric it touches,
• Start the washer. Bleach will be diluted
automatically before it comes in contact
with the wash load.
NOTE: Do not use this dispenser to add
powdered chlorine or color-safe bleach
to your wash load, The dispenser is for
liquid chlorine bleach only.
I ou oO%o_ oO%f_,_ I Liquid chlorine
Oooo _o oo o o
Io oOoO o_°_Y_/J/\ bleach dispenser
oO°o oo oo °
Ioo i
28
