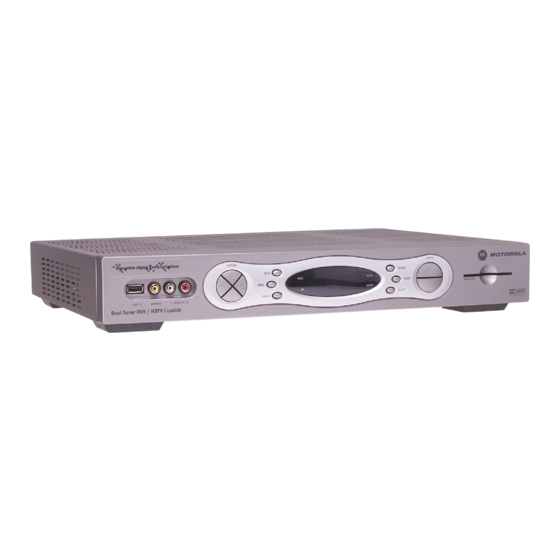

The DCT6412 Front Panel
The DCT6412 front panel has 12 keys and an LED display. Use the keys to perform basic functions such as access the
interactive program guide, navigate menus, and purchase On Demand (OND) and Pay-Per-View events.
SMART CARD SLOT
There are also inputs for a Universal Serial Bus (USB), audio/video jacks and a Smart Card slot. These inputs are for future
applications under development and are not enabled on this unit.
The DCT6412 Back Panel
The rear panel of the DCT6412 consists of three types of interfaces - audio, video and data. The table following this drawing
describes each connection and its use.
Displays the channel number or time of day.
There are four indicator lights on the LED screen:
• MSGS - the DCT6208 has received Messages for you to read
• A/B - the RF bypass is active
• ON - the DCT6208 is powered on
• REMOTE - the remote control is in use
Moves the cursor around the program guide and menu screens.
Displays the Main Menu.
Turns the device on or off.
Displays the current channel and program information.
Use to manually enable the RF bypass function. You must have a cable-ready TV
for this function to operate. (Optional Feature)
Selects menu options, On Demand programming, Pay-Per-View events or
programs from the program guide.
Displays the program guide.
Changes the channels by moving up or down.
Not currently enabled – intended for future use.
