TM
Se_iiiii o u s G _iiiii IIIII
IIIII
s ,,,,, Se_iiiii o u s IF an s ,,,,,
_M

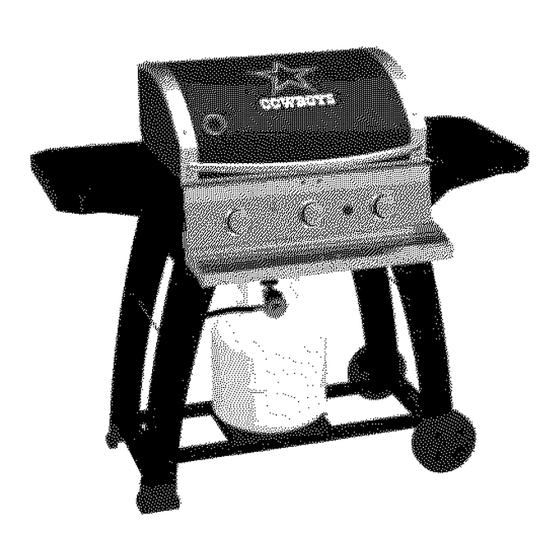

Team Grill Patio Series GAME-DAY
User Guide
MODEL:
PGD120901
/ TEAM GRILL SKU: PGD11091
IMPORTANT:
Keep this User Manual
near your grill for future reference.
Before you assemble
the grill,
please fill in the information
below. This information
is required
for all warranty
claims.
iiiii_!_i_i_!i_i!i!!!i!i!ii_iii_i_i_iii_ililiiiii_iiiiii
¸iiii_i_iiiiiiiiiiiiiiiiiiiiiiiiiii
¸iiiiiiii
¸ii_
¸i_i_i_i,
¸I,II,,!!!!!
C
IS
CSA Certified
All Team Grill products
are officially
licensed
through
various
licensing
entities.
Team Grill
125 Nagog
Park, Acton,
MA01720
USA
Web Site: www.teamgrill.com
-- Customer
Service:
(888) 978-6475
© Copyright
2010 Team Grill-
All Rights
Reserved
Revision 100308
Advertisement
Table of Contents
Related Manuals for Team Grill pgd
Summary of Contents for Team Grill pgd
- Page 1 Se_iiiii o u s G _iiiii IIIII IIIII s ,,,,, Se_iiiii o u s IF an s ,,,,, Team Grill Patio Series GAME-DAY User Guide MODEL: PGD120901 / TEAM GRILL SKU: PGD11091 IMPORTANT: Keep this User Manual near your grill for future reference. Before you assemble the grill, please fill in the information...
- Page 2 FOR OUTDOOR USE ONLY Read this User Guide carefully and be sure your gas grill is properly assembled, installed maintained. Failure to follow these instructions could result in serious bodily injury, death and/or property damage. This gas grill is intended for outdoor use only and is not intended to be installed...
-
Page 3: Table Of Contents
Contents Important Warnings and Safety Information ....................The Porcelain-Enamel Finish of Your Team Grill Gas Grill ............... Prior to the First Use of Your Team Grill Gas Grill ..................Illustrated Diagram: Team Grill Patio Series GAME-DAY (PGD11091 ) ............ Parts List: Team Grill Patio Series GAME-DAY (PGD11091) .............. -
Page 4: Important Warnings And Safety Information
Important Warnings and Safety Information Read this User Guide carefully, and be sure your grill is properly assembled, installed maintained. Failure to follow these instructions could result in serious bodily injury, death and/or property damage. This gas grill is intended for outdoor use only and is not intended to be installed... - Page 5 Do not try to install this appliance without reading the entire contents of this User Guide. This grill is designed to use liquid propane (LP) gas only. Only use this grill with LP gas and the regulator assembly supplied by the manufacturer. The installation of this product must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA...
-
Page 6: The Porcelain-Enamel Finish Of Your Team Grill Gas Grill
The Porcelain-Enamel Finish of Your Team Grill Gas Grill Team Grill uses a triple-fired, porcelain-enamel finishing process on its grill lids to perfectly match the colors and Iogos of your favorite team or brand. This finish is designed to withstand the weather as well as the high-heat... -
Page 7: Illustrated Diagram" Team Grill Patio Series Game-Day (Pgd11091)
Illustrated Diagram" Team Grill Patio Series GAME-DAY (PGD11091) Team Grill Patio Series GAME-DAY User Guide Page 7... -
Page 8: Parts List: Team Grill Patio Series Game-Day (Pgd11091)
Parts List: Team Grill Patio Series GAME-DAY (PGD11091) Lid Trim Piece - Left Right Leg Assembly Wheels Lid Trim Piece - Right Axle Rod Hitch Pin Lid Handle Spacers Lid Handle Flange Nut Lid Trim Piece - Bottom Axle Washer Firebox Tank Locknut Left Side Shelf... -
Page 9: Hardware List: Team Grill Patio Series Game-Day
Hardware List: Team Grill Patio Series GAME-DAY DESCRIPTION PICTURE QUANTITY M4x8 Bolt M5xl 0 Bolt M6xl 3 Bolt M6 Compression Washer M6 Flat Washer M6 Lock Washer Replacement Parts Always use replacement parts supplied by Team Grill or an authorized Team Grill parts dealer. -
Page 10: Assembly Instructions
Assembly Instructions Step 1. Carefully unpack the carton and remove all packing material. After opening shipping box, remove all packed grill parts packing [ACAUTION] materials from the Styrofoam support pieces. With the help of another person, remove the grill head from the support pieces. - Page 11 Step 2. Attach the Cross Bars and Tank Support Bars to the Left Leg Assembly. Use six (6) M5x 10 bolts to attach the two (2) Cross Bars to the Left Leg Assembly as shown below. Use four (4) M4xl0 screws to attach the two (2) Tank Support...
- Page 12 Step 4. Attach the Tank Support. Place the Tank Support on the center of the Tank Support Bars. Align the holes in the Tank Support with the holes in the Tank Support Bars. Use six (6) M4x8 screws to attach the Tank Support to the Tank Support Bars.
- Page 13 Attach the Grill Head to the Grill Cart. Step 6. Stand the Grill Cart upright. Attach the Grill Head to the Grill Cart as shown. Note: This step required people to lift and position the Grill Head onto the Grill Cart. With the Grill Lid Closed,...
- Page 14 Step 8. Attach the Right Side Shelf to the Firebox as shown: From the inside of the Firebox using (2) M6x13 screws and two (2) M6 compression washers. From the outside of the Firebox using (2) M6x13 screws, two (2) M6 lock washers and two (2) M6 flat washers.
- Page 15 Step 10. Attach the Grease Cup to the Grease Drip Tray under the grill as shown. Step 11. Place the LP gas tank onto the Tank Support and tighten the Iocknut clockwise to lock the tank to the grill. Step 12. Assembly Complete.
-
Page 16: Connecting The Lp Gas Cylinder
Connecting the LP Gas Cylinder IMPORTANT: Only use the pressure regulator and hose assembly provided with _CAUT_ON this grill. To order replacement parts for your grill, please contact our customer service department at (888) 978-6475. The installation of this appliance must conform with local codes or, in the absence... - Page 17 the tank valve to the "off/closed" position and do not use grill until a local LP gas dealer make repairs or replace the tank. (J_[3 II_l'J, i'i[ Figure 3. Never insert any foreign objects into the valve outlet. It may damage the valve and cause leaks.
-
Page 18: Checking For Leaks
Disconnecting the LP Gas Tank Turn all grill control knobs to the "off" position. Turn the LP tank valve to the "off/closed" position (turn clockwise until it stops). Detach the regulator assembly from tank valve by turning the quick coupling counterclockwise. -
Page 19: Final Installation Checklist
IF ANY GREASE OR HOT ITEM FALLS FROM THE GRILL ONTO THE VALVE, REGULATOR, HOSE, OR ANY OTHER PART CONTAINING GAS, SHUT IMMEDIATELY. CHECK CAUSE, REMOVE CAUSE. REPEAT LEAK TEST BEFORE CONTINUING. DO NOT REMOVE THE GREASE TRAY IF THE GRILL HASN'T COMPLETELY COOLED. -
Page 20: Grill Operating Instructions
Grill Operating Instructions A CAUTION J Clean your grill frequently, as a grease fire that may damage the grill may occur if the grill has been properly cleaned. cleaning instructions, see the "Cleaning Maintenance" section of this User Guide. NEVER leave the grill unattended while using. -
Page 21: Selecting A Proper Location For Your Grill
Selecting a Proper Location for Your Grill After reading this User Manual in its entirety and assembling your grill, you will need to find a suitable location for your grill. This location must be: Outside. Away from any building overhang, awning or umbrella. -
Page 22: Grill Lighting Instructions
If the grill contains electrical components: To protect against electric shock, do not immerse cord or plugs in water or other liquid. Unplug components from the outlet when not in use and before cleaning. Allow the grill to cool before putting on or taking off parts. - Page 23 Match Lighting Instructions 1. Read all lighting instructions before lighting. 2. IMPORTANT: Open the lid before lighting. 3. Using the match stick (hanging behind the left front leg), place a lit match between the coils of the match stick and position the match stick so that the lit match is next to the center ignition burner. 4.
-
Page 24: Grill Cleaning & Maintenance
Grill Cleaning & Maintenance Proper maintenance is required to reduce potential flare-ups and extend the life of your grill. Team Grill also highly recommends using a grill cover after each use to further protect your grill. IMPORTANT: Do not use oven cleaner or other abrasive cleansers. -
Page 25: Cleaning The Exterior Of The Grill
brush. Remove the grease cup from the front inside of the cart. Use hot, soapy water and a non- metallic scrub brush or soft rag to wipe it down. Rinse clean with water. Return the grease cup, flame tamers and cooking grates to the grill and, when dry, cover with a grill cover. -
Page 26: Grilling Tips
IMPORTANT: Inspect all venturi tubes/burners at least once per year or sooner You smell gas. You experience delayed burner ignition. The appliance does not reach proper temperature. The burner makes a "popping" noise. The appliance heats unevenly. The appliance has been stored for a period of more than one month. Note: A good flame should be blue with some yellow tips coming from the burner holes. - Page 27 When cooking large cuts of meat over lower temperature settings, brush the meat with vegetable oil prior to placing it on the cooking grates. This will aid in the "browning" of the meat during the cooking process. Use the infrared searing burner on the "high"...
-
Page 28: Cooking Guide
Cooking Guide Temperature Settings High - Intended for pre-heating of the appliance, searing steaks and other cuts of meat, rotisserie cooking and for burning food residue from the interior of the appliance. Medium - Intended for most grilling, baking and roasting. Fig f3 Low - Intended for cooking fish and other lean foods and for all... -
Page 29: Troubleshooting Guide
Troubleshooting Guide The electrode is deposited with Use a clean swab and alcohol to clean cooking residues Electrode damaged Replace Burner won't light after Electrode wires are loose or have Reconnect or replace with new electrode turning and pushing the knobs fallen off assembly with wires The orifice is blocked...
