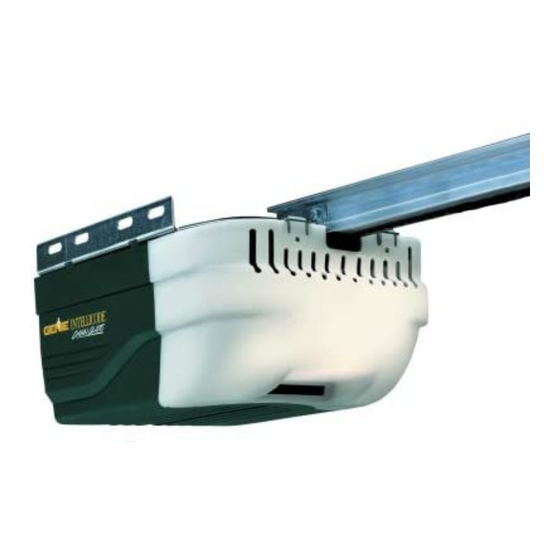

Genie Series GCG Owner's Manual
  1. Manuals
  2. Brands
  3. Genie Manuals
  4. Garage Door Opener
  5. Series GCG
  6. Owner's manual

Genie Series GCG Owner's Manual

Includes intellicode remote control and series ii electronics
Hide thumbs Also See for Series GCG:

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Series GCG and is the answer not in the manual?

Questions and answers

Sue
March 18, 2025

Reset after power outage

0

Related Manuals for Genie Series GCG

Summary of Contents for Genie Series GCG

  • Page 2 Check your ceiling where the power You need a 110-120 Volt power supply head of your new unit will be mounted. available. The outlet should be no more than 3 Plan how you will be mounting the power head. feet from the power head once it is mounted. (The It is possible that ceiling joists...
  • Page 3 © ® TYPICAL SUPPORT BRACKET ADDED HEADER BRACKET MOUNTING BOARD BRACES 48" POWER 120V GROUNDED OUTLET EXTENSION TORSION SPRING _ ® SECTIONAL DOOR 1-PIECE DOOR...

  • Page 4: Troubleshooting

    INTELLICODE ® Rolling Code Security System. SECTION ......... PAGE An electronic rolling code system that enhances the security of the door operator by continuously changing the access code PRE-tNSTALLATION CHECKS ......each time the remote control is used. The door operator OPERATOR FEATURES .........
  • Page 5 Ratchet Pencil Carpenter's level Adjustablewrench Drill 5/32" Drill Bit 7/16" and 9/16" Tape measure Phillipsscrewdriver Wire strippers Sockets Step ladder _WARNING #6 x 1-1/4" Pan (32) Single-button Multi-button Entrapment Warning Head Phillips Screw Wall console Safety Brochure remote control remote control Label #10-16 x 1-1/4"...
  • Page 6 ÷i...
  • Page 7 Turnoff powerbeforeremovingoperator the information in this manual, if you have questions or do not understandthe cover. informationpresented,contactThe Genie Company or an authorizedGenie Dealer. When replacinqcover makesurewires are not p ncheoor near movng parts. In this section and those that follow, the words Danger, Warning, and Caution are used to emphasize important safety information.The word:...
  • Page 8 Middle 1. Identify the rail sections (Fig. 1-1). . First rail section (attaches to power head}. - 2 holes each end. - Half-circle notch 1 end. - Motor end has no notch. * Middle rail section. - 2 holes & half-circle notch each end. .
  • Page 9 5. Slip carriageinto carriageslot of rail. , Flipthe railassembly up sidedown. , Placeemergency releaseleverin "release" position(Seebelow). - Checkarrowon thesideof carriagepoints towarddoor endof rail. - Slidecarriageintorailat power headend (Fig.1-5). - Fliprailassembly right-sideup. 6. Attachrailto powerhead. • Place railinfrontofpowerhead withrailstrapat opposite end. •...
  • Page 10 9. Attach limit switches. 2 switches included, "CLOSE" limit switch (brown wire) and "OPEN" limit switch (white wire) (Fig. 1-10}. • Turn set screws (39) into threaded holes, just enough so screw stays in place. (Fig. 1-10). [39]#8_32 x1,, Point arrow on top "CLOSE" limit switch toward door end of rail.
  • Page 11 5. Do Not connect the operator to the source of power until instructed to do so. OPERATION INSTRUCTIONS. If you have questions or do not understand an instruction, call The Genie 6. Locate the control button: Company or an authorized Genie Dealer.
  • Page 12 2. Mounting the header bracket. F?OTE: A hough h®_-b,_y _ by'_?_,c£® _"_sybe oy/qs _ed seve_;s ways _e_S_ed "_h:_y,*<:d%m:_d _YpossR_e f_eo_use oF _s,_d sgs_ tgIh over" o_he" me ?_odS, (Fig. 2-5) , Hold header bracket against wall (Fig. 2-5). - Place left edge on vertical line. )referred - Bottom edge on final height line.
  • Page 13 1. Getting Started. . Position rail/power head assembly (Fig. 2-7). - Rail strap leaning on wall next to header bracket. - Place material on floor under power head to protect from scratching. (A box, stool, or similar device may be needed to clear a torsion spring, as shown.) 2.
  • Page 14 1. Attach the arms. , Fasten curved door arm to door bracket using clevis pin (24) and cotter pin (25) (Fig. 2-10). , Straight arm to carriage using clevis pin (24) and cotter pin (25) (Fig. 2-10). [24] [25] 2. Connecting the arms.
  • Page 15 #lOh:: ope'_'_ o" ,'_" ..*#;:@@4. (<,, ,._u (<" " S;_u_'f . ,._y@se; }?_;'s _" ";' 1. Mounting brackets. . Mark both sides of garage door frame or wall 5" above floor. (Fig. 3-1), . Hold bracket against door frame or wall. - Check if brackets extend out from wall far enough, so tongue of bracket is beyond door, tracks or any door hardware.
  • Page 16 3. Wiring (cont'). , Securely fasten wires to wall as you go. -Use insulated staples (included). i{30] - Staples should be snug only. , Make wire attachments at "STB's." - Splitting and stripping wire ends to be connected as shown (Fig. 3-6). -Loosen terminal screws.
  • Page 17 1. Finding the mounting location. , Pick a convenient location for mounting wall control. - Location you choose should be in direct sight of door. - It should be at least 5' above floor to prevent small children from operating door. -It must be away from any moving parts.
  • Page 18 1. Plugthe operator into a properly grounded electrical outlet. 2. Check Safe-T-Beam® alignment (Fig. 6-3). 1. Instructions for electrician. , Remove power from circuit. , Remove motor cover (Fig. 6-1). - Removing hex head screw located in center on bottom of cover. - Slide cover down and off.
  • Page 19 pov_ieP &? Lhe opey_'_o_' iF _;;> is occuus w_'_i _':#:,o,t_ 1. Adjusting limit switches..Locate force control knobs on power head (Fig. 7-1). - Gently turn both control knobs counter-clockwise until they stop. , Verify emergency release lever in disengaged position.
  • Page 20 The force adjustments and limit switch settings MUST BE COMPLETED before testing contact reverse. Testing. , Open garage door using wall control. - Place a 2" x 4" board (laid flat) under center of garage door opening (Fig. 7-5). -Close door using wall control.
  • Page 21 Programming. c_s_ yo_fpm_n_ I Df;4fm _o opens_,,> @o_s . For each button. -Program each button separately. - Follow single button remote procedure (previous page) for each button. 2. Operating. • Same as single button remote. 1, Clear memory. , Press and hold learn code button (on power head) for 10 seconds or until Indicator LED goes out.

  • Page 22: Important Safety Instructions

    Use This Guide To Correct Problems With Door Operator. manually if springs are broken. If These Solutions Do Not Work, - CONTACT A PROFESSIONAL FOR SERVICE. Call Customer Service at 1.800.35.GENIE 2. Door balance. • Close the door. • Pull emergency release knob down to release SOURCE SENSOR...
  • Page 23 Door starts up, • Be suredoor,operator,and springsare in but stops before good repair,properlylubricated and balanced Use walt control supplied with operator, Any other wall control can cause it's completely (See maintenance section). the operator to operate unexpectedly and light not to work. open.
  • Page 24 TRANSMITTER COMPLIANCE STATEMENT Transmitters compJy with all United States and Canadian Jegal requirements as of the date of manufacture. No warranty is made that they comply with all legal requirements of any other jurisdiction. {f transmitters are to be used in another country, the importer must determine compliance with any {oca{ taws and regulations...
  • Page 25 Prix sur oppose AVAILABLE AT YOUR LOCAL GENIE ¢ DISTRIBUTOR (611"-1) l-Sutton Remote Control with Intellicode_z - Allows remoteoperationof one garage door. Controtador remoto de uno bet6n con Intellieode®.-Proporcionaroperaci6nremotode uno puertadel garaje. T@l_commande de un bouton aveo Intellieode<R}. - Permettreoperationeloginde un porte de garage.
  • Page 26 SHIPORDERTO: ADDRESS i DIRECCI6N i ADRESSE ENVIARMERCANCIA MAIL ORDER FORM TO: CON: CITY / CIUDAD / VILE The Genie Company EXP'#DIER MARCHANDtSE 22790 Lake Park Blvd. POUR: STATE / ESTADO /_TAT ZIP /O6DIGO POSTAL , "CODE POSTAL Alliance, Ohio 44601...

  • Page 27: Limited Warranty

    What we will do: if your Genie product is defective, we will repair it or, at our a minimum of $8.00 for shipping and handlingcharges.
