JVC TK-S241U Specifications

1/3-inch ccd b/w camera
Hide thumbs


Advertisement

Quick Links

Cost Efficient and Easy-To-Install Surveillance Camera
Delivering High-Sensitivity, Distortion-Free Pictures
JVC's high-sensitivity TK-S241U captures sharp pictures with no residual images or distortion
at a high sensitivity of 0.095 lux. It has genlock, horizontal dual-edge contour correction, and
is resistant to the effects of electric and magnetic fields. The TK-S241U is easy to install
as a single camera or as part of an existing system. Such powerful features make the TK-S241U
an exceptionally economic solution for a wide range of surveillance applications.
With a high-sensitivity of 0.095 lux, the TK-S241U delivers
high picture quality under even the poorest light conditions.
Horizontal dual-edge contour correction ensures high-
quality, distortion-free pictures under all shooting conditions.
The camera accepts AC 24 V or DC 12 V for easy installation
in various systems.
Built-in genlock opens up a wide range of application
possibilities by allowing the camera to be connected to most
currently available video equipment.
R
1/3-INCH CCD B/W CAMERA
TK-S241U
High-Sensitivity and Quality
B/W Surveillance System
(AC 24 V/DC 12 V)
The TK-S241U is suitable for indoor and outdoor applications
using video iris with built-in EE amplifier or DC iris lens.
The automatic electronic shutter continuously adjusts the
shutter speed to give the correct exposure even when a
manual iris or a lens without an iris is used.
Built-in back light compensation function improves image
quality when shooting back-lit subjects.
Adjustable lens mount and back-focus enable CS-mount or
C-mount lenses to be attached to the camera.

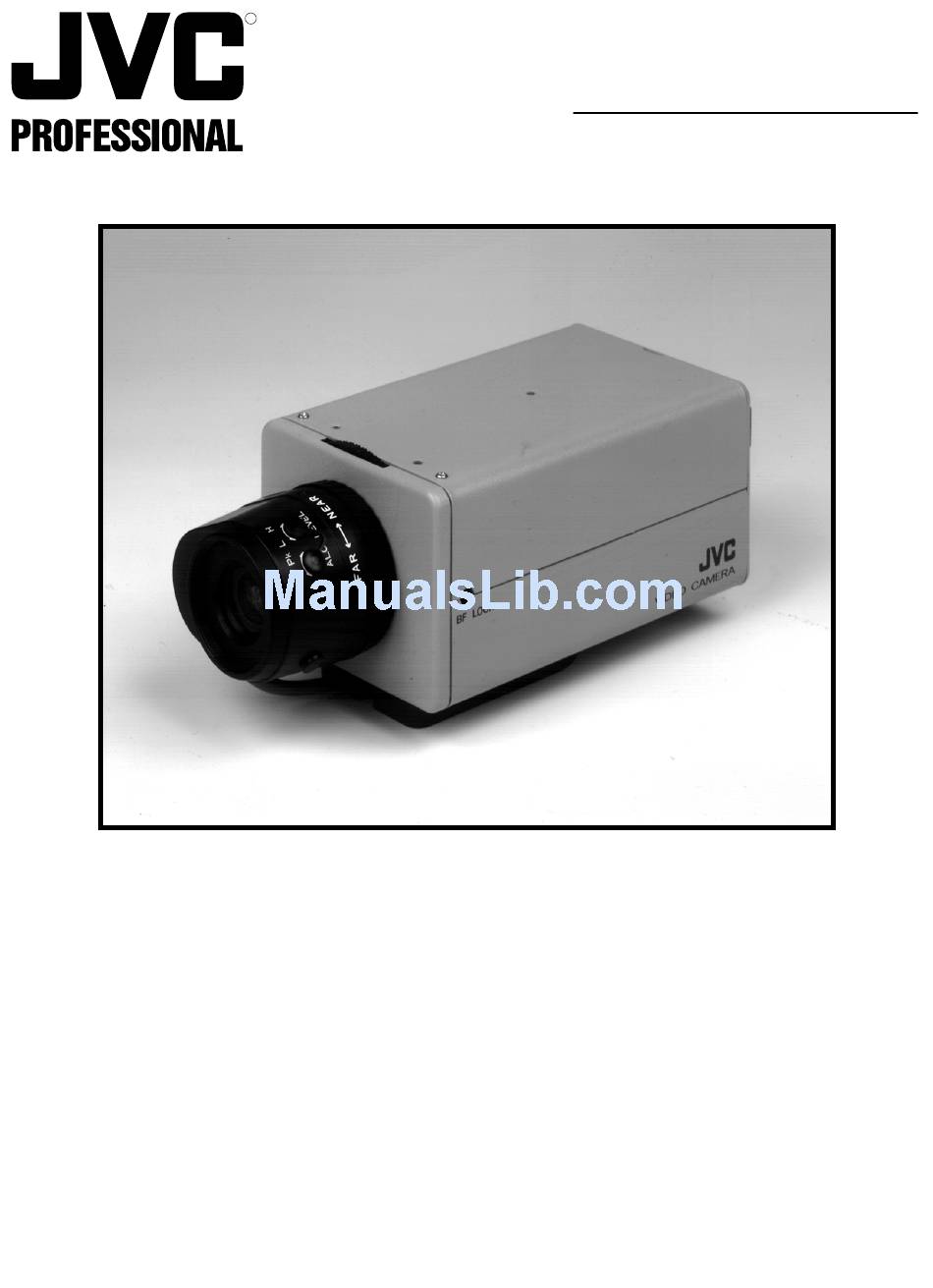

Shown with optional lens.

Advertisement

loading

  Related Manuals for JVC TK-S241U

  Summary of Contents for JVC TK-S241U

  • Page 1 The TK-S241U is easy to install as a single camera or as part of an existing system. Such powerful features make the TK-S241U an exceptionally economic solution for a wide range of surveillance applications.
  • Page 2 1.13 lbs (510 g) Design and specifications subject to change without notice. DISTRIBUTED BY JVC PROFESSIONAL PRODUCTS COMPANY DIVISION OF US JVC CORP. 41 Slater Drive, Elmwood Park, N.J. 07407 TEL: (201) 794-3900, 1-800-526-5308 FAX: (201) 523-2077 JVC CANADA INC.
