Page 1: User Manual

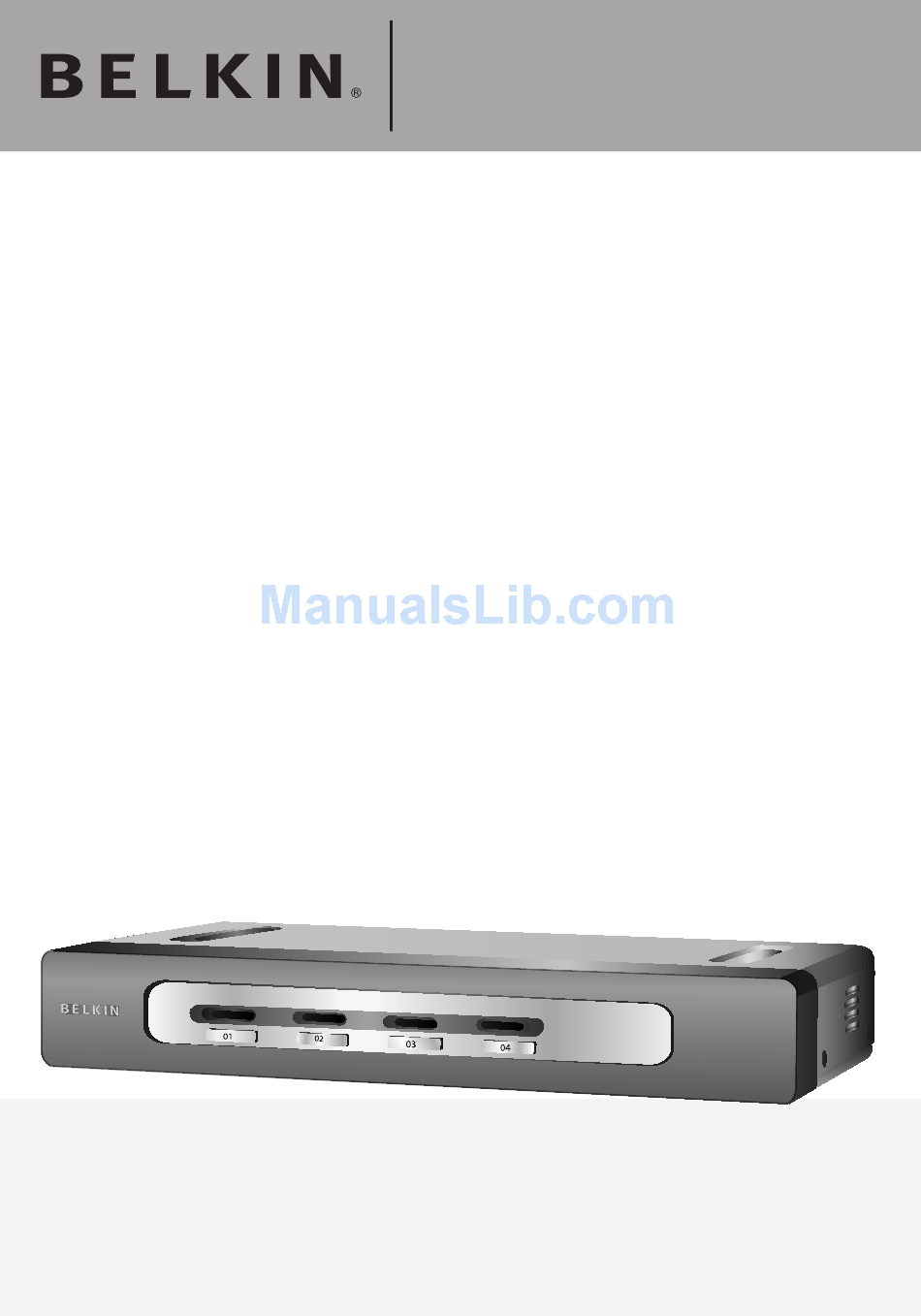

OmniView Secure DVI ® Dual-Link KVM Switch User Manual F1DN102Dea F1DN104Dea... -
Page 2: Table Of Contents
Table of Contents Introduction .....................1 Package Contents ................1 Overview ....................2 Security Features ................2 Other Features ................3 Equipment Requirements ..............4 System Requirements ..............5 Unit Display Diagrams ..............6 Specifications .................. 7 Installation ....................8 Pre-Configuration ................8 Mounting the Switch (optional) ............ -
Page 3: Introduction
Introduction Congratulations and thank you for purchasing this Belkin OmniView Secure DVI Dual-Link KVM Switch (the Switch). Designed especially for secure military and government installations, the Switch provides the centralized control required by today’s IA (Information Assurance) computer environments. It... -
Page 4: Overview
Overview Security Features • Dedicated Processors Designed specifically for secure environments, the Switch features a dedicated processor per computer port. This keeps each computer running on different security levels completely separated and secure at all times, and prevents any unintended data transfer between computers. • No Memory Buffer The Switch does not have a memory buffer and does not have the ability to store data. -
Page 5: Other Features
The Switch includes a global power adapter and interchangeable plugs, to allow for both domestic and international installations. The 2- and 4-Port Switches require an optional Rack-Mount Kit for rack installation (Belkin part number F1D005). Includes AC plugs for the U.S., U.K., Europe, and Australia. -
Page 6: Equipment Requirements
Overview Equipment Requirements Cables Belkin highly recommends you use Belkin DVI/USB KVM Cable Kits with Audio & Mic for your Switch to help ensure superior performance. These cables offer the highest quality possible to ensure optimal data and audio video transmission. One Cable Kit is required per connected computer. -
Page 7: System Requirements
Overview System Requirements Operating-System (OS) Platforms The Switch is compatible with computers running on, but not limited to, the following OS platforms: • Windows 2000 ® • Windows XP (Home/Professional) • Windows 2003 Server • Windows Vista ® • Red Hat Linux Desktop ® ® • Red Hat Enterprise Linux WS • Mac OS X v10.3 and higher ® Keyboards • USB-compatible (including wireless keyboards) Mice • USB-compatible (including wireless or optical mice) Monitors... -
Page 8: Unit Display Diagrams
Switch has not been opened or compromised since time of production. If for any reason one of the seals is missing or appears disrupted, please call Belkin Technical Support at (800) 282-2355. -
Page 9: Specifications
Humidity: 0-80% RH, non-condensing Warranty: 3 years Dimensions: (F1DN102Dea) 11 x 1.75 x 6 in. (279 x 45 x 150mm) (F1DN104Dea) 11 x 1.75 x 6 in. (279 x 45 x 150mm) Weight: (F1DN102Dea) 2.5 lbs. (1.1kg.) (F1DN104Dea) 2.5 lbs. (1.1kg.) Made in the USA of imported parts... -
Page 10: Installation
You may register your product online by going to https://www.belkin.com/registration/. Pre-Configuration Where to place the Switch: The enclosure of the Switch is designed for desktop or rack-mount configuration. An optional Rack-Mount Kit (Belkin part number F1D005) is available for use with the 2- and 4-Port Switches. Consider the following when deciding where to place the Switch: • your proximity to the port selectors on the front of the Switch • the lengths of the cables attached to your keyboard, monitor, and mouse • the location of your computers in relation to your console... -
Page 11: Mounting The Switch (Optional)
Bracket Installation (F1DN102Dea and F1DN104Dea) The 2- and 4-Port Switches can be installed into a 19-inch rack using an optional Rack-Mount Kit, sold separately (Belkin part number F1D005). 1.1 Attach the Rack-Mount Bracket to the Switch using the Phillips screws provided. (Refer to diagram below.) 1.2 Mount the Switch to the rack rails. -
Page 12: Connecting The Console To The Switch
Plugging and unplugging cables while computers are powered on may cause irreversible damage to the computers and/or the Switch. Belkin International, Inc., is not responsible for damage caused by your failure to do so. -
Page 13: Connecting Computers To The Switch
Step 3 Connecting Computers to the Switch (required) 3.1 Make sure all computers and the Switch are powered off. 3.2 Using the Belkin DVI/USB KVM Cable Kit (F1D9201b-XX), connect the male DVI connector to the monitor port on your computer. Then connect the other end of the cable into an available port on the Switch. (Refer to diagram below.) -
Page 14: Powering Up The Systems
Installation Step 4 Powering Up the Systems (required) 4.1 Power on the attached monitor. 4.2 Attach the power adapter to the DC power jack labeled “5V, 3A” on the back of the Switch. Only use the power adapter supplied with the Switch. (Refer to diagram below.) 4.3 Power on your computers. -
Page 15: Using Your Switch
Using your Switch Selecting a Computer Using Port Selectors Now that you have connected your console and computers to the Switch, it is ready for use. You can select which computer you wish to control by pressing the corresponding port selector on the front of the Switch. The LED will illuminate to indicate which computer (or port) is currently selected. -
Page 16: Frequently Asked Questions
You can register your Switch on the Web by directing your browser to: https://www.belkin.com/registration. Where can I go to report a product issue? You may call Belkin Secure KVM Support at (800) 282-2355 or direct your web browser to http://www.belkin.com/support/contact/email/technicalsupport/. How does the Switch allow the user to switch between computers? The Switch only supports one method of port selection. The user can access the desired computer by pushing the associated port selector. - Page 17 , Kensington , and ® ® many other manufacturers. Please contact Belkin Technical Support at (800) 282-2355 for any compatibility issues you may experience. General My computer does not boot when connected to the Switch but works fine when I connect my keyboard, video, and mouse directly to my computer.
-
Page 18: Troubleshooting
Troubleshooting Keyboard The computer does not detect my keyboard, or my keyboard does not work when I switch computers or reboot. • C heck that the keyboard you are using is connected properly to the Switch. • C heck that the USB cable between the Switch and the computer is firmly connected. • T ry connecting to a different USB port on the computer. • M ake sure the keyboard works when directly plugged into the computer (the HID USB driver is installed on the computer). Rebooting may be necessary when trying this. • I f you are using keyboard software that was included with your keyboard, uninstall it and then reinstall. - Page 19 Troubleshooting Mouse The computer does not detect my mouse, or my mouse does not work when I switch computers or reboot. • C heck that the mouse you are using is connected properly to the Switch. • C heck that the USB cable between the Switch and the computer is completely connected. • T ry connecting to a different USB port on the computer. • M ake sure the mouse works when directly plugged into the computer (the HID USB driver is installed on the computer). Rebooting may be necessary when trying this. • I f you are using a mouse driver that was included with your mouse, uninstall it and install the standard Microsoft mouse driver.
-
Page 20: Information
What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered in any way, or tampered with. - Page 21 Belkin product and how to proceed with your claim. Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin...
- Page 22 Information You can find additional support information on our website www.belkin.com through the tech-support area. If you want to contact technical support by phone, please call the number you need from the list below*. *Local rates apply Country Number Internet adress...
-
Page 23: Windows
80637 Munich, Germany 28108, Alcobendas, Madrid, Spain © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse are either registered trademarks or trademarks of Microsoft Corporation in the United States and/ or other countries.
