Belkin OmniView F1DN102D Quick Installation Manual

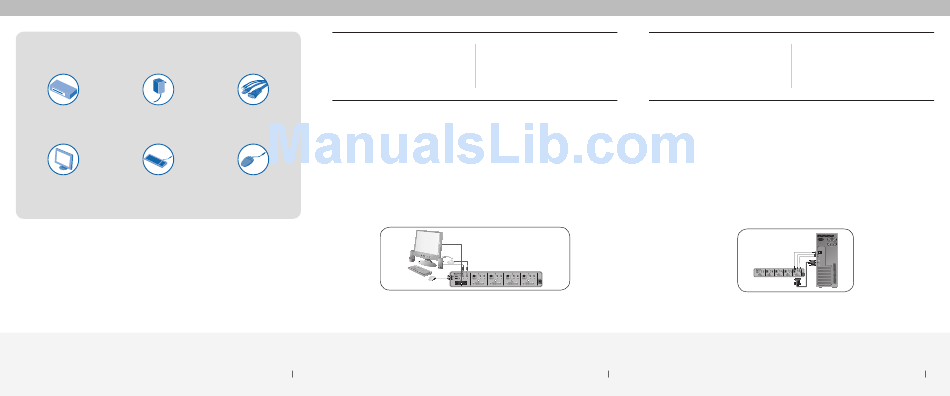

To install the Switch, you will need the following:
OmniView Secure DVI 5V DC, 3A Global
Dual-Link KVM Switch Power Adapter*
(included) (included)
DVI Monitor USB Keyboard
*Includes interchangeable AC plugs for the U.S., U.K., Europe, and Australia.
**XX = cable length in feet
Introduction
This Quick Installation Guide will guide you through the steps needed to install
the OmniView Secure DVI Dual-Link KVM Switch (the Switch). If you have any
problems during this installation, please refer to the User Manual.
Step 1
Belkin DVI/USB KVM
Note:
Before you begin, make sure that all computer equipment and devices are powered
Cable Kits (F1D9201-XX**)
off, and that your USB keyboard and mouse work properly with all your computers.
– 1 per computer
1.1
Connect your monitor to the DVI port on the back of the Switch in the
"User Console" section.
1.2
Connect your keyboard and mouse to the USB ports on the back
of the Switch in the "User Console" section.
USB Mouse
1.3
Connect your speaker and microphone cables into the corresponding
ports in the "User Console" section.
Introduction 1
Connect the Console
to the Switch
2.1
2.2
2.3
2.4
2.5
Connect the Console to the Switch 2
Connect Computers
Step 2
to the Switch
Make sure all computers and the Switch are powered off.
Using the Belkin DVI/USB KVM Cable Kit (F1D9201-XX), connect the male DVI
connector to the monitor port on your computer. Then, connect the other end of
the cable into an available port on the Switch. (Refer to diagram below)
Using the Cable Kit, connect the USB Type-A connector to an available USB port
on your computer. Then, connect the USB Type-B connector to the corresponding
USB port on the Switch. (Refer to diagram below)
Connect the two audio cables (audio and microphone) to your computer. Then,
connect the other end to the corresponding audio and microphone port on the Switch.
Repeat the steps above for each additional USB computer you wish to connect.
Connect Computers to the Switch 3
