Homeowner Comfort and
Contractor Convenience
Spend less time installing thermostats
The Robertshaw ® 9700i2 series thermostat makes
installation easy. With our efficient and menu-driven
Set-up Wizard, you can reduce installation time by
50% over competitive models. Every menu provides
step-by-step instructions so there are no complicated
codes or button combinations to memorize.
Programming is easier for your customers too.
Menus are simple to follow. Plus, there are extra
convenience features such as Automated Time
adjustment for Daylight Saving Time, along with new
indoor air quality reminders.
The 9700i2 series is so user friendly, it sets a
higher standard in efficiency and simplicity for
programmable thermostats. It is truly comfort
made easy.
Robertshaw - Simply the Right Choice
Optional Sensors:
REMOTE INDOOR
9020
i
REMOTE OUTDOOR
9025
i
9701

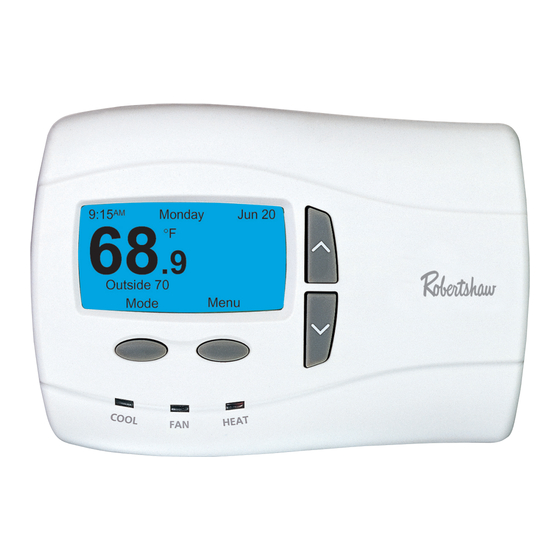

9725
Menu Driven Display
7 Day Programmable with 2, 4 or 6 Events Per Day
9701i2 - 1 Heat / 1 Cool
9725i2 - Universal Staging up to 3 Heat / 2 Cool
Features and Benefits
Daylight Saving Time Adjustment
Automatically adjusts to correct time regardless of seasonal changes.
Adjustable Backlighting
Choose to have backlighting on at all times or only when programming. You
can also adjust the brightness and contrast for improved readability.
Time of Day Zoning
When coupled with a remote sensor (part #9020i), you can control the
temperature in remote locations given different scheduled events.
Three Levels of Security
Secure protection against unwanted changes to the programming
menus, temperature or set-up functions with your own 4-digit PIN.
Auto Changeover
Automatically adjusts between heating and cooling cycles to maintain
optimal comfort.
Worry-Free Memory Storage
Even during power outages, the thermostat maintains set point and
programmed parameters.
™
Adjustable Temperature Offset
Change the displayed temperature from the actual sensed temperature.
Adjustable Temperature Differential
Maintains optimal customer comfort.
Intermittent Fan
Maintains optimal air filtration and circulation with minimal energy use.
An ISO 9001 – 2008 Certified Company
California Title
24 Compliant
2
i
2
i
G
E O
GAS ELECTRIC OIL
Set-up Wizard
Would You Like
To Run the
Helps speed through the installation
Setup Wizard?
process with step-by-step setup and
programming instructions.
No Yes
Trilingual Display Option
Select Language
English
Set to your customers' language of choice –
Español
Français
English, Spanish or French.
Back Next
Convenient Displays
Mon To Sun Program
HEAT COOL
View a full day of programming at once for quick
Wake 6:00 AM 70 78
Morn 8:00 AM 62 85
review or easy adjustment.
Eve 5:00 PM 70 78
Night 10:00 PM 62 82
Select
Exit
Contractor ID Feature
Tech Support
Model 9701i vX.X Set it yourself or custom order with your information
ABC HEAT
pre loaded. Your name and phone number remind
555-1234
ROBERTSHAW
your customers when service is needed.
(800) 445-8299
Back
5
DELUXE SERIES
PROGRAMMABLE
THERMOSTATS
H
HEAT PUMP
Year
Limited
Warranty
24V AC POWERED
