I N T E G R A T E D C O M F O R T S O L U T I O N S
110-737
As an Energy Star partner, Maple Chase has
determined that this thermostat product meets
the Energy Star guidelines for energy efficiency.
Important Safety Information Warning:
•
Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.
•
Read all of the information in this manual before installing or
programming this thermostat.
•
This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.
•
All wiring must conform to local and national building and electrical
codes and ordinances.
•
Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.

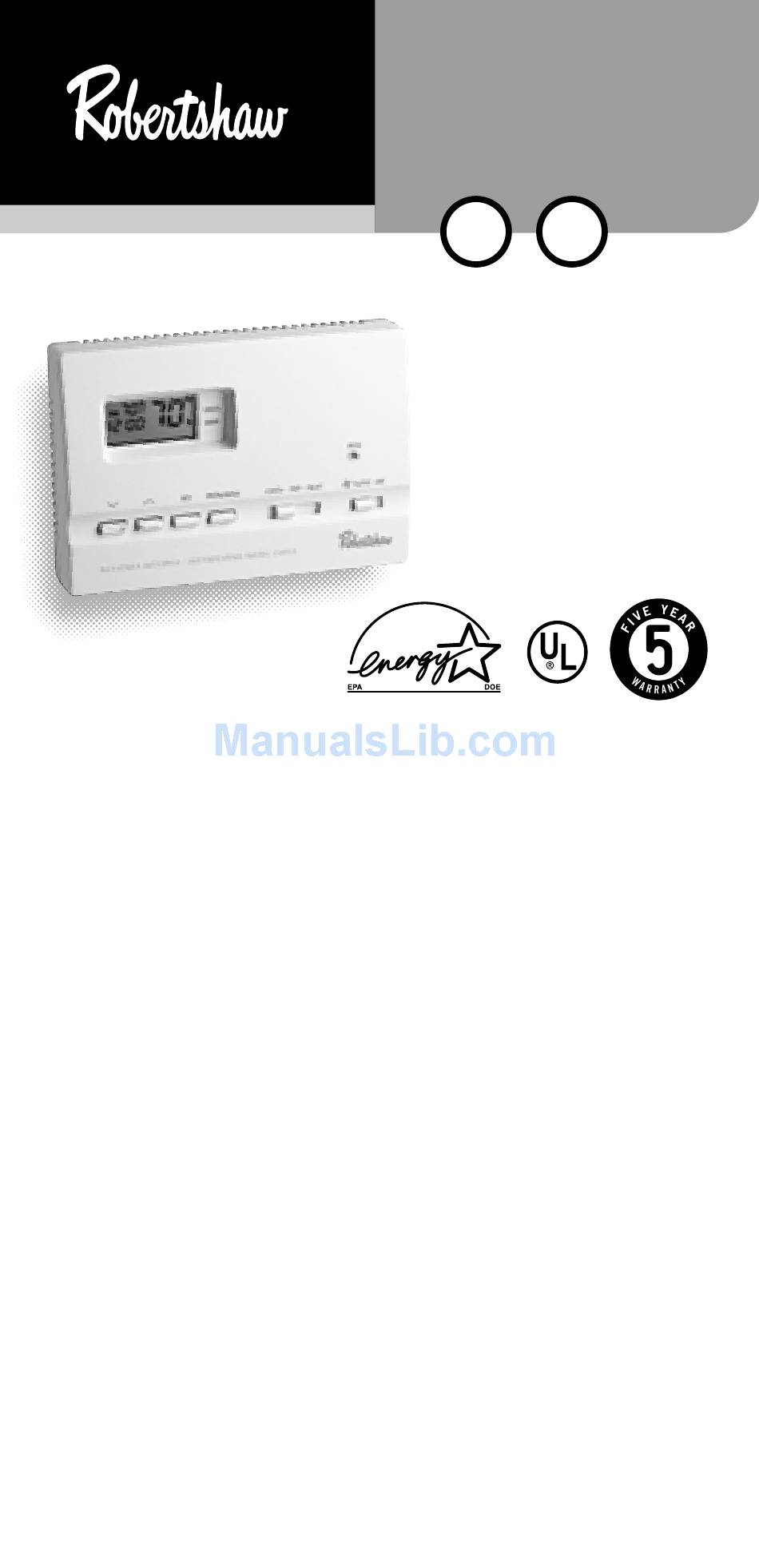

9615
®
™
1
DIGITAL
PROGRAMMABLE
THERMOSTAT
E
G
ELECTRIC
GAS
7 Day Programmable
2 Heat / 2 Cool
User's Manual

Quick Start

Installation and
Programming
©1999 Maple Chase Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9615 and is the answer not in the manual?

Questions and answers

Katie Sloan
May 22, 2025

The batteries died on my Robertshaw 9615 thermostat. I replaced them but cannot set the temp. I leave it at one temp all the time, not programmed. How can I just reset the desired temperature? It's only 61in my house.

0
1 comments:
Mr. Anderson
May 25, 2025

To reset the desired temperature on a Robertshaw 9615 thermostat after replacing the batteries, follow these steps:

1. Reprogram the thermostat, as replacing the batteries may erase previous settings.
2. Make sure the thermostat is in either HEAT or COOL mode.
3. Use the programming steps to set the desired temperature for each time period and day.
4. If you want the same temperature all the time, set the same value for all time periods and days.

Pressing the RESET button will also clear programming, so reprogramming is required afterward.

This answer is automatically generated

0

Related Manuals for Robertshaw 9615

Summary of Contents for Robertshaw 9615

  • Page 1: Quick Start

    9615 DIGITAL PROGRAMMABLE THERMOSTAT ® ™ I N T E G R A T E D C O M F O R T S O L U T I O N S ELECTRIC 7 Day Programmable 2 Heat / 2 Cool User’s Manual...

  • Page 2: Replacing Existing Thermostat

    Features • Four pre-programmed Energy Star setpoints for each day of the week • Quickset™ programming for quickly programming all days of the week simultaneously • Energy Efficient Recovery (EER™) • Residual cooling for added air-conditioning efficiency • Two “AA” ENERGIZER brand batteries retain program memory, even during power outages •...

  • Page 3: Installation

    FIGURE 1 Installing Item 9615 Thermostat NOTE: F , 4-5 OR NEW INSTALLATIONS MOUNT THERMOSTAT ON INSIDE WALL FEET ABOVE THE FLOOR O NOT INSTALL BEHIND A DOOR IN A CORNER NEAR AIR VENTS IN DIRECT SUNLIGHT OR NEAR ANY HEAT OR STEAM GENERATING FIX...
  • Page 4 FIGURE 3 MOUNTING HOLES PROG MORN DAY EVE NITE EER CHANGE PROG/MAN COOL OFF HEAT FAN AUTO ON 7. Drill the marked holes using a 3/16" drill bit. NOTE: Enclosed plastic anchors do not require a drilled hole for drywall. 8.

  • Page 5: Programming Guide

    Programming Guide Set Time of Day, Day of Week, Temperature Differential, Residual Cooling 1. Press SET & PROG/MAN. Release simultaneously. SET PROG/MAN PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON Press to change Time of Day. 2. Press Press 1=MO SET P 2=TU To Change 3=WE...

  • Page 6: Changing Fahrenheit (F) To Celsius (C)

    5. Press Press SET P To change Residual Cooling NOTE: T HE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN 30, 60 ADDITIONAL SECONDS AFTER THE COMPRESSOR CYCLES OFF HE RESIDUAL OOL FEATURE CAN ONLY BE SET IN THE OOL MODE Changing Fahrenheit (F) to Celsius (C) Press and Hold SET...
  • Page 7 4. Press SET. SET PR PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON 5. Press to change MORN temperature. 6. Repeat Steps 2-5 for DAY, EVE, and NITE. 7. Repeat steps 2–6 above to program COOL-OFF-HEAT any other day of the week. 8.

  • Page 8: Reset

    Energy Efficient Recovery EER™ EER™ allows your system to operate at peak efficiency for optimal energy savings. EER™ looks up to 2 hours prior to the end of a set-back period to begin monitoring system performance and determine the most efficient time to turn on your system.

  • Page 9: To Test Thermostat

    To Test Thermostat WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYSTEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY. CAUTION: D 50°F (10°C). T O NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW HIS CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY COOL-OFF-HEAT...

  • Page 10: Troubleshooting

    Troubleshooting SYMPTOM REMEDY Thermostat does not turn Check Wiring. on system. (See “INSTALLATION.”) Check fuse. Replace with 3 amp fuse if fuse has opened. Five minute compressor short cycle protection may be in effect. Press RESET to override. NOTE: This will erase programming.

  • Page 11: Wiring Diagrams

    Wiring Diagrams The following is just a sample of the most common types of HVAC sys- tems. Refer to your system’s installation manual for wiring information. Robertshaw 9615 Multi-Stage Thermostat Y1 W1 Y/Y1 2 Stage Heat / 1 Stage Cool...
  • Page 12 Maple Chase Company warrants to the original contractor installer, or to the original consumer user, each new Robertshaw thermostat to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase. This warranty does not cover batteries, damage caused by batteries, damage resulting from improper installation, alteration, misuse or abuse of the thermostat occurring after the date of purchase.
