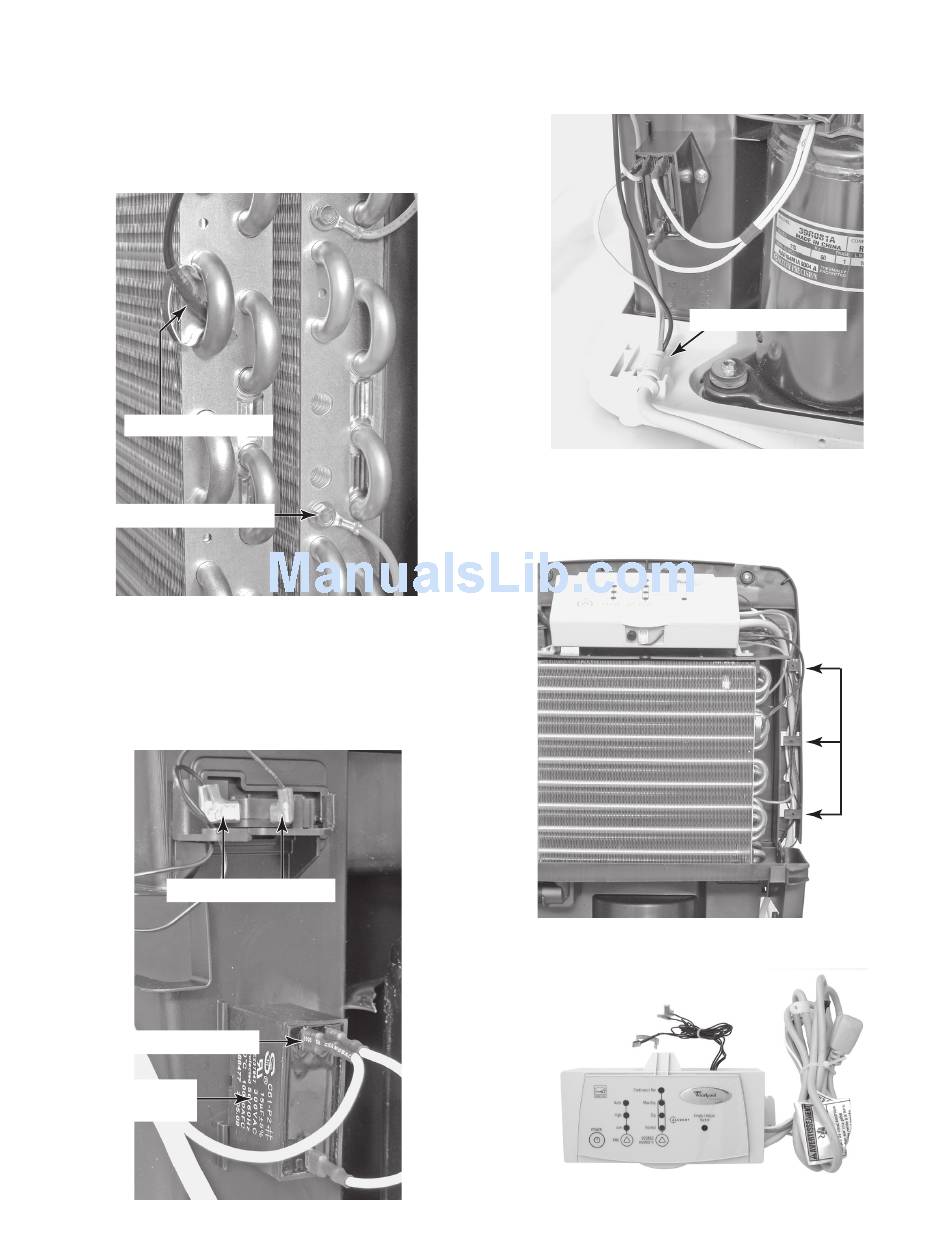

5. Unclip the thermistor from the tubing and
remove it. NOTE: Do not remove the
thermistor from the clip.
6. Remove the hex-head screw from the
green ground wire.
Thermistor & Clip
Ground Wire Screw
7. On the rear of the unit, disconnect the
two wires from the bucket switch termi-
nals and unclip the wires.
8. Disconnect the indicated white control wire
from the compressor capacitor terminal.
Bucket Switch Wires
White Control Wire
Compressor
Capacitor
9. Remove the power supply cord from the
cabinet.
10. Remove the wiring from the three tabs,
and remove the electronic control as-
sembly from the dehumidifier.
Electronic Control Assembly
3-5
Power Supply Cord
Wire
Tabs
