REMOVING THE FAN CAPACITOR AND THE FAN MOTOR

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dehumidifier or disconnect power.
2. Remove the cabinet from the dehumidi-
fier (see page 3-2 for the procedure).

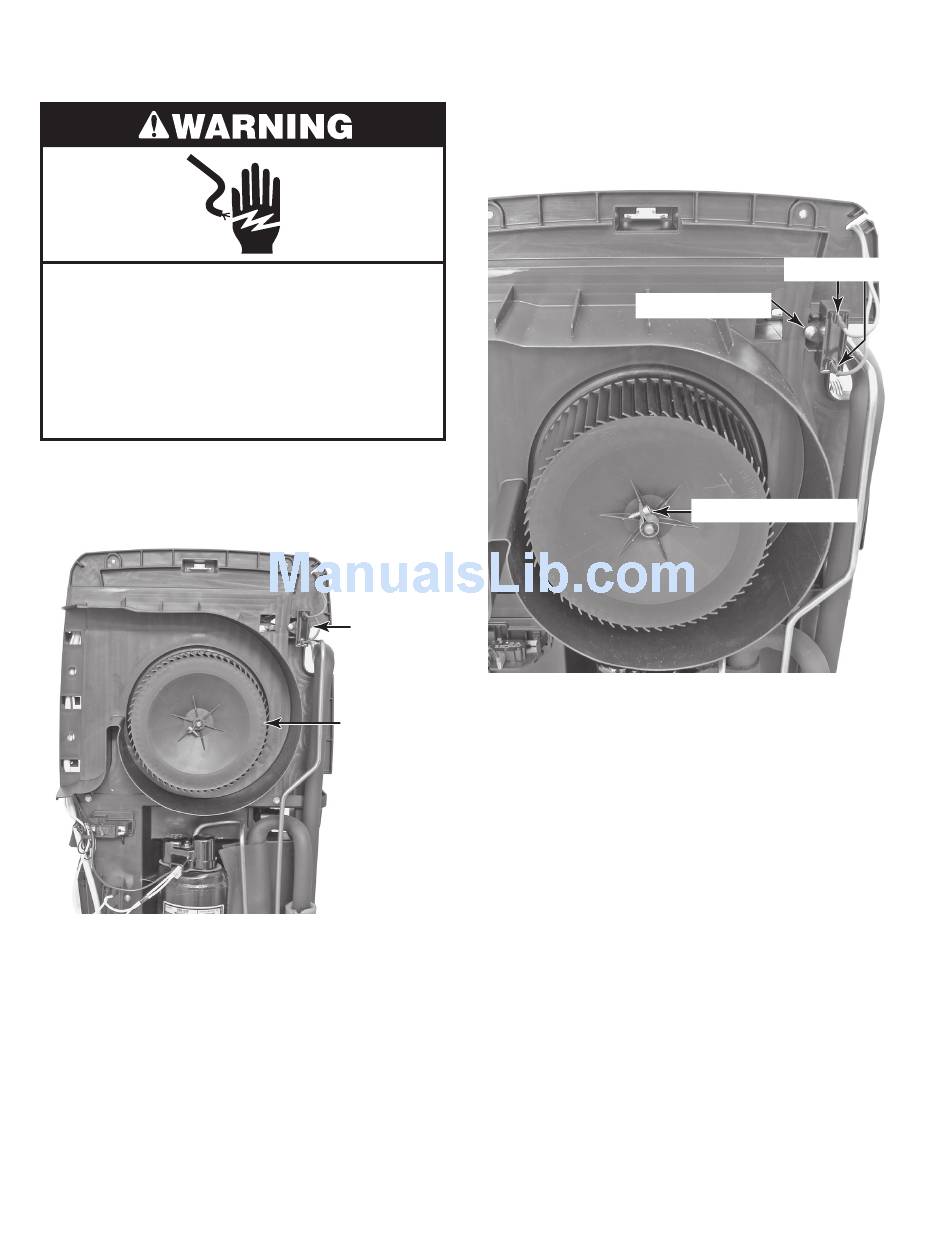

3. To remove the fan capacitor (see the
top right photo):
a) IMPORTANT: Discharge the capacitor
by touching the leads of a 20,000 ohm
resistor to the capacitor terminals.
b) Disconnect the two wires from the ca-
pacitor terminals.
c) Remove the screw from the capacitor.
4. To remove the fan motor:
a) Loosen the T-20 Torx screw and pull
Fan
Capacitor
b) Disconnect the fan motor wires at the
Fan Motor
3-8
the blower off the fan motor shaft.
Capacitor Screw
Blower Clamp Screw
following locations:
• Two brown wires from the fan ca-
pacitor terminals (see above).
• Electronic Models: Black, orange,
and white wires from the electronic
control terminals (see page 3-4).
• Mechanical Type 1 Models: Black
and white wires from the humidistat
and light terminals (see page 3-6).
• Mechanical Type 2 Models: Black
and orange wires from the fan
switch terminals (not shown). White
wire from the light terminal.
Brown Wires
