Page 1: Installation Guide
MicroTouch ™ ™ Display C1700SS Installation Guide Read and understand all safety information contained in this document before using this product. 3M Touch Systems Proprietary Information... - Page 2 3M Touch Systems, Inc. warranty, then 3M Touch Systems, Inc. sole obligation and User’s and Purchaser’s exclusive remedy, will be, at 3M Touch Systems, Inc. option, to repair or replace that Product quantity or software media or to refund its purchase price.
-
Page 3: Table Of Contents
3M™ MicroTouch™ Display C1700SS Installation Guide Contents Chapter 1 Overview Important Safety Information ..................5 Important Notes......................7 Service and Repair Indicators..................7 3M Touch Systems Support Services................7 Contact 3M Touch Systems ..................8 Chapter 2 Introduction to Flat-Panel Displays Overview ........................9 Video Resolution on a Flat-Panel Display ..............10... - Page 4 3M™ MicroTouch™ Display C1700SS Installation Guide Chapter 5 Maintenance and Troubleshooting Maintaining Your Touch Display................21 Touch Sensor Care and Cleaning ................21 Display Installation Problems ...................22 Troubleshooting the Touch Sensor................23 Power Management....................23 Regulatory Agency Approvals ..................23 3M Touch Systems Proprietary Information...
-
Page 5: Chapter 1 Overview
CHAPTER 1 Overview Congratulations on the purchase of your touch display, and welcome to the world of 3M Touch Systems — a world where using a computer is as simple as touching the sensor. This guide describes how to set up your 3M MicroTouch Display C1700SS. - Page 6 Refer to http://www.nema.org/lamprecycle/ or call 3M Touch Systems 1-866-407-6666 for further information. • Dispose of the flat panel display according to applicable governmental regulations...
-
Page 7: Important Notes
The power cable or plug is damaged or frayed. 3M Touch Systems Support Services 3M Touch Systems, Inc. provides extensive support services through our website and technical support organization. Visit the 3M Touch Systems website at http://www.3Mtouch.com/, where you can download touch sensor software and drivers, obtain regularly updated technical documentation on 3M Touch Systems products, and learn more about our company. -
Page 8: Contact 3M Touch Systems
5:30 p.m. until 8:00 p.m. US Eastern Standard Time – 9 a.m. to 5 p.m. throughout Europe. You can contact 3M Touch Systems, Inc. Technical Support (US only -- Eastern Standard Time) by calling the hot line, sending email or a fax. -
Page 9: Chapter 2 Introduction To Flat-Panel Displays

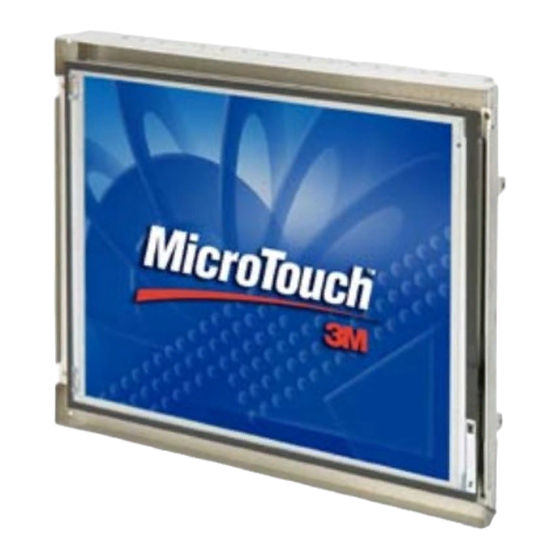

CHAPTER 2 Introduction to Flat-Panel Displays Overview The 3M Touch Systems product line of Flat-Panel Displays offers the C1700SS Display for kiosk, ATM, and industrial enclosures. All CS1700SS Displays are encased in rugged metal instead of plastic. The C1700SS Display features a touch sensor interface, several mounting options, and sturdy construction. -
Page 10: Video Resolution On A Flat-Panel Display
Options for Using Other Video Resolutions The 3M™ MicroTouch™ C1700SS Display supports all standard resolutions up to their respective native resolution for display setup. Many video cards initially display a screen image at the SVGA or VGA resolution. By supporting these resolutions, the display can display the desktop controls that let you change to the optimal resolution of 1280 x 1024. -
Page 11: Chapter 3 Setting Up Your C1700Ss Display
3M™ MicroTouch™ Display C1700SS Installation Guide CHAPTER 3 Setting Up Your C1700SS Display This chapter describes how to set up and integrate your 3M™ MicroTouch™ C1700SS Display into a touch application. You need to complete the following tasks: • Unpack the components •... -
Page 12: Unpacking Your Touch Display
The display does not have a bezel to act as an interface with a front mounting surface. If you need a bezel as a mounting interface, it may be purchased from 3M Touch Systems. Please contact your sales representative. -
Page 13: Access To The Video Controls
3M™ MicroTouch™ Display C1700SS Installation Guide Access to the Video Controls The controls for adjusting the video display are located on the back of the C1700SS Display. These buttons let you display the on-screen menu and adjust the phase, image position, contrast, and brightness. -
Page 14: Configuring The Display Settings
3M™ MicroTouch™ Display C1700SS Installation Guide Table 1. Applicable Display Mode and Refresh Rate Display Mode Refresh Rate (Hz) VGA (640 x 480) SVGA (800 x 600) XGA (1024 x 768) SXGA (1280 x 1024) Table 2. Frequency Range Size... -
Page 15: Testing The C1700Ss Display
3M™ MicroTouch™ Display C1700SS Installation Guide Connect one end of the video cable to the video connector on the display. Connect the other end to the video card in your computer. Connect one end of the touch sensor cable (either serial or USB) to the display. -
Page 16: Calibrating The Touch Sensor
3M™ MicroTouch™ Display C1700SS Installation Guide Controllers MT 7 All current controllers (serial and USB) TouchWare EX II series Serial resistive series (Legacy) MicroTouch software includes the touch sensor driver and control panel that enables your touch sensor to work with your computer. Once the software is installed, restart your computer to load and activate the touch sensor driver. -
Page 17: Chapter 4 Adjusting The Video Display
3M™ MicroTouch™ Display C1700SS Installation Guide CHAPTER 4 Adjusting the Video Display Your C1700SS Display has several control buttons and an on-screen menu for adjusting the video display. For example: • You can adjust the pixel clock and phase to eliminate noise. -
Page 18: Osd Controls
3M™ MicroTouch™ Display C1700SS Installation Guide There is also a STANDBY button next to the LED that can be used to put the display into standby mode. OSD Controls Pressing MENU will pull up the On Screen Display menu, as shown below. - Page 19 3M™ MicroTouch™ Display C1700SS Installation Guide Frequency Setting If the Frequency setting of your image is not fine-tuned, you may observe periodic vertical bars of video noise. These bars of noise are usually adjusted out when an Auto Adjust is performed. If the bars of noise are still present, this setting can be adjusted manually.
-
Page 20: Color Temperature
3M™ MicroTouch™ Display C1700SS Installation Guide The utility sub-menu will supply information on the current video signal being received. It will also allow you to reset the display to the factory default video settings. If you wish to do this, select the reset option. There is an option to disable the Display Power Management System (DPMS) power saving of the display. -
Page 21: Chapter 5 Maintenance And Troubleshooting
If you have a problem setting up or using your display, you may be able to solve it yourself. Before calling 3M Touch Systems, try the suggested actions that are appropriate to the problems you are experiencing with the display. You may also want to consult your video card user’s manual for additional troubleshooting advice. -
Page 22: Display Installation Problems
3M™ MicroTouch™ Display C1700SS Installation Guide Display Installation Problems No image displayed Is the display receiving power? • Check that the computer’s power cable is connected properly and securely into a (blank screen) grounded electrical outlet. • Check that the AC/DC power supply is firmly plugged into the display. Check that the LED is showing green on the AC/DC power supply. -
Page 23: Troubleshooting The Touch Sensor
3M™ MicroTouch™ Display C1700SS Installation Guide Troubleshooting the Touch Sensor If you are experiencing problems with the touch sensor, check the following list of common installation errors. Table 3. Common Touch Sensor Installation Issues Common Installation Possible Solutions Issues • Review the installation procedures. Are all cables connected... - Page 24 Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. 3M Touch Systems is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.
