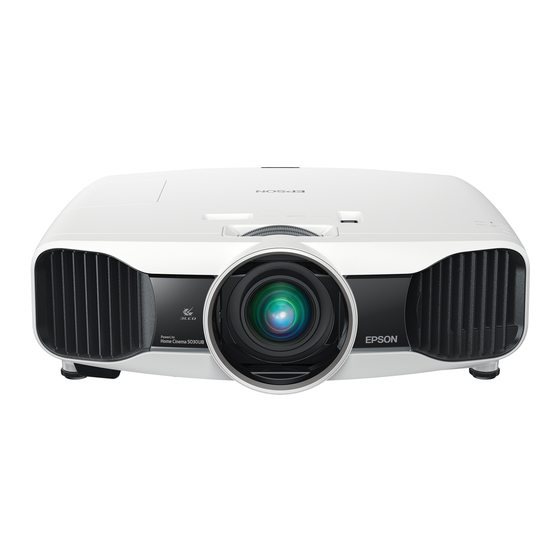

Epson PowerLite Home Cinema 5030UB Quick Setup

PowerLite Home Cinema 5030UB/5030UBe
®
PowerLite Pro Cinema 4030/6030UB
®

Quick Setup

Before using the projector, make sure you read the safety instructions in the
online User's Guide.

Choose a location

Keep the projector level and place it at a height so its lens is even with the
top or bottom of the screen and is centered horizontally. If this isn't possible,
use the lens shift dials or the keystone correction buttons on the projector to
reposition the image (see "Adjust the image").
In order to view 3D images correctly, RF 3D glasses must be worn within 32 feet
(10 m) of the projector. Use the image below to determine the viewing distance
for 3D projection (the shading represents the 3D viewing area):
See the online User's Guide for more information on where to place your
projector.
Connect the projector
Choose from the following connections. For additional connection types, see
the online User's Guide.

Video device

Connect up to 4 video devices and use the Source buttons on the remote
control or the button on the projector to switch between them.
WirelessHD (PowerLite Home Cinema 5030UBe only)
Follow these steps to set up the included WirelessHD Transmitter.
1
Place the transmitter within 32 feet (10 m) of the projector. Make sure the
front of the transmitter faces the front of the projector. See the online
User's Guide for more information on the WirelessHD transmission range.
Note: Do not place the transmitter on a metal surface, as this may
interfere with the signal. Make sure there are no obstructions between
the transmitter and the projector.
HDMI cable
RCA video cable
Component video cable
2
Plug the AC adapter into the transmitter and a wall outlet.
3
Connect the HDMI cables to your video input devices and the HDMI ports
on the side and back of the WirelessHD Transmitter. You can connect up
to five input devices to the transmitter. See "Viewing WirelessHD content"
for information on switching between input sources
Note: You can connect tablets, smartphones and other devices that
support the MHL™ standard to the HDMI port on the side of the
WirelessHD Transmitter. Devices that use MHL connection include the
Samsung™ Galaxy Note II™ and the Roku
devices may require an adapter or may not require an MHL cable.
Not all features or functions may be supported. Check your device's
documentation for more information.
4
To use the transmitter as a pass-through device to a television or other
display, connect an HDMI cable to the display device and the HDMI output
port on the rear of the transmitter. See "Viewing WirelessHD content" for
information on switching between wireless and wired display modes.
Connect audio
Connect your device's audio output to your home theater receiver or powered
speakers.
Home theater system
Surround sound
Powered speakers
External speakers Video source
Note: See your home theater receiver documentation for more information
on connections.
Streaming Stick™. Some
®
Video source
Video cable
Receiver Projector
Video cable
Projector
