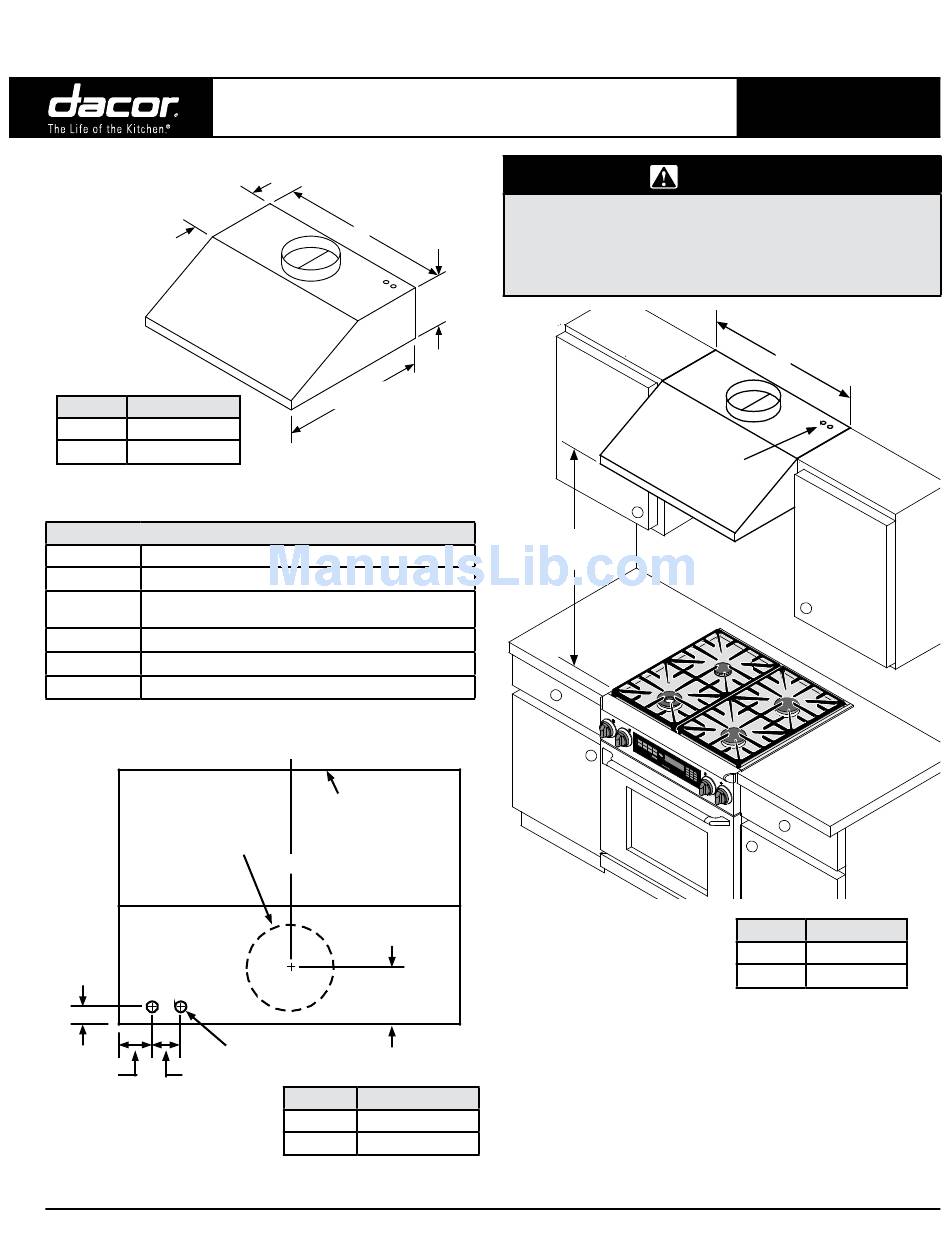

Dacor DH3606 Planning Manual

Document # PG07-007
All tolerances: ±1/16" (±1.6 mm), unless otherwise stated
11 7/8 "
(30.2 cm)
Model Dimension (a)
DH3006S 29 7/8" (75.9 cm)
DH3606S 35 7/8" (91.1 cm)
OvERALL DIMENsIONs
Filters 2 mesh (baffle type optional, order kit # AHBF2)
Exhaust 8-inch
Total Connect
120 Vac, 60 Hz, 2 Amp. Max. (10.0 Amp Max. surge)
Load
Lights 2, 120 Vac, 75 W each halogen
Fan Rating* 340 CFM @ high setting, 275 CFM @ low setting
Weight DH3006S: 31 lbs. (14.1 kg) DH3606S: 34 lbs. (15.4 kg)
* At zero inches static pressure. Tested with 20 feet of
straight duct. Consult your local building department for any
make up air requirements.
Standard 8" duct
connection
1 1/2"
(3.8 cm)
B 3"
(7.6 cm)
All specifications subject to change without notice.
Distinctive™ 30" Wide
Wall Mount Range Hood
A
23 5/8"
(60.0 cm)
Specifications
Front of
hood
C L
6 1/8 "
(15.6 cm)
Electrical access holes,
7/8" dia. (5.1 cm)
Model Dimension (B)
DH3006S 4 1/8" (10.5 cm)
DH3606S 6 9/16" (16.7 cm)
TOP DIMENsIONs
DH
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
6"
(15.2 cm)
25" min.*
(63.5 cm)
*Above cooking surface
*Above cooking surface
■ Maximum cooking appliance width: 30 inches for DH3006S, 36 inches
for DH3606S.
■ The exhaust duct and electrical wiring are connected from the top of
the hood.
■ The hood must be centered horizontally over the cooktop/range.
■ Cabinet storage space located directly above the range should be
avoided.
www.dacor.com
Revised 05/22/13 Page 1/2
PLANNING
GUIDE
warning
C
Electrical
access
Model Dimension (C)
DH3006S 30" (76.2 cm)
DH3606S 36" (91.4 cm)
CAbINET LAyOUT
Phone: (800) 793-0093
