INSTALLATION

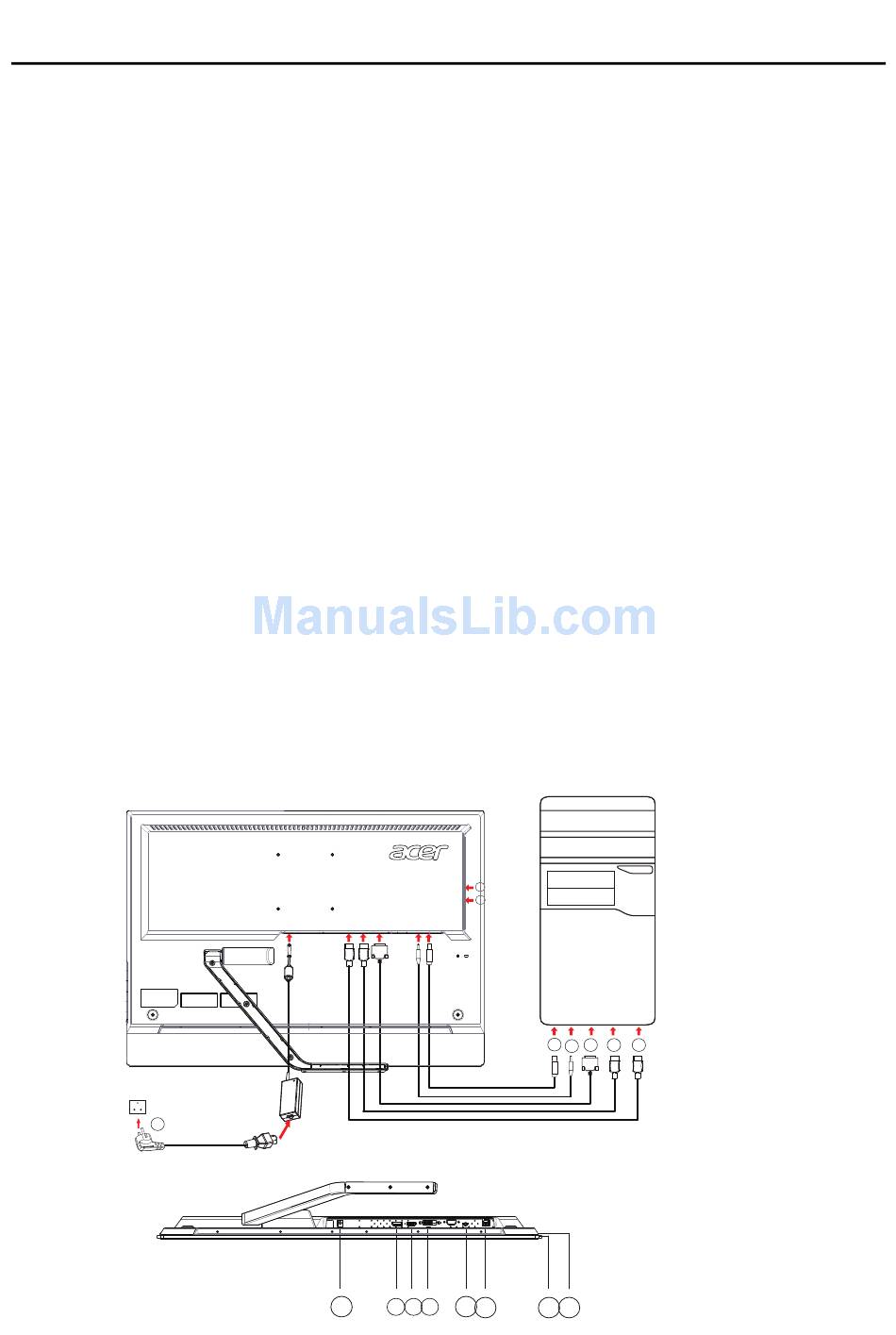

To install the monitor to your host system, please follow the steps as given
below:
Steps
Connect Digital Cable (Only Dual-Input Model)
1.
1-1
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the computer's port.
1-2
Connect HDMI Cable (Only HDMI-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.
1-3 Connect DP Cable (Only DP -Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.
2. 2-1
Connect the USB Cable(Optional)
2-2 Connect the USB 3.0 cable to port for fast charge.
2-3 Connect the USB 3.0 cable to port .
3.Connect the Audio Cable(Only Audio-Input Model)(Optional)
4. Connect
power adapter and power cord
Connect the pow
a properly grounded AC outlet.
5. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
6. If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
4
er adapter and power cord
DVI
DP
HDMI
4
1-3
1-2
to the monitor, then to
2-2
USB3.0 port
-supporting fast charge
2-3
USB3.0 port
USB
3
2-1
1-1
USB
3
2-1
2-3 2-2
1-1
EN-12
1-2
1-3
DVI
HDMI
DP
